Pinpoint Test E: Electronic Pressure Control (EPC) Solenoid

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Transmission Vehicle Harness Connector illustration.

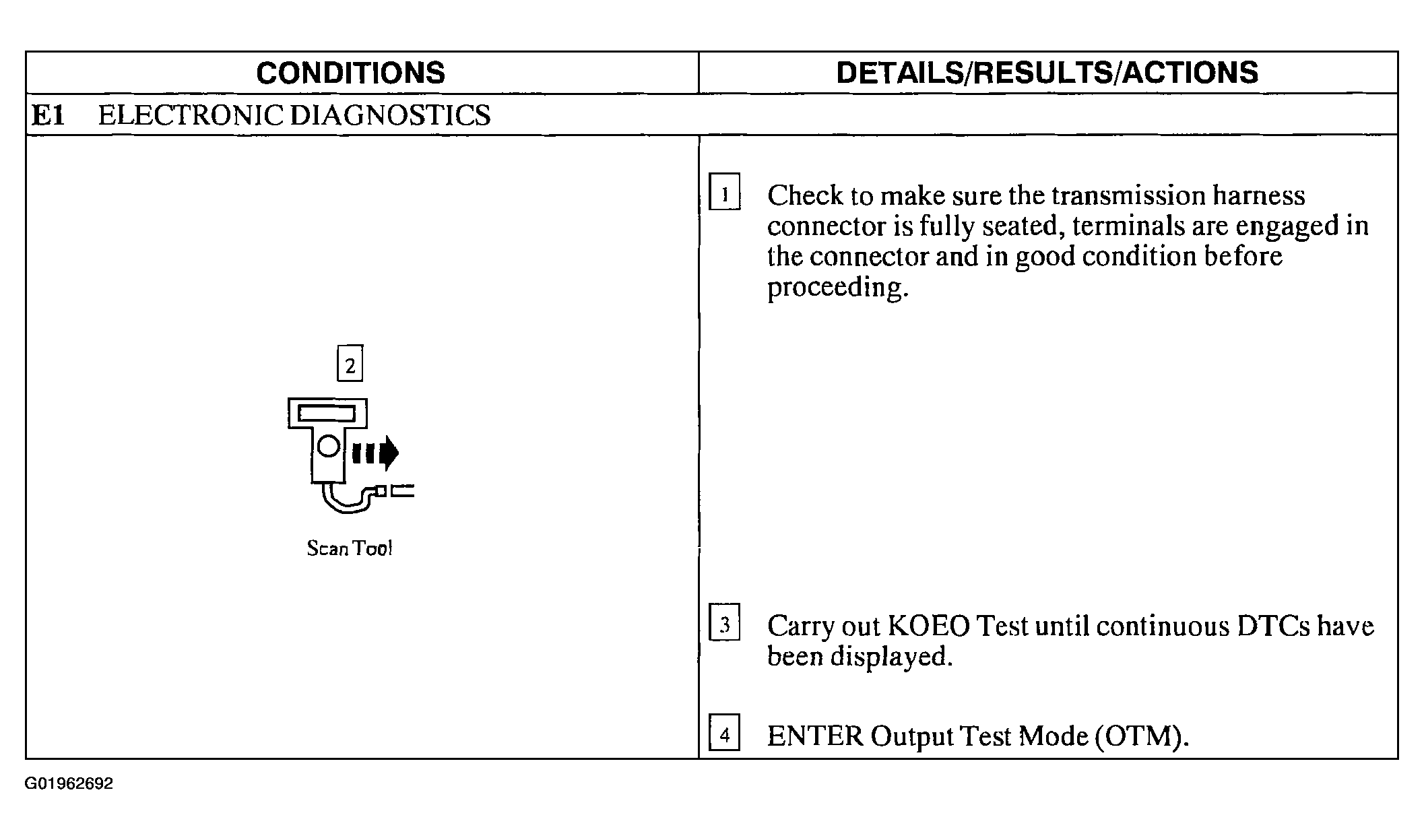

Fig 1: Pinpoint Test E: Electronic Pressure Control (EPC) Solenoid (1 Of 7)

G01962692

Courtesy of FORD MOTOR CO.

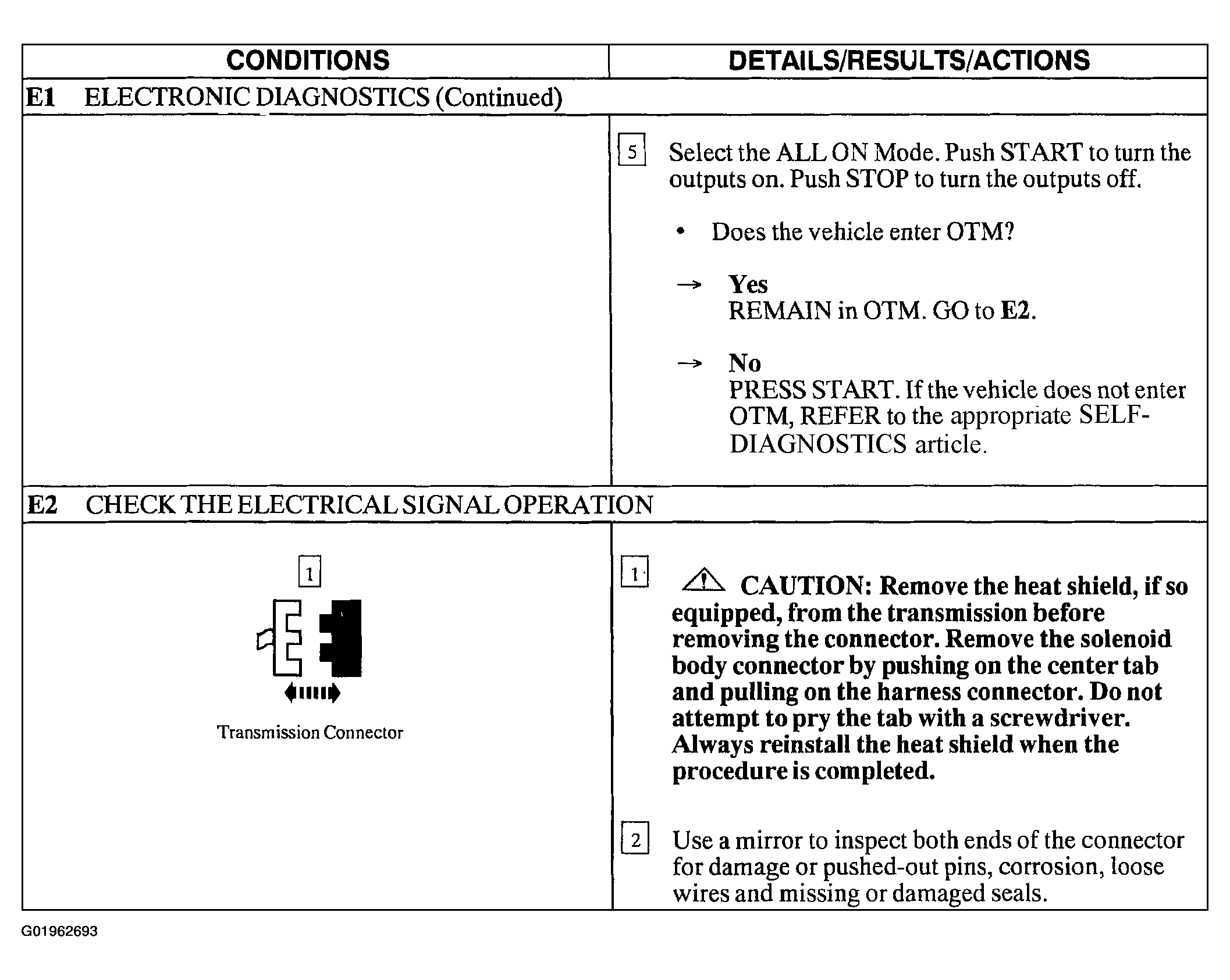

Fig 2: Pinpoint Test E: Electronic Pressure Control (EPC) Solenoid (2 Of 7)

G01962693

Courtesy of FORD MOTOR CO.

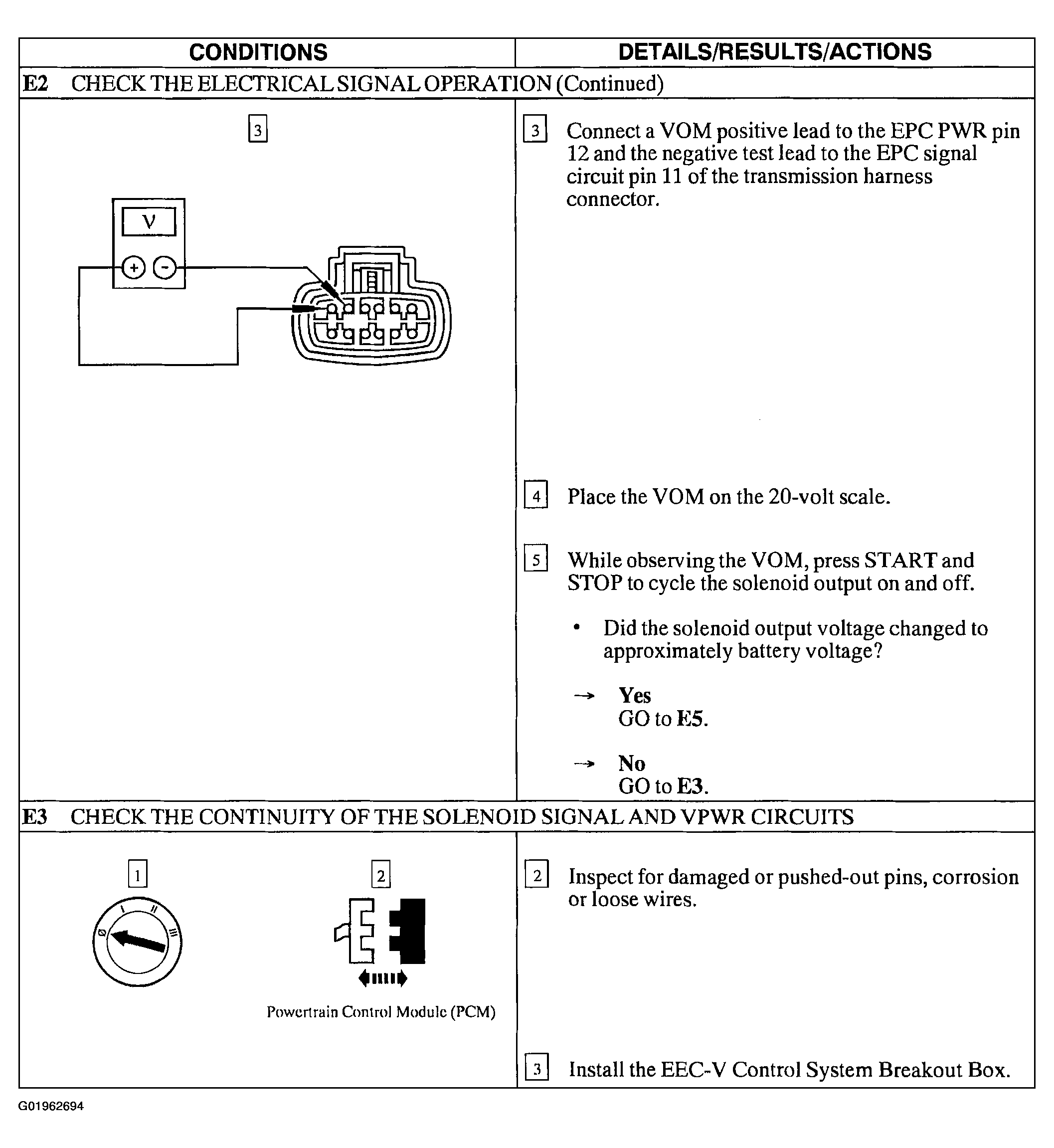

Fig 3: Pinpoint Test E: Electronic Pressure Control (EPC) Solenoid (3 Of 7)

G01962694

Courtesy of FORD MOTOR CO.

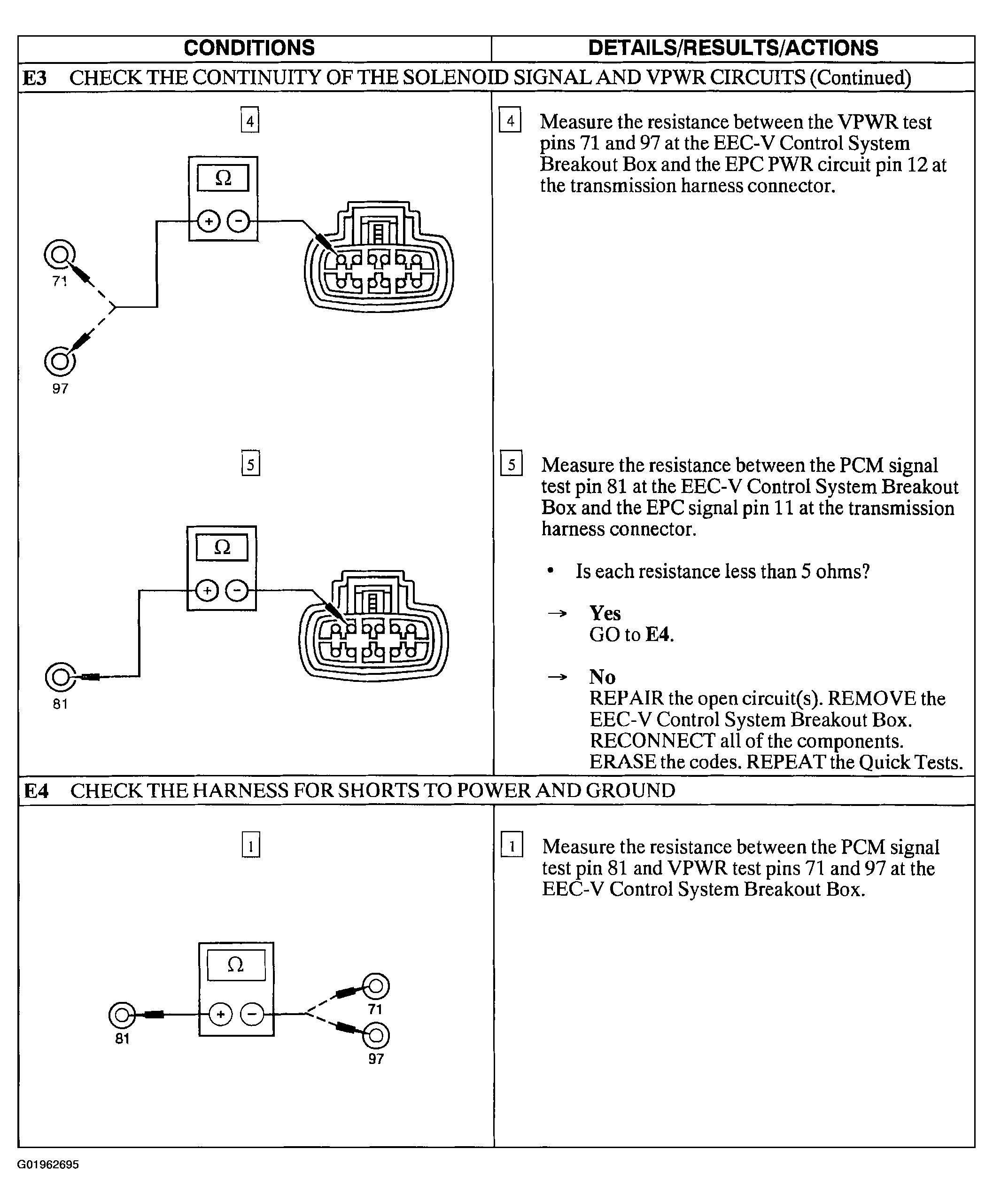

Fig 4: Pinpoint Test E: Electronic Pressure Control (EPC) Solenoid (4 Of 7)

G01962695

Courtesy of FORD MOTOR CO.

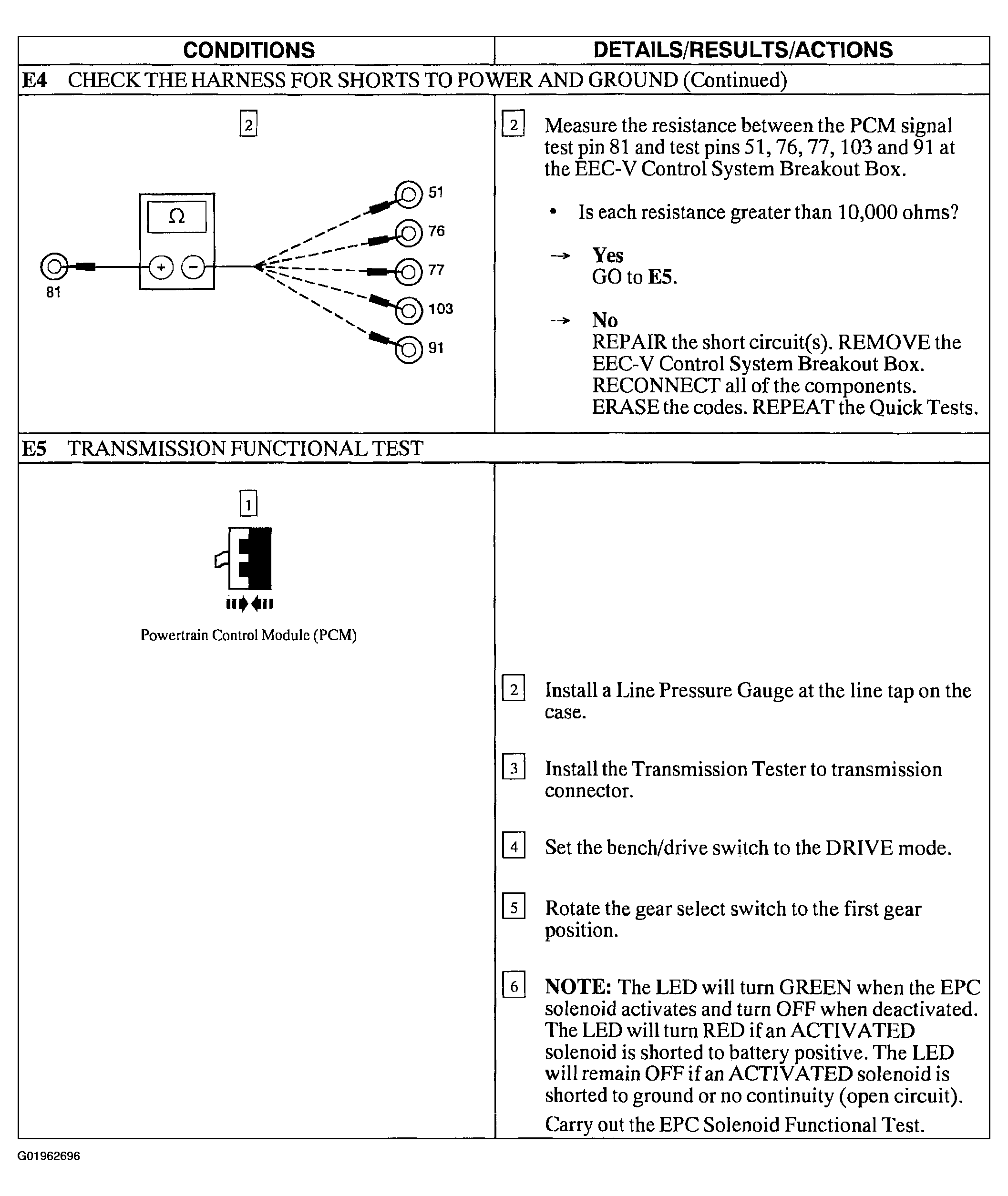

Fig 5: Pinpoint Test E: Electronic Pressure Control (EPC) Solenoid (5 Of 7)

G01962696

Courtesy of FORD MOTOR CO.

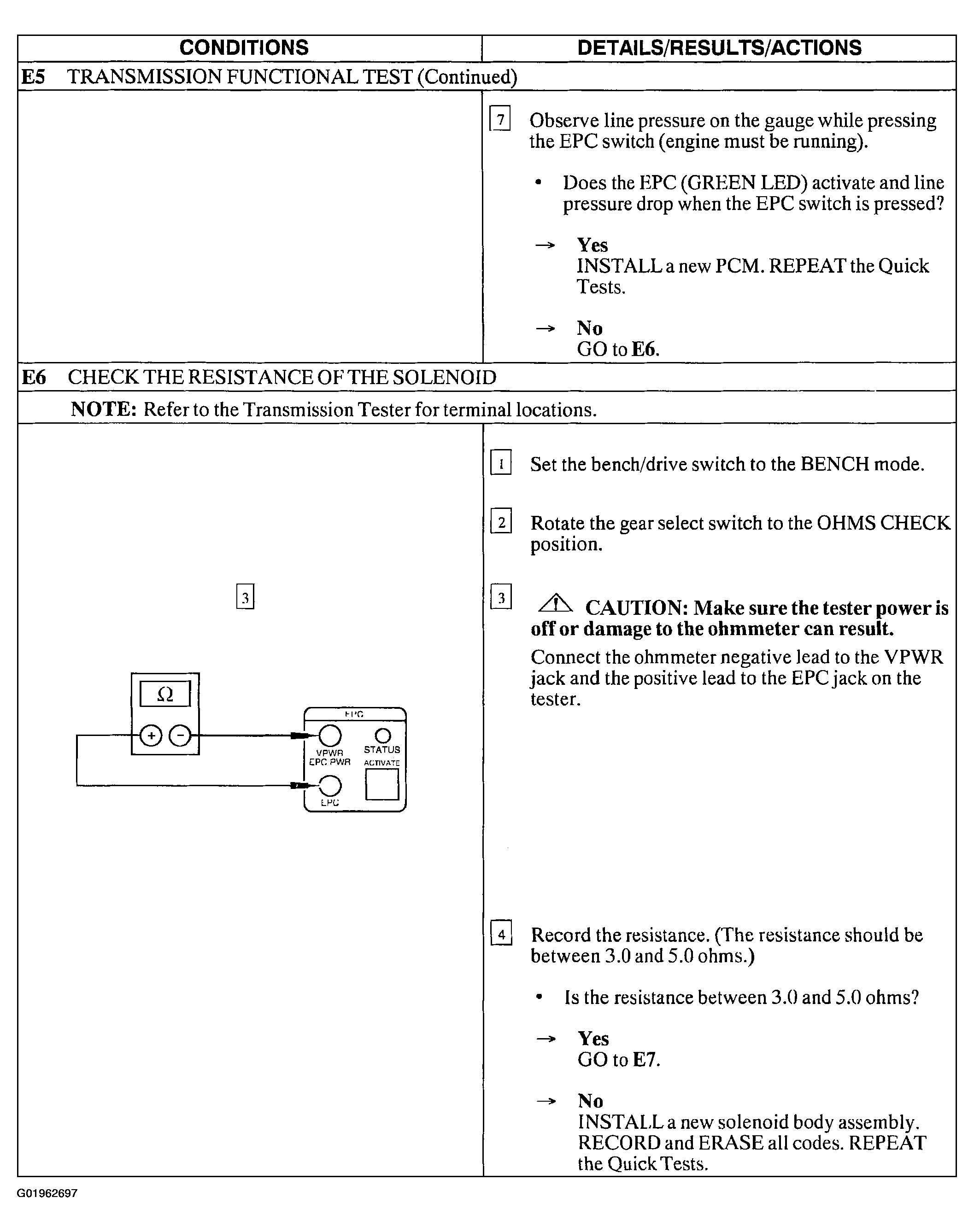

Fig 6: Pinpoint Test E: Electronic Pressure Control (EPC) Solenoid (6 Of 7)

G01962697

Courtesy of FORD MOTOR CO.

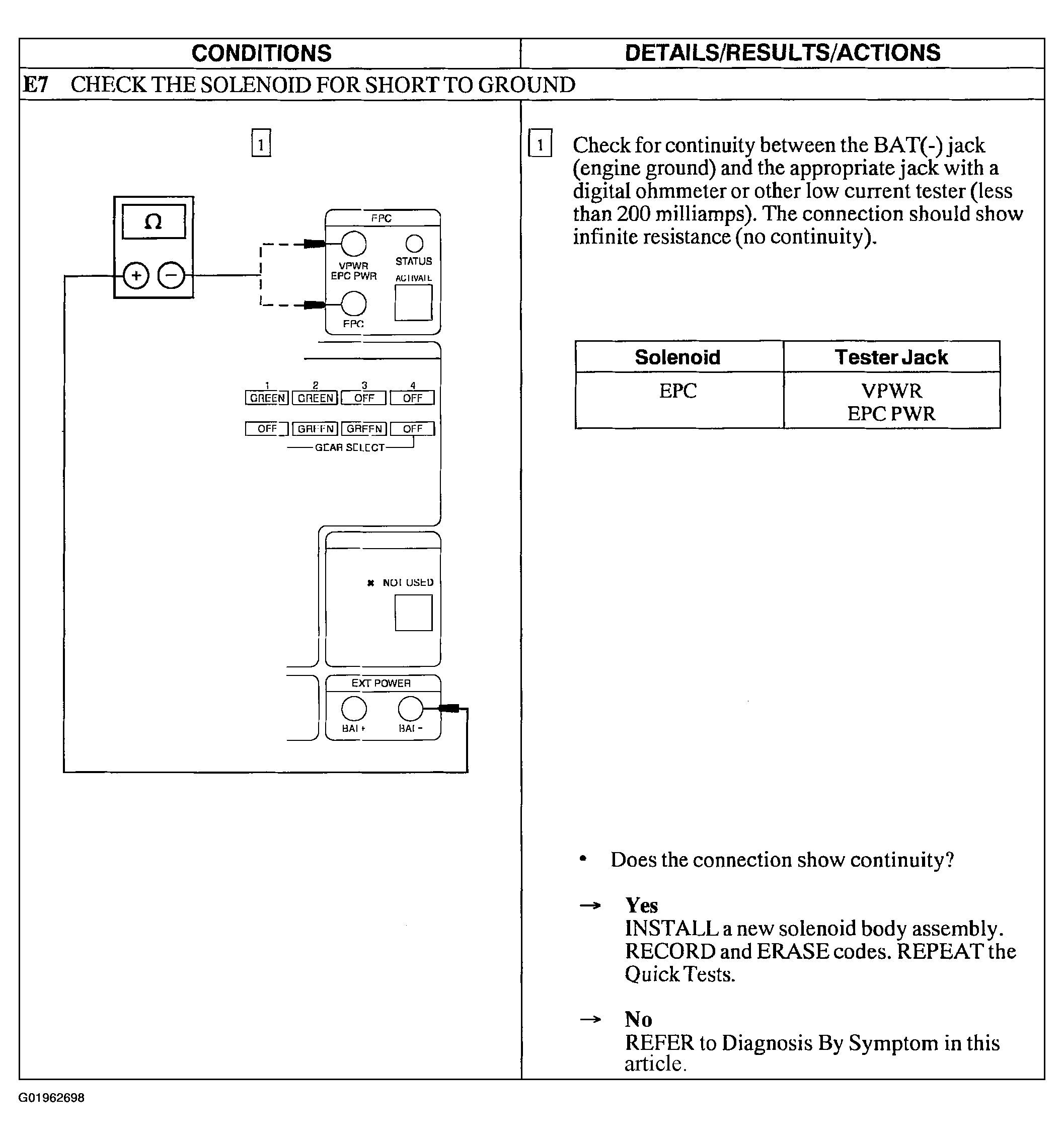

Fig 7: Pinpoint Test E: Electronic Pressure Control (EPC) Solenoid (7 Of 7)

G01962698

Courtesy of FORD MOTOR CO.
