Pinpoint Test D: Digital Transmission Range (Tr) Sensor

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Digital Transmission Range (TR) Sensor Connector illustration.

NOTE: Refer to the Digital Transmission Range (TR) Sensor Diagnosis Chart .

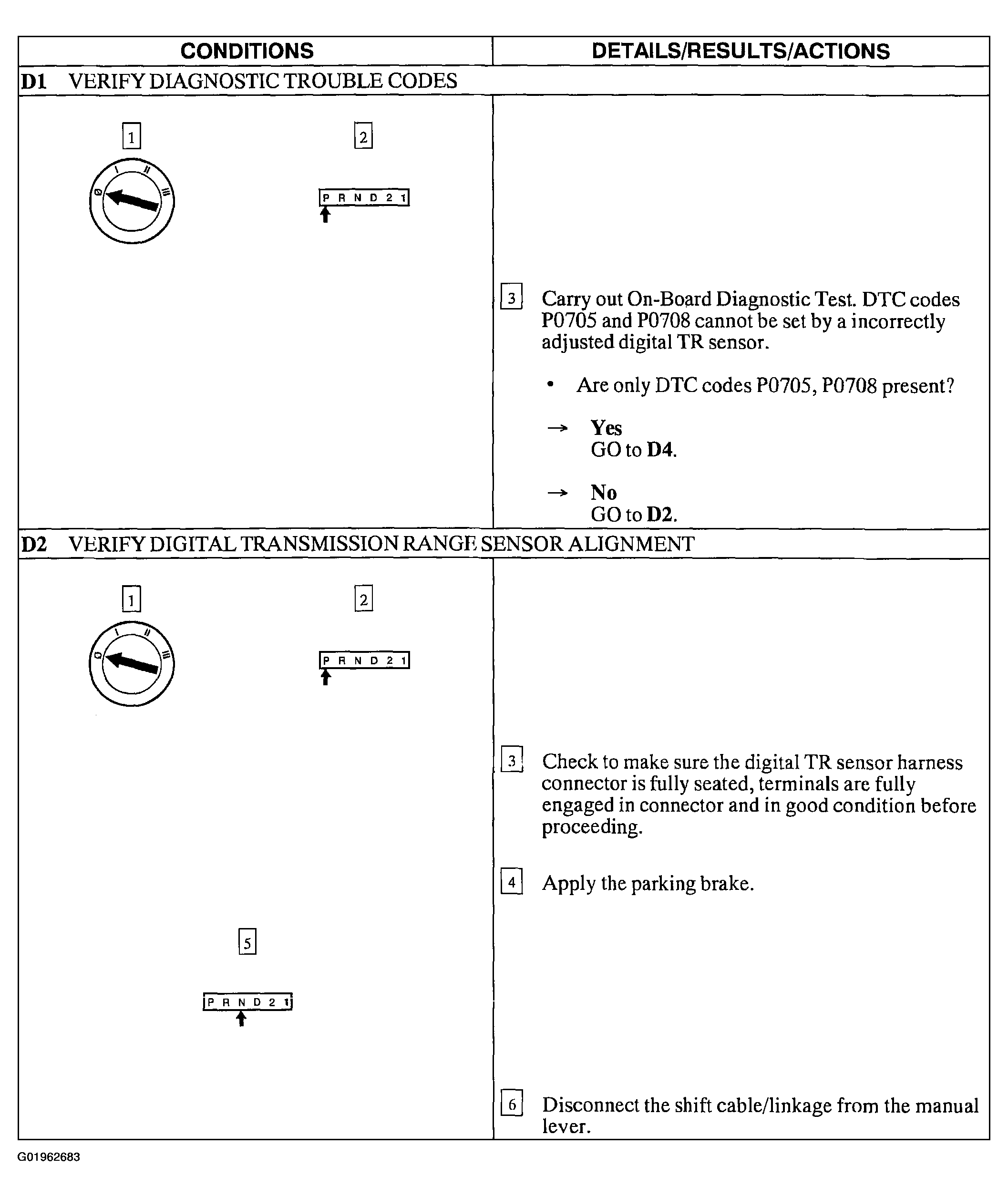

Fig 1: Pinpoint Test D: Digital Transmission Range (TR) Sensor Chart (1 Of 9)

G01962683

Courtesy of FORD MOTOR CO.

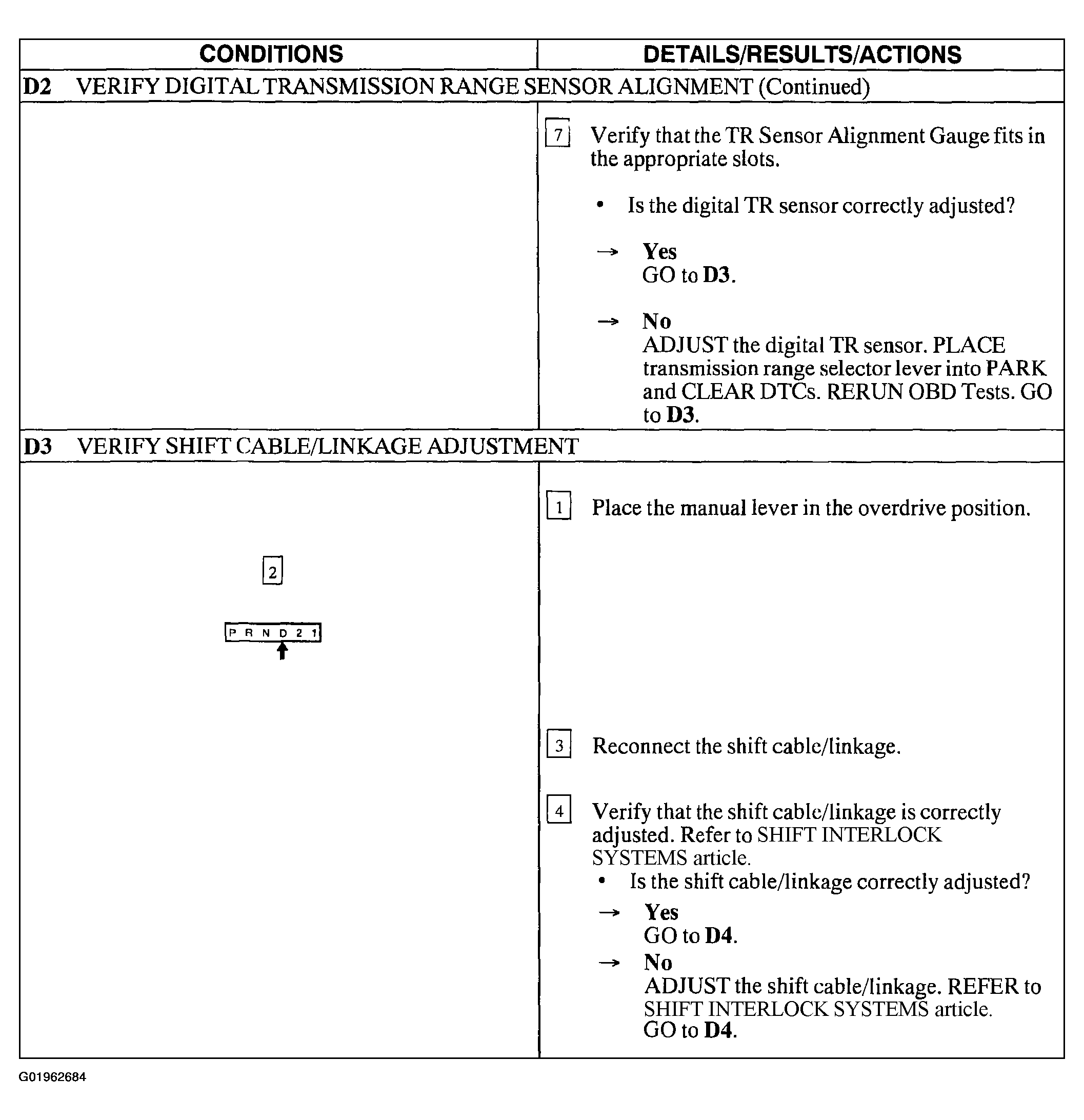

Fig 2: Pinpoint Test D: Digital Transmission Range (TR) Sensor Chart (2 Of 9)

G01962684

Courtesy of FORD MOTOR CO.

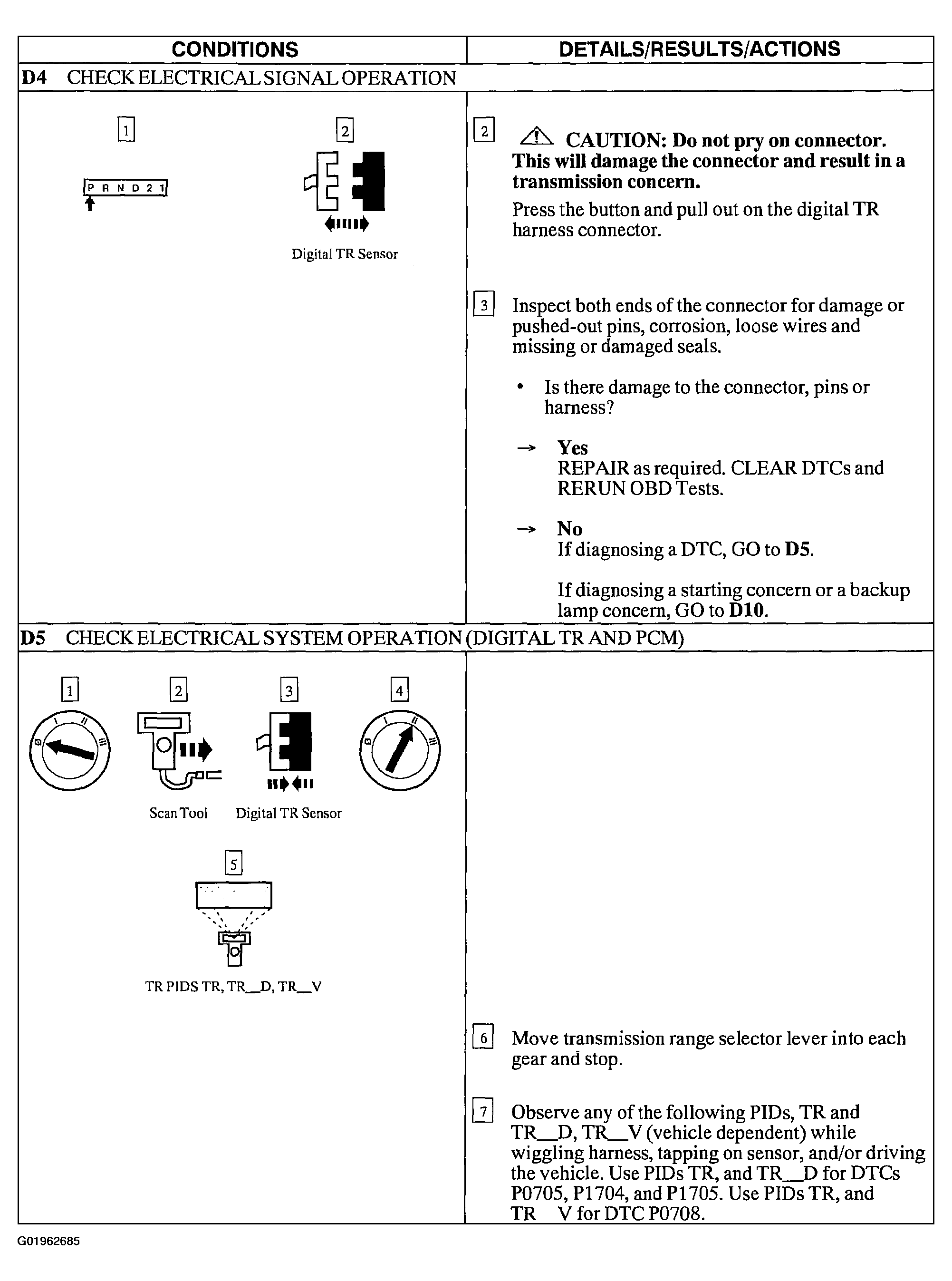

Fig 3: Pinpoint Test D: Digital Transmission Range (TR) Sensor Chart (3 Of 9)

G01962685

Courtesy of FORD MOTOR CO.

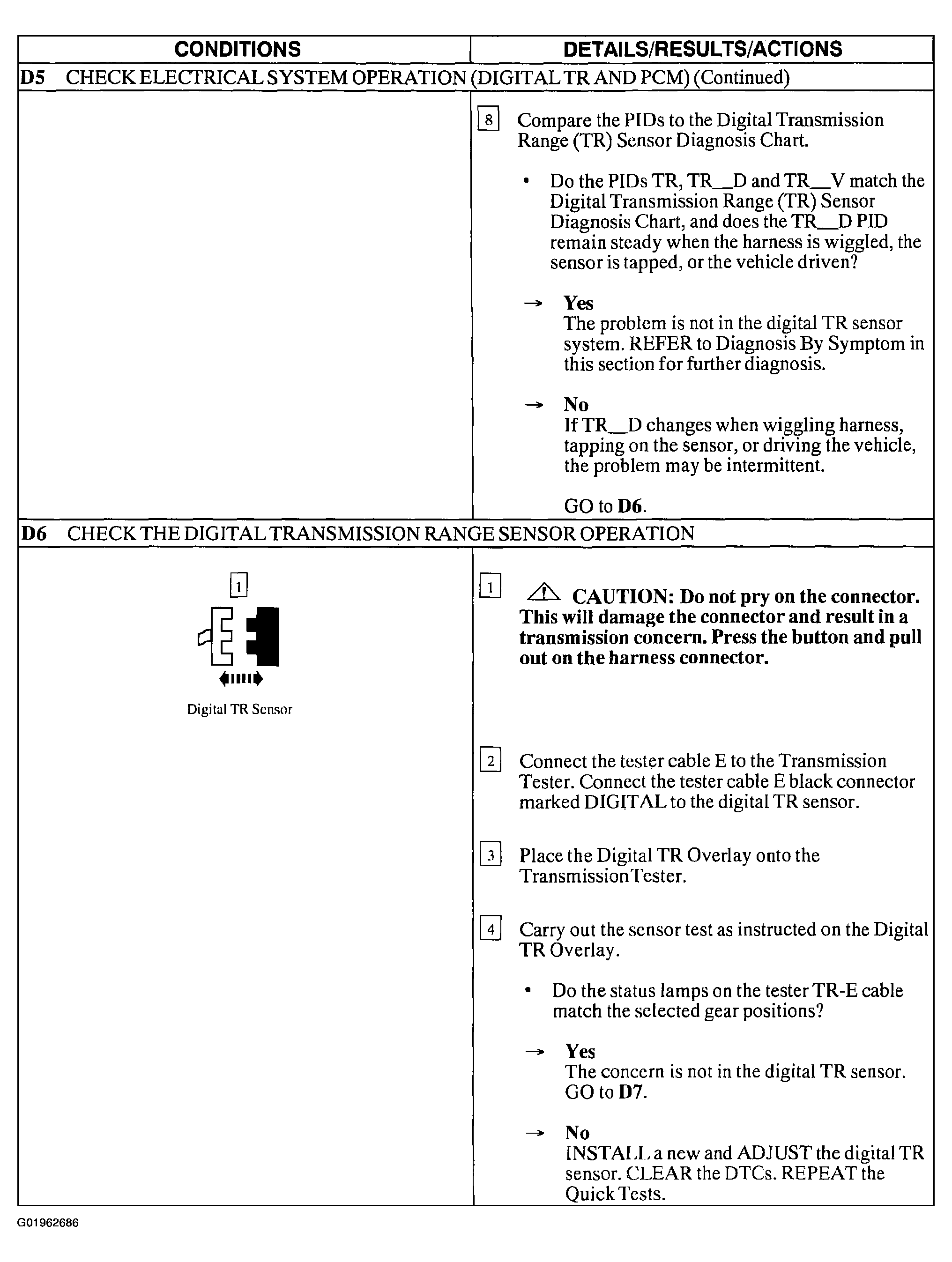

Fig 4: Pinpoint Test D: Digital Transmission Range (TR) Sensor Chart (4 Of 9)

G01962686

Courtesy of FORD MOTOR CO.

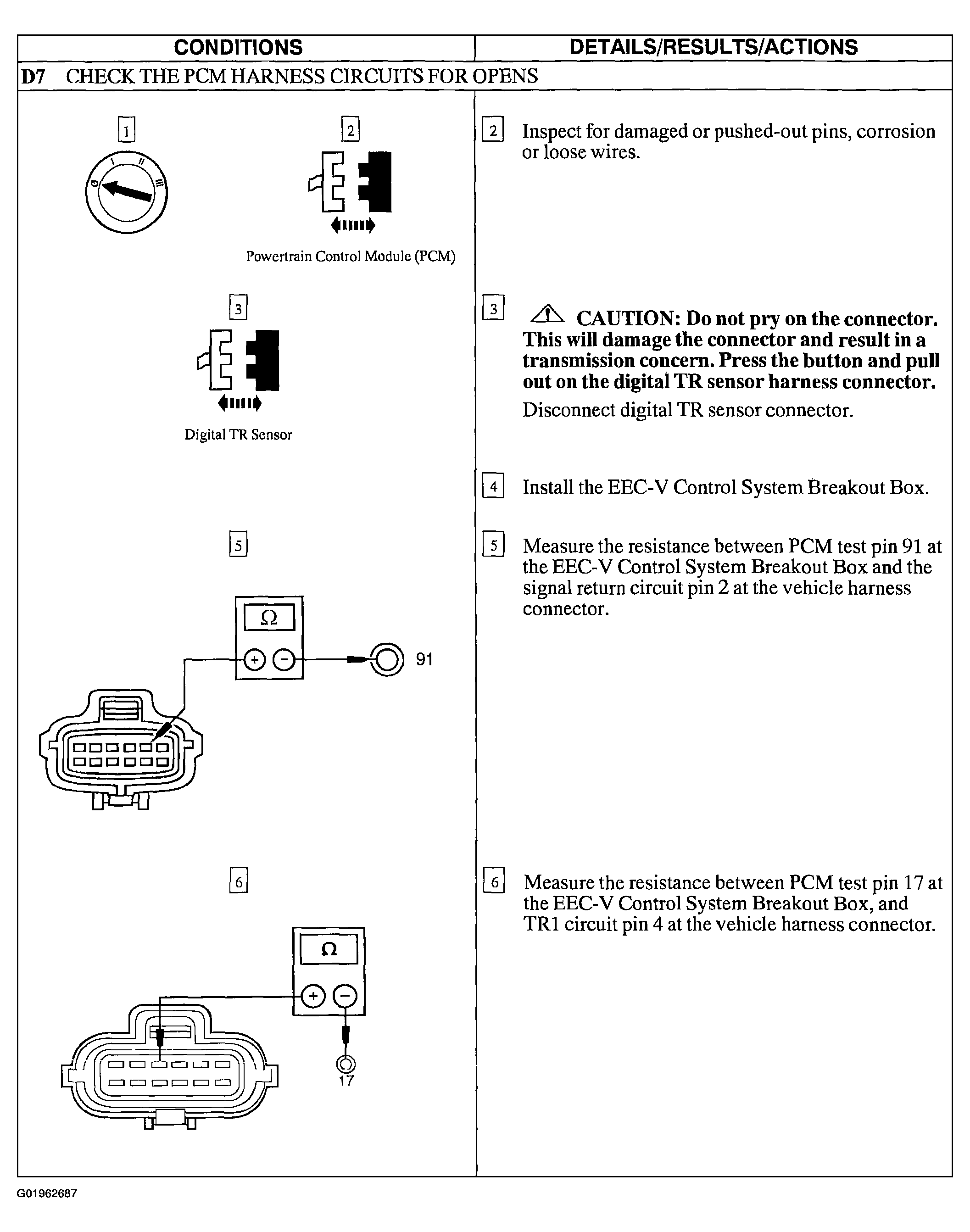

Fig 5: Pinpoint Test D: Digital Transmission Range (TR) Sensor Chart (5 Of 9)

G01962687

Courtesy of FORD MOTOR CO.

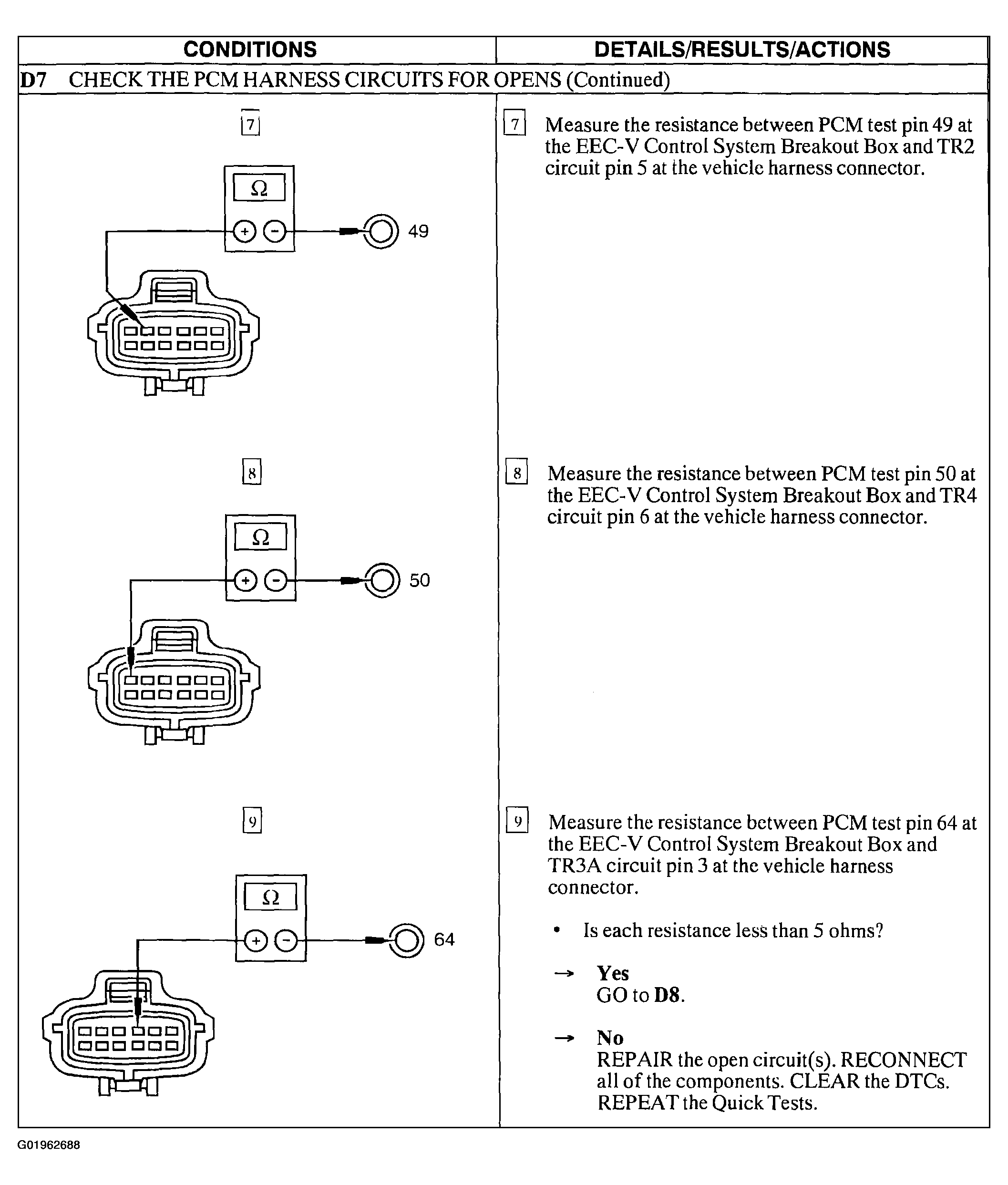

Fig 6: Pinpoint Test D: Digital Transmission Range (TR) Sensor Chart (6 Of 9)

G01962688

Courtesy of FORD MOTOR CO.

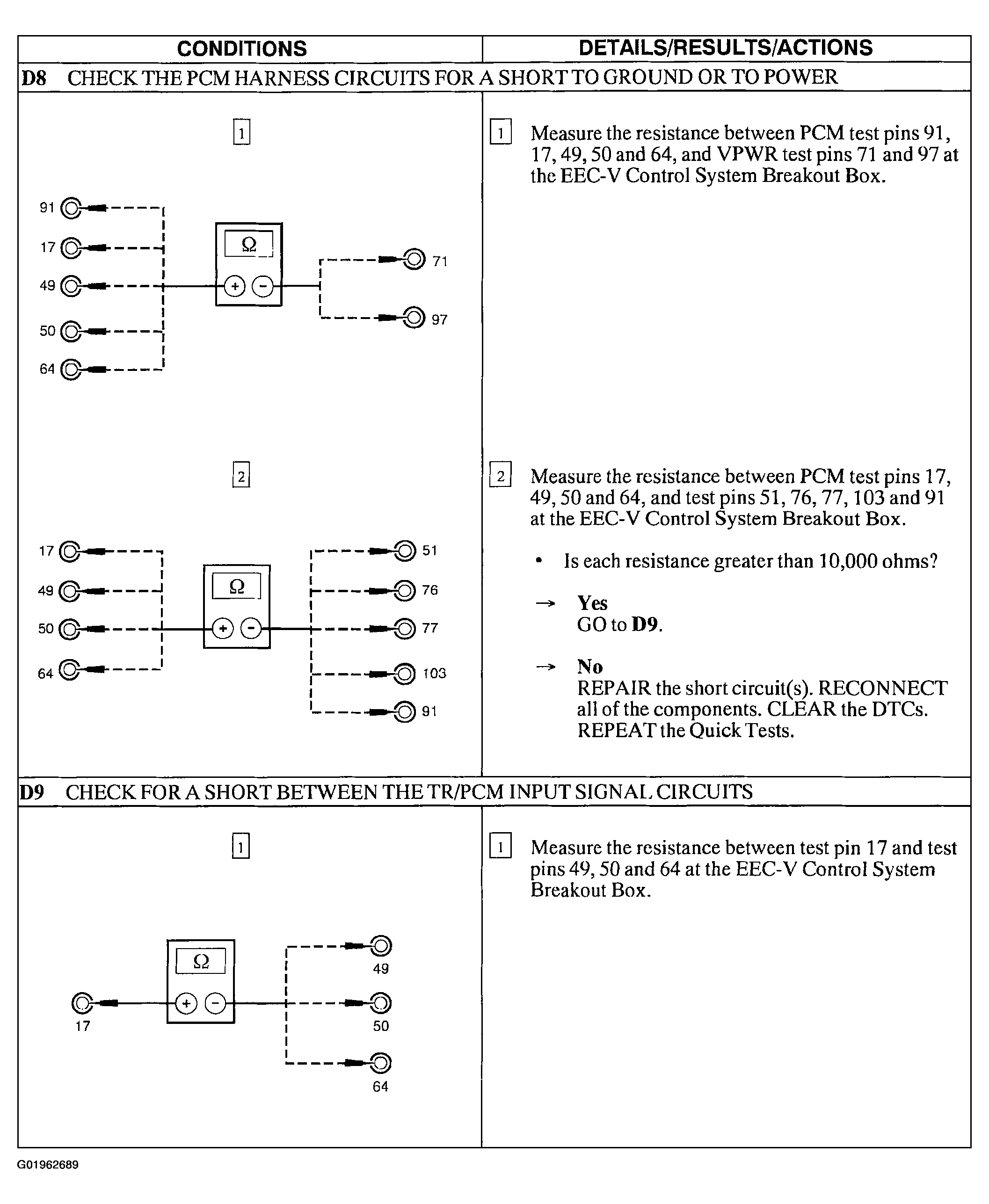

Fig 7: Pinpoint Test D: Digital Transmission Range (TR) Sensor Chart (7 Of 9)

G01962689

Courtesy of FORD MOTOR CO.

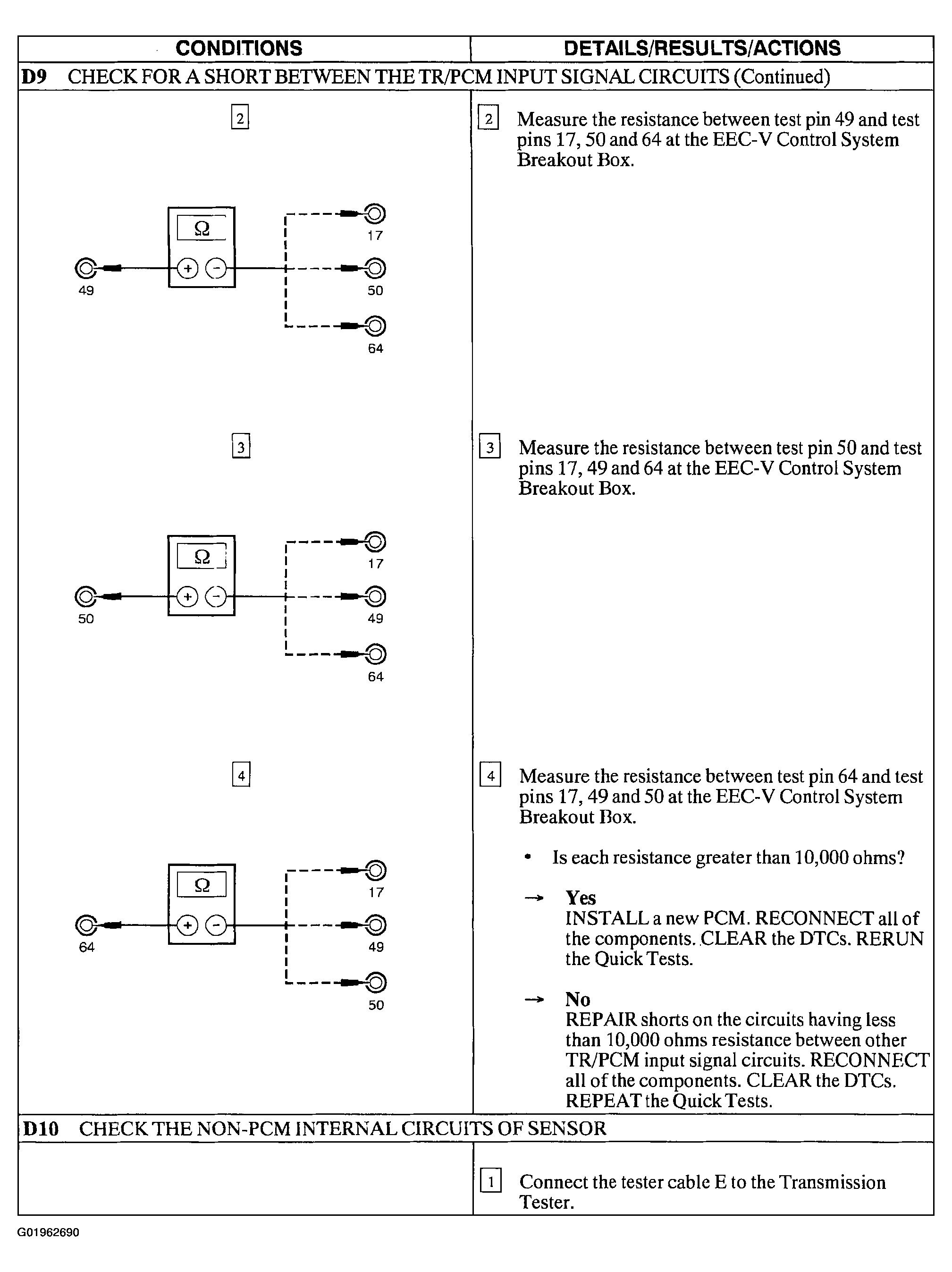

Fig 8: Pinpoint Test D: Digital Transmission Range (TR) Sensor Chart (8 Of 9)

G01962690

Courtesy of FORD MOTOR CO.

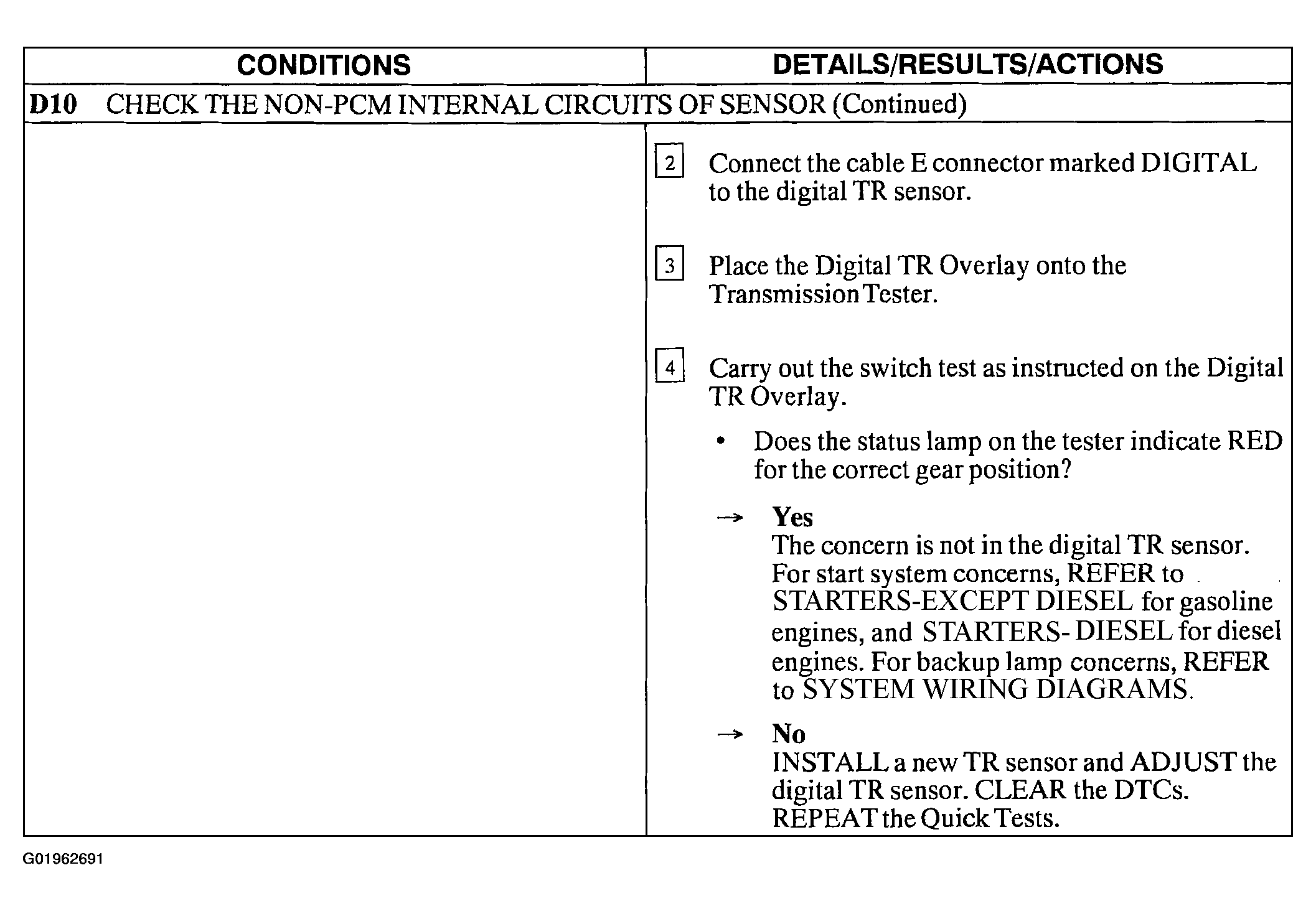

Fig 9: Pinpoint Test D: Digital Transmission Range (TR) Sensor Chart (9 Of 9)

G01962691

Courtesy of FORD MOTOR CO.
