Pinpoint Test A: Shift Solenoids

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Transmission Vehicle Harness Connector illustration.

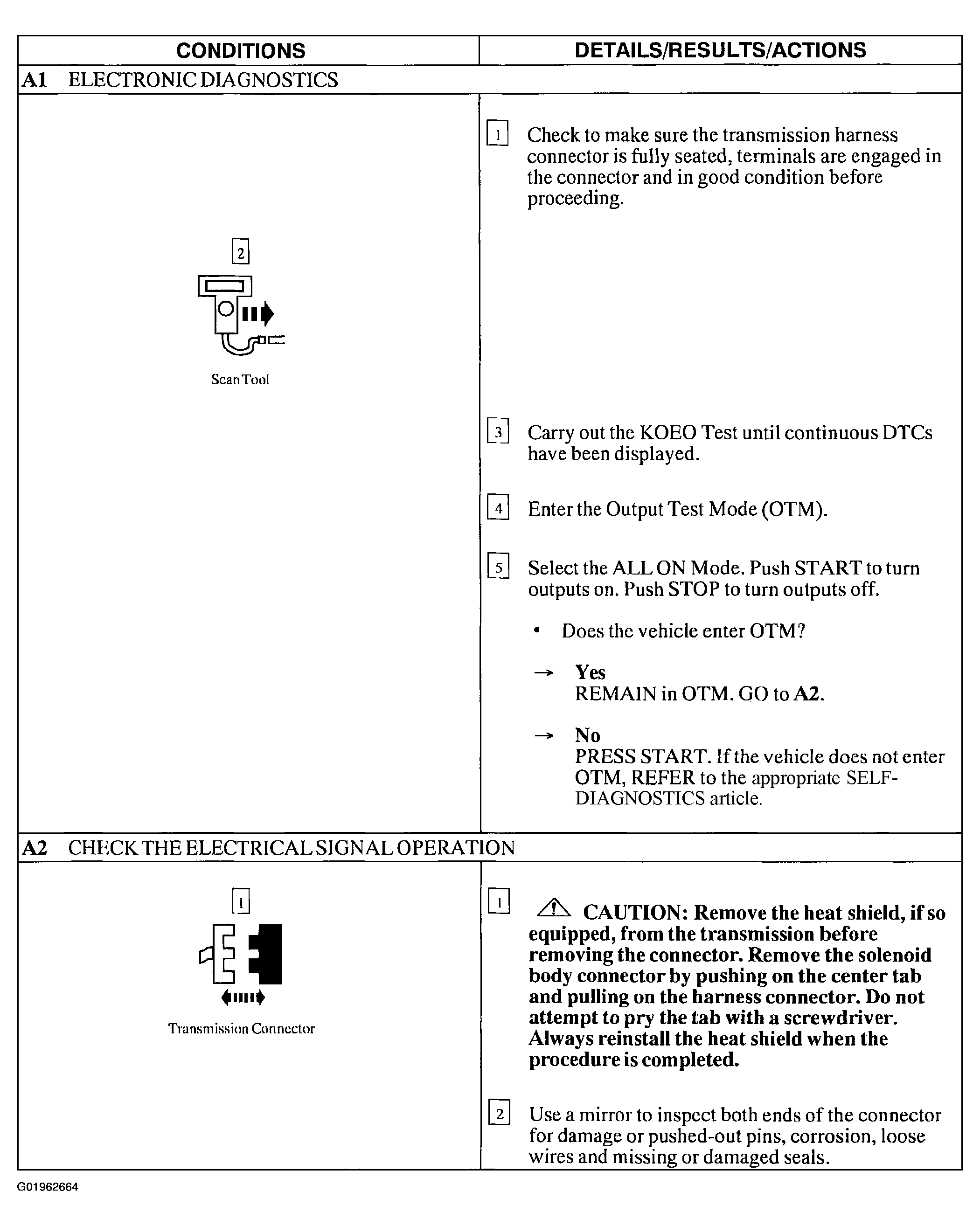

Fig 1: Pinpoint Test A: Shift Solenoids Table (Steps A1 & A2)

G01962664

Courtesy of FORD MOTOR CO.

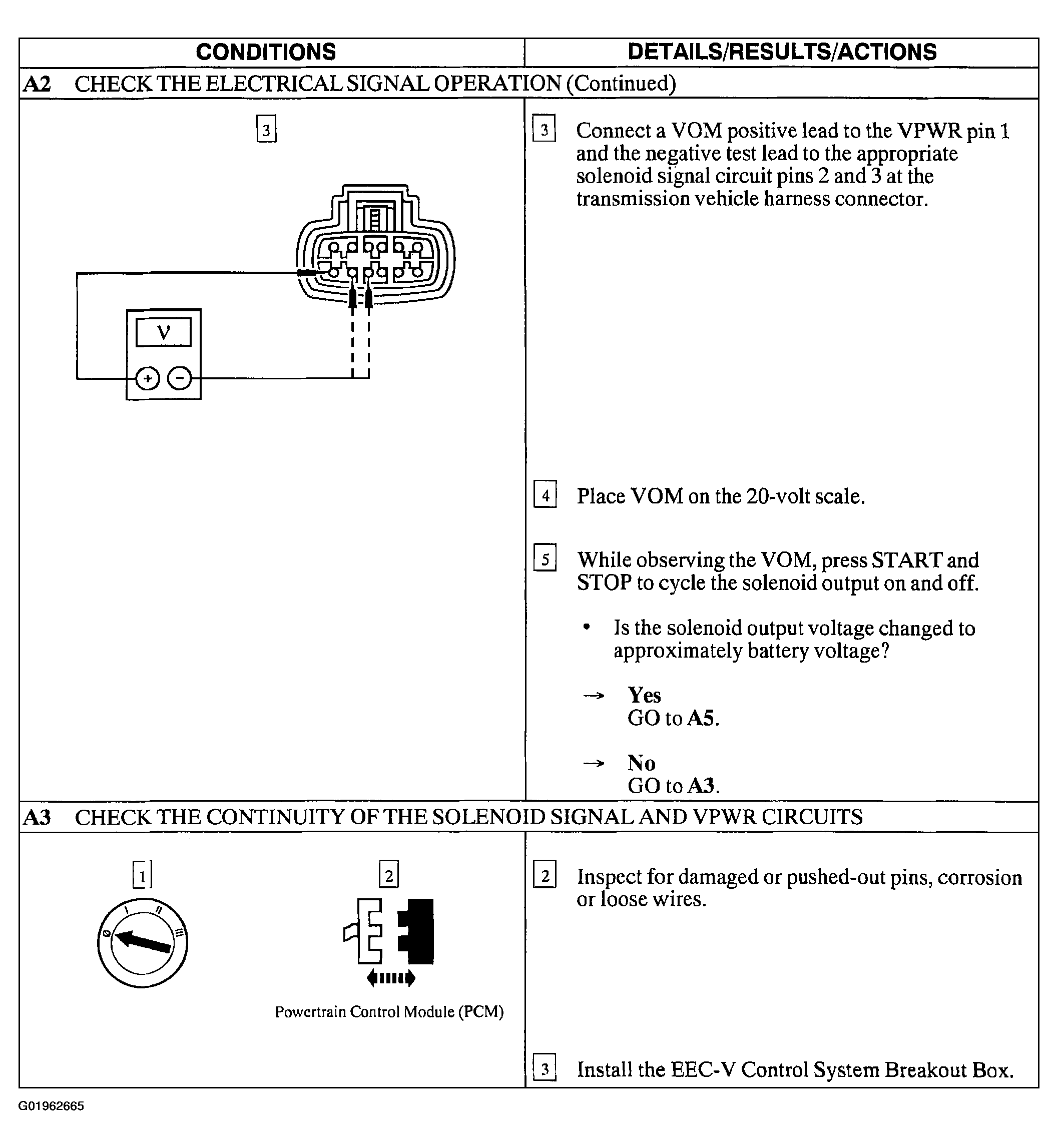

Fig 2: Pinpoint Test A: Shift Solenoids Table (Steps A2 Cont. & A3)

G01962665

Courtesy of FORD MOTOR CO.

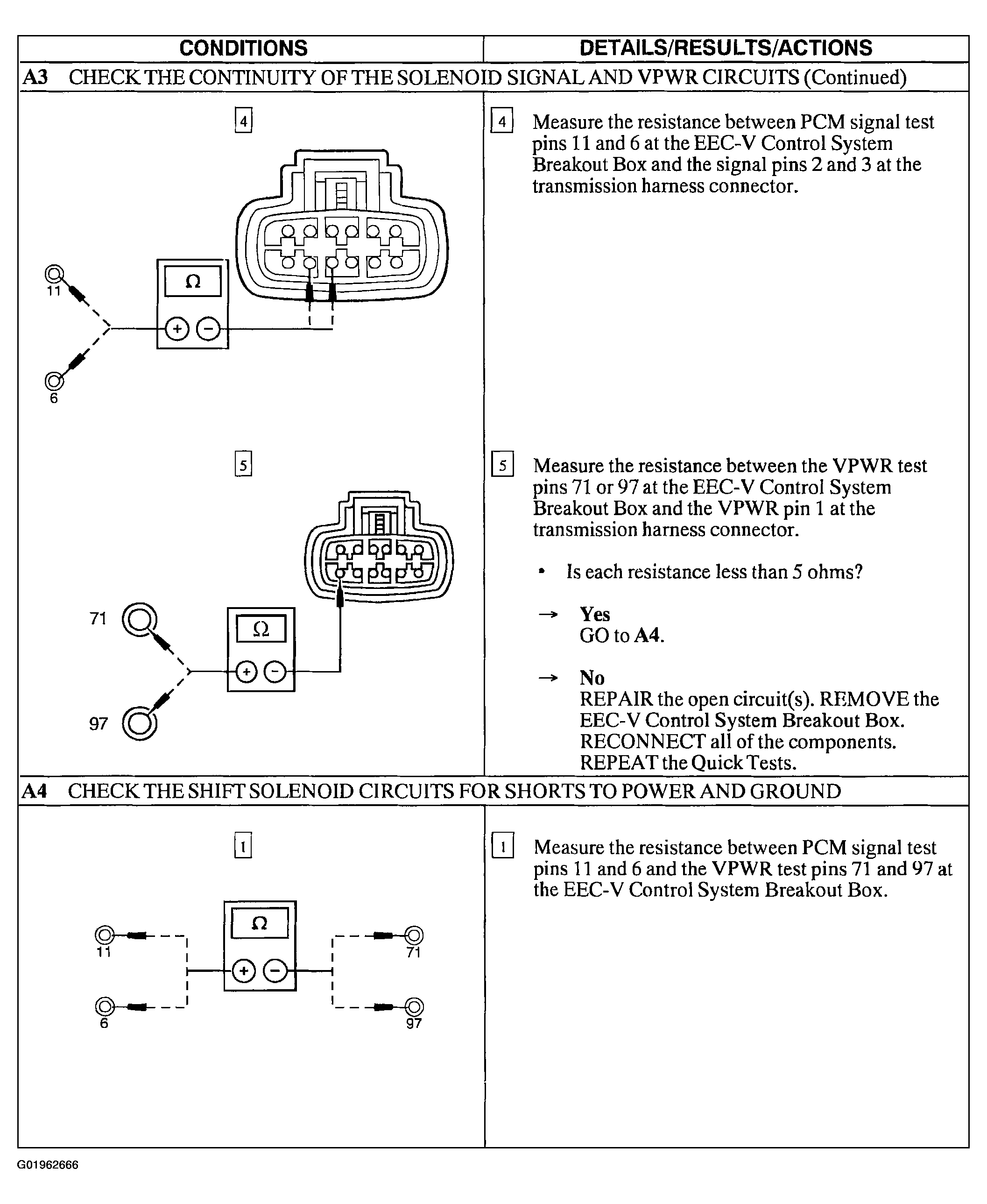

Fig 3: Pinpoint Test A: Shift Solenoids Table (Steps A2 Cont. & A4)

G01962666

Courtesy of FORD MOTOR CO.

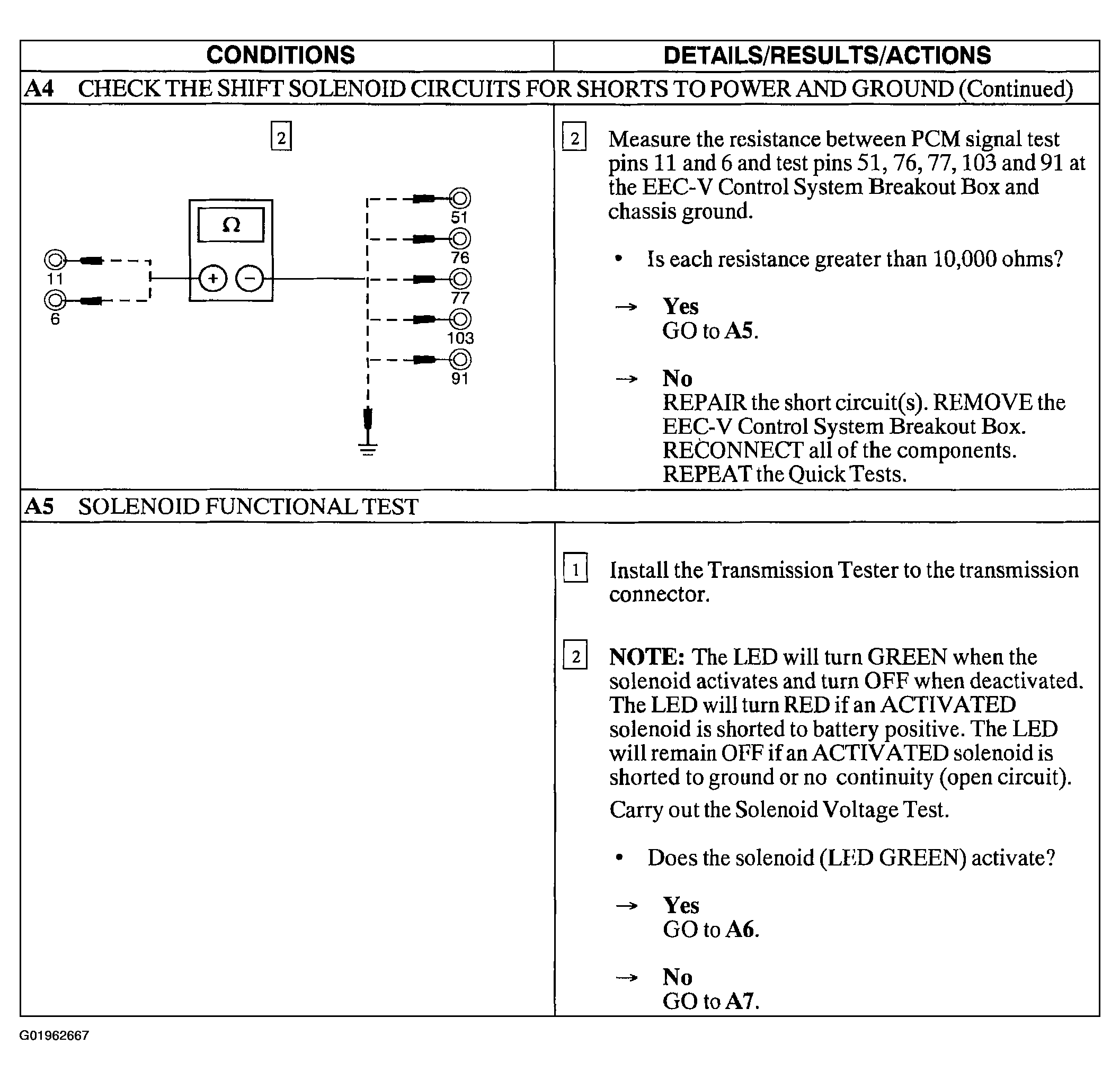

Fig 4: Pinpoint Test A: Shift Solenoids Table (Steps A4 Cont. & A5)

G01962667

Courtesy of FORD MOTOR CO.

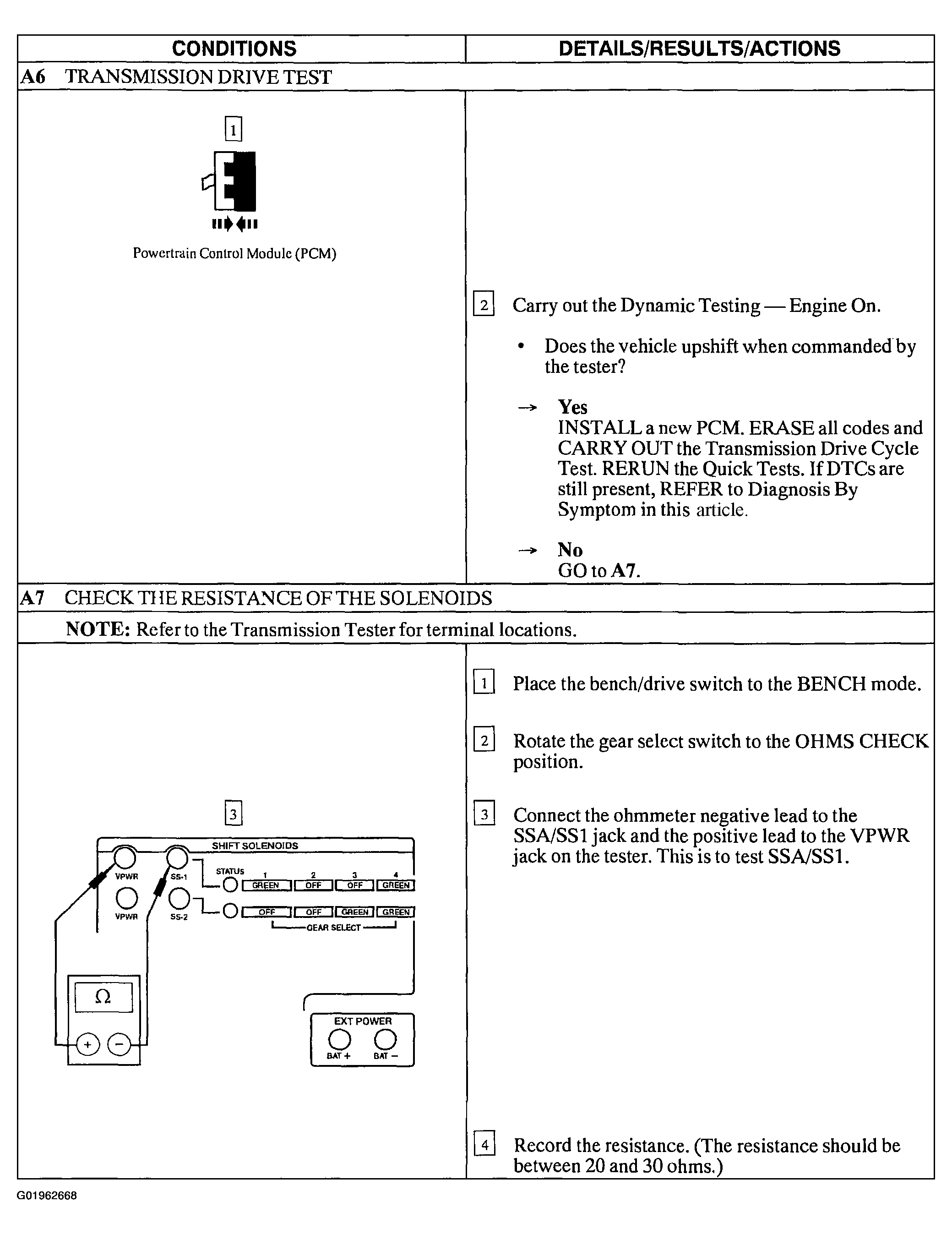

Fig 5: Pinpoint Test A: Shift Solenoids Table (Steps A6 & A7)

G01962668

Courtesy of FORD MOTOR CO.

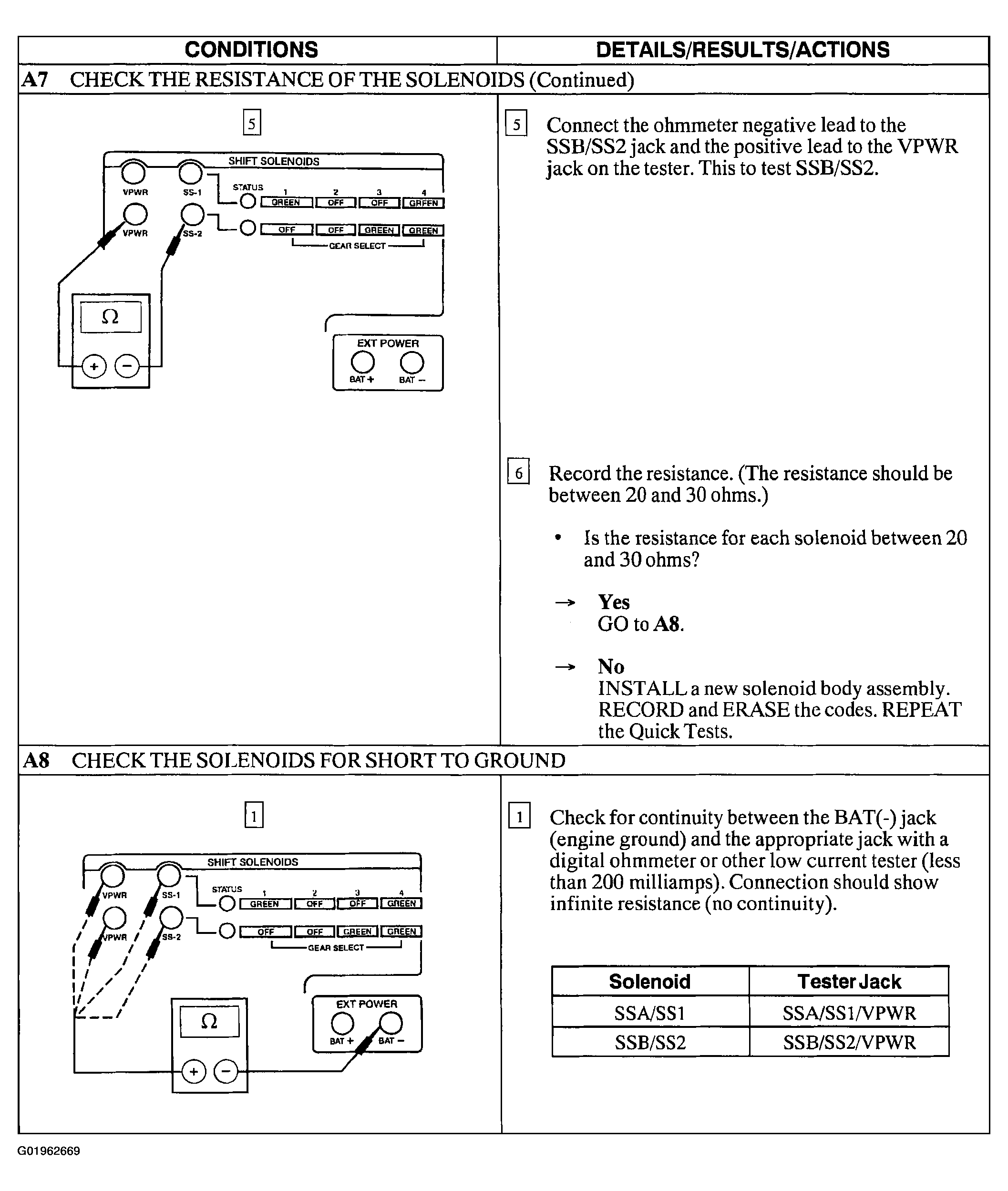

Fig 6: Pinpoint Test A: Shift Solenoids Table (A7 Cont & A8)

G01962669

Courtesy of FORD MOTOR CO.

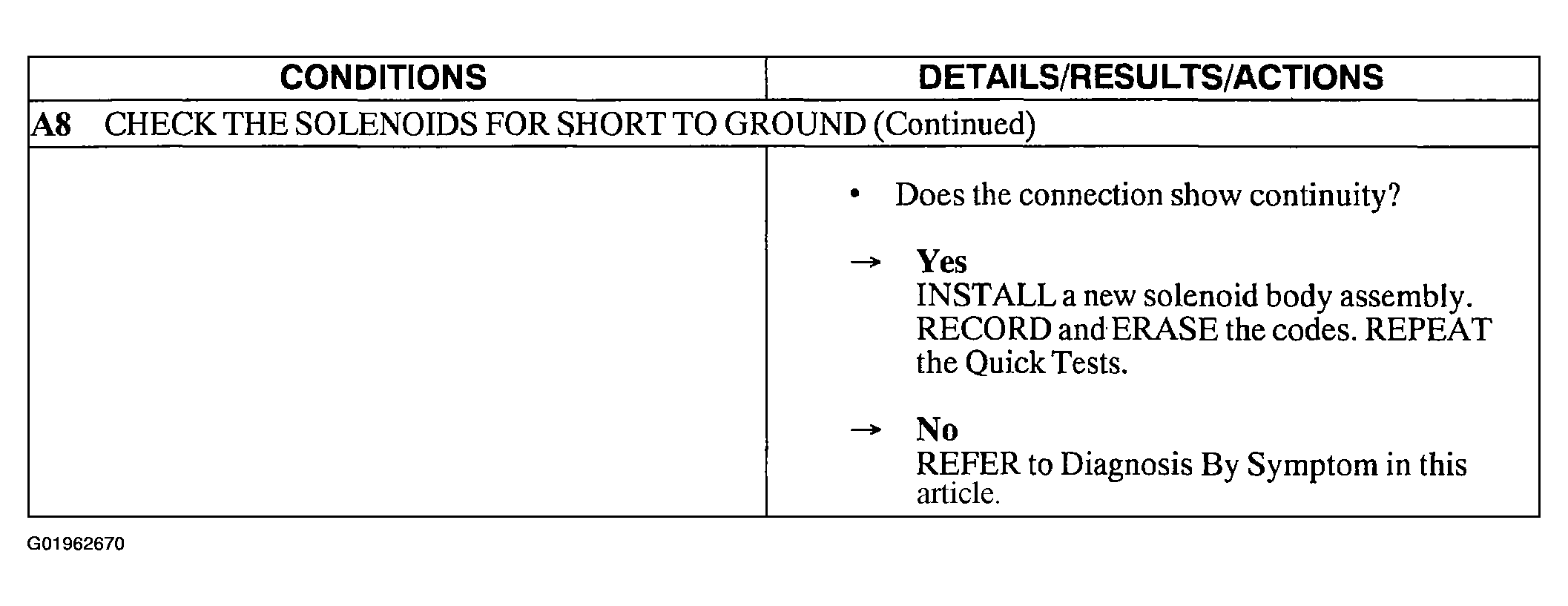

Fig 7: Pinpoint Test A: Shift Solenoids Table (Step A8)

G01962670

Courtesy of FORD MOTOR CO.
