Torque Converter Clutch Operation Concern: Always Applied/Stalls Vehicle (See Note in No. 241 Before Proceeding)

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

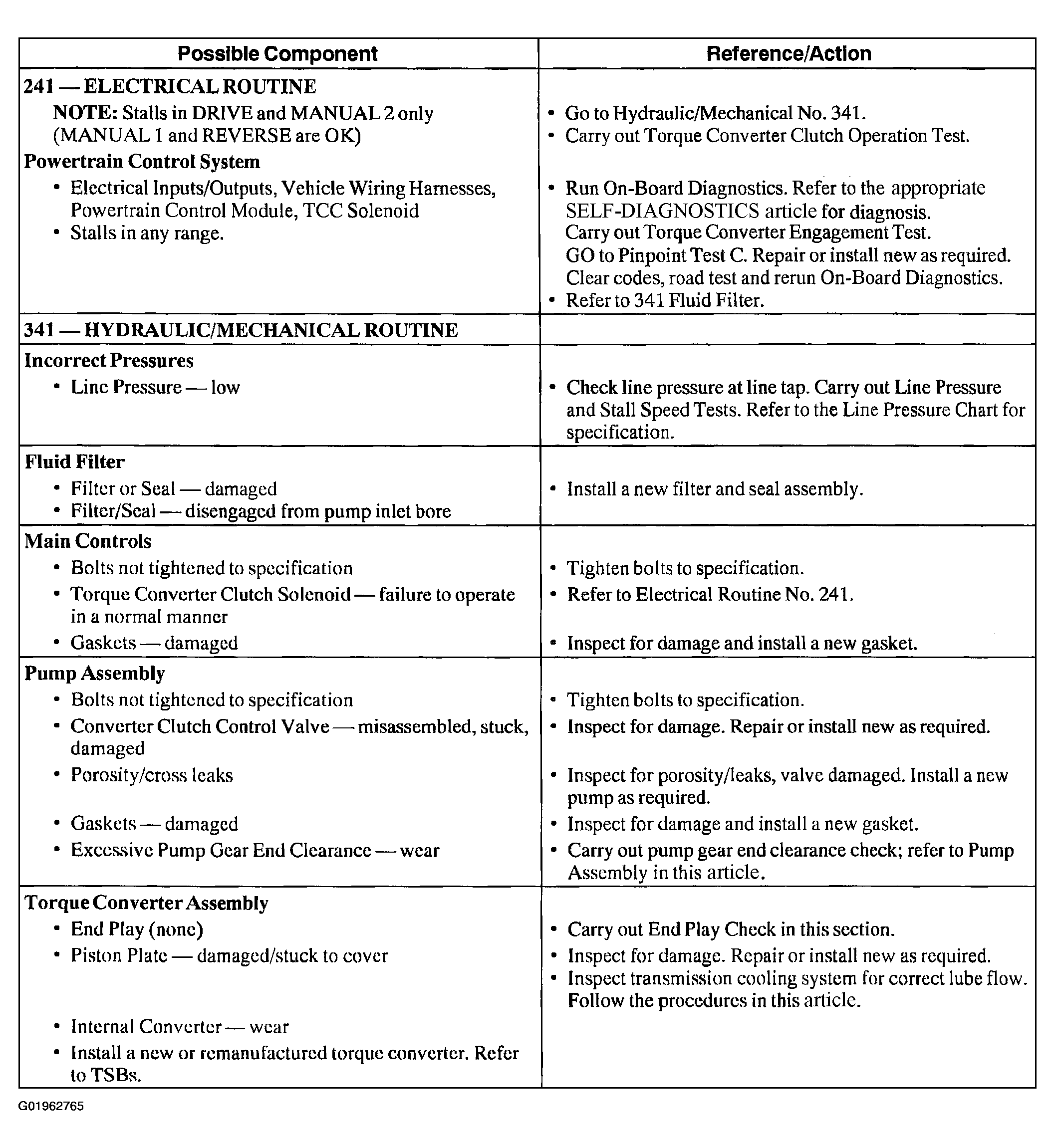

Fig 1: Diagnostic Routines 241/341 - Torque Converter Clutch Operation Concern: Always Applied/Stalls Vehicle
G01962765Courtesy of FORD MOTOR CO.
