Other Concerns: Vehicle Runs Poor

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Check for driveability concerns. It is possible that the transmission is functioning correctly based on input from the PCM. All non-related transmission DTCs should be repaired prior to any transmission repair or installation of a new component.
Fig 1: Diagnostic Routines 253/353 - Other Concerns: Vehicle Runs Poor (1 Of 2)
G01962769Courtesy of FORD MOTOR CO.

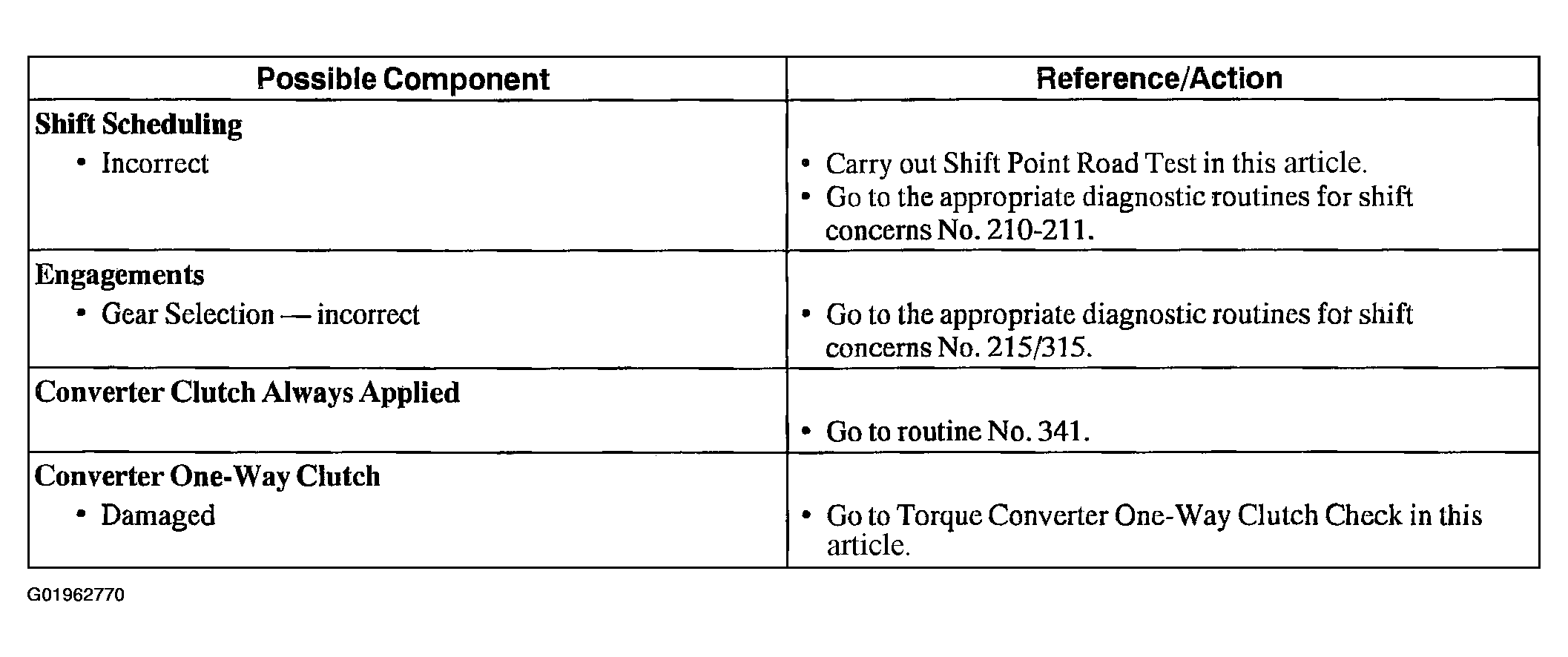

Fig 2: Diagnostic Routines 253/353 - Other Concerns: Vehicle Runs Poor (2 Of 2)
G01962770Courtesy of FORD MOTOR CO.
