Transmission Description
WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

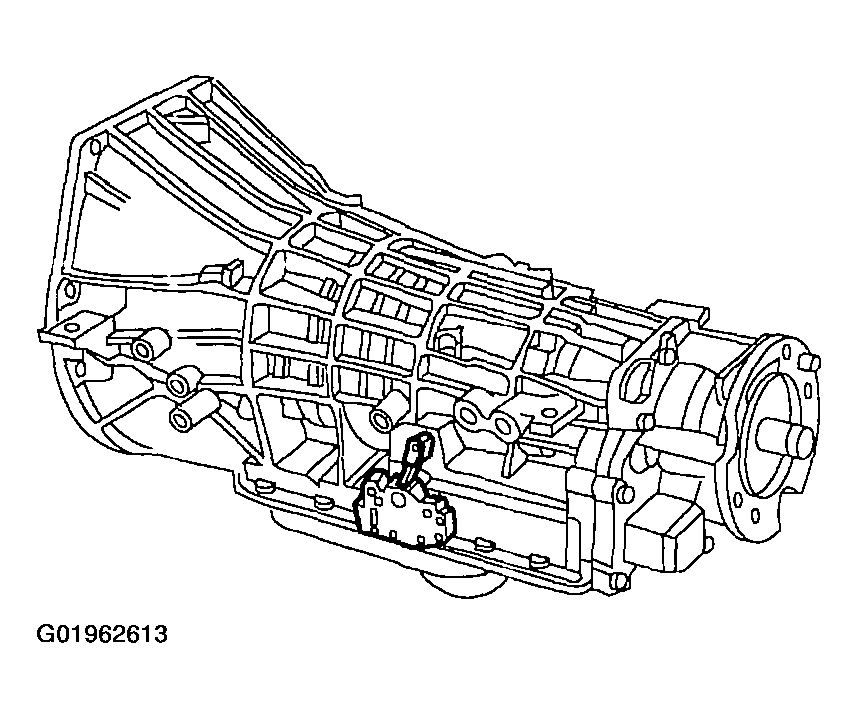

The 4R100 features include:
- Four speeds.
- Fully automatic.
- Electronically controlled.
The main operating components include:
- Torque converter clutch.
- Six multiple-disc friction clutches.
- One band.
- One sprag one-way clutch.
- Two roller one-way clutches that provide for the desired function of three planetary gearsets.
