Disassembled Views

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

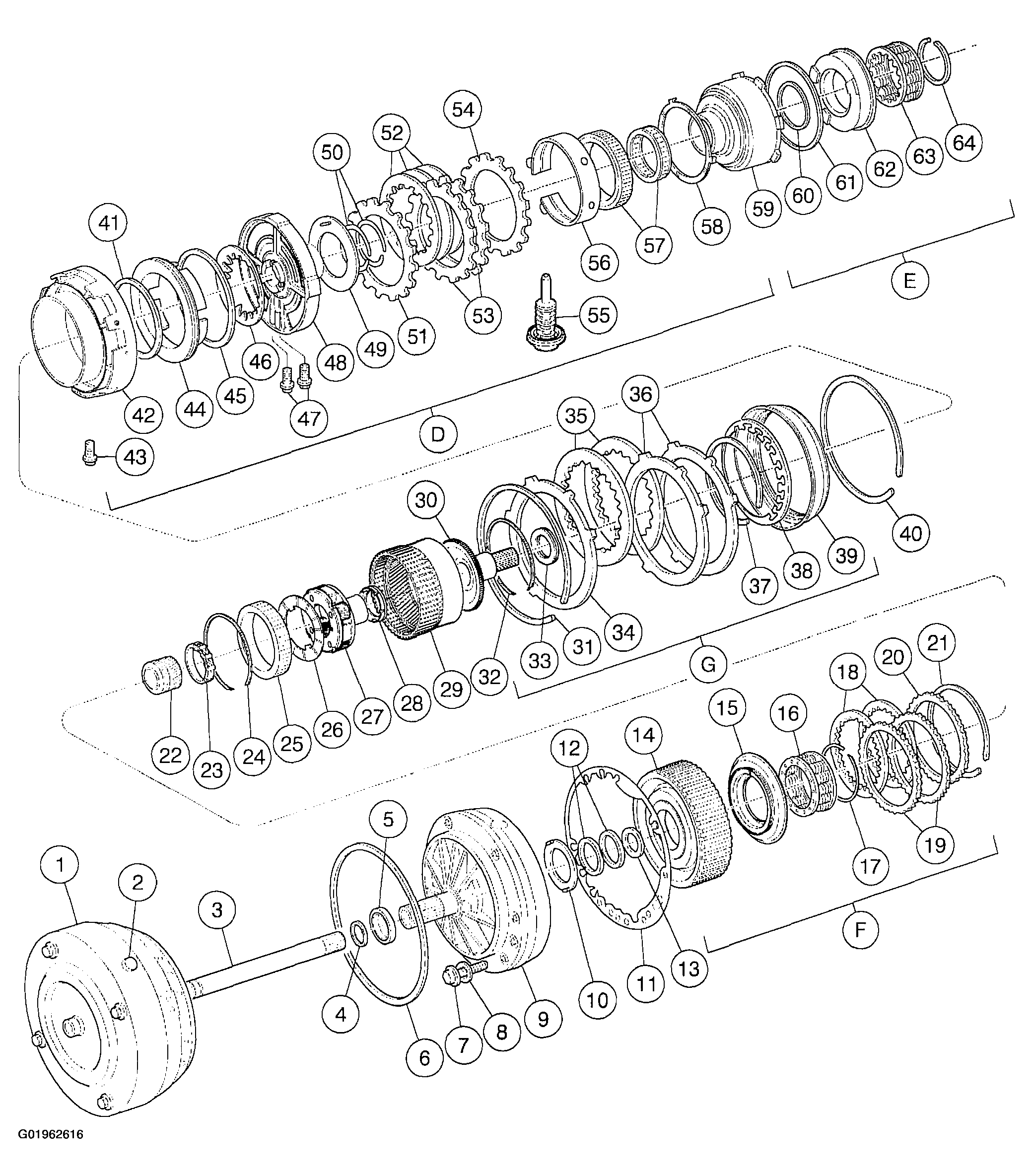

Fig 1: Disassembling View Of Transmission System (1 Of 3)

G01962616

Courtesy of FORD MOTOR CO.

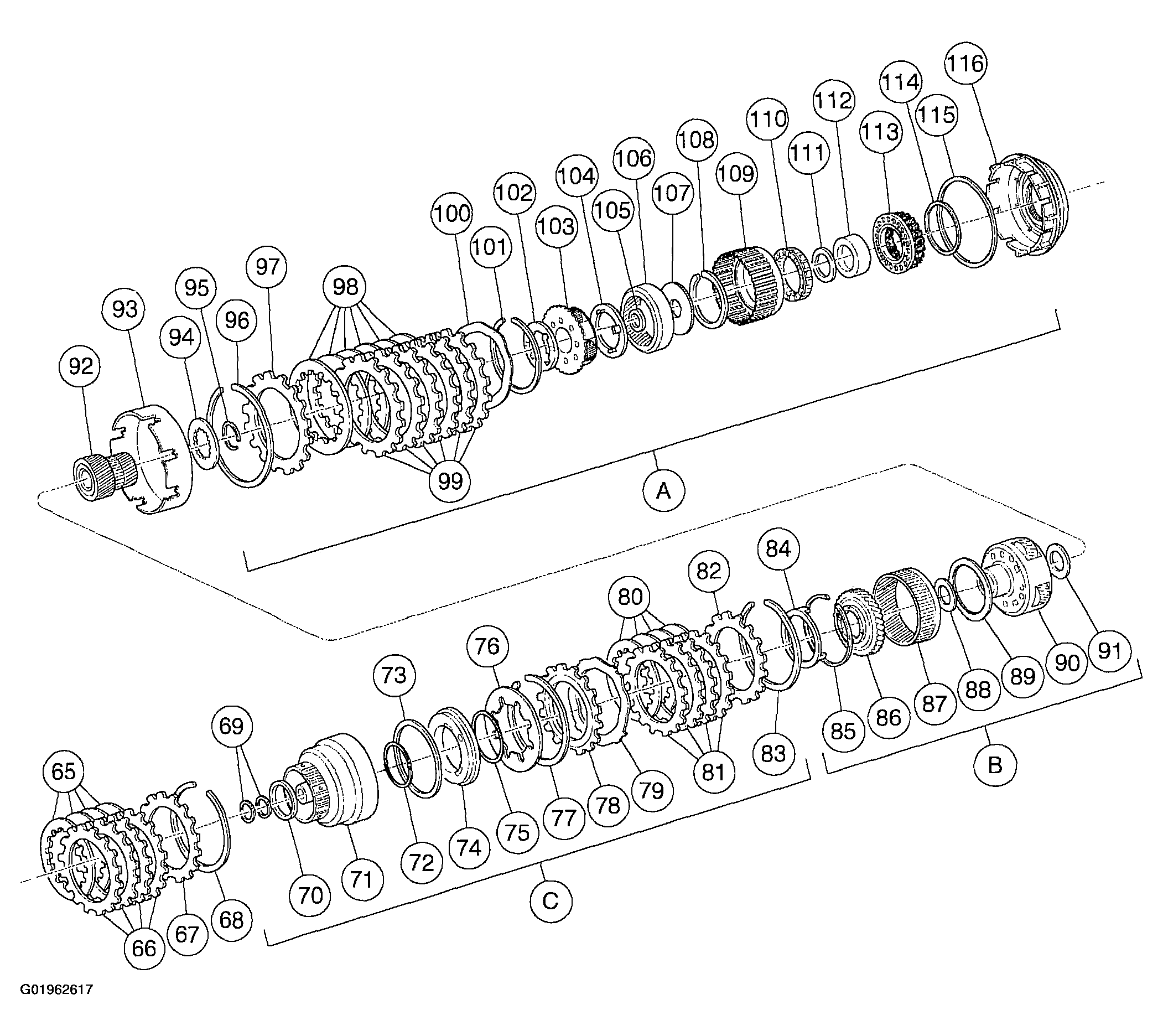

Fig 2: Disassembling View Of Transmission System (2 Of 3)

G01962617

Courtesy of FORD MOTOR CO.

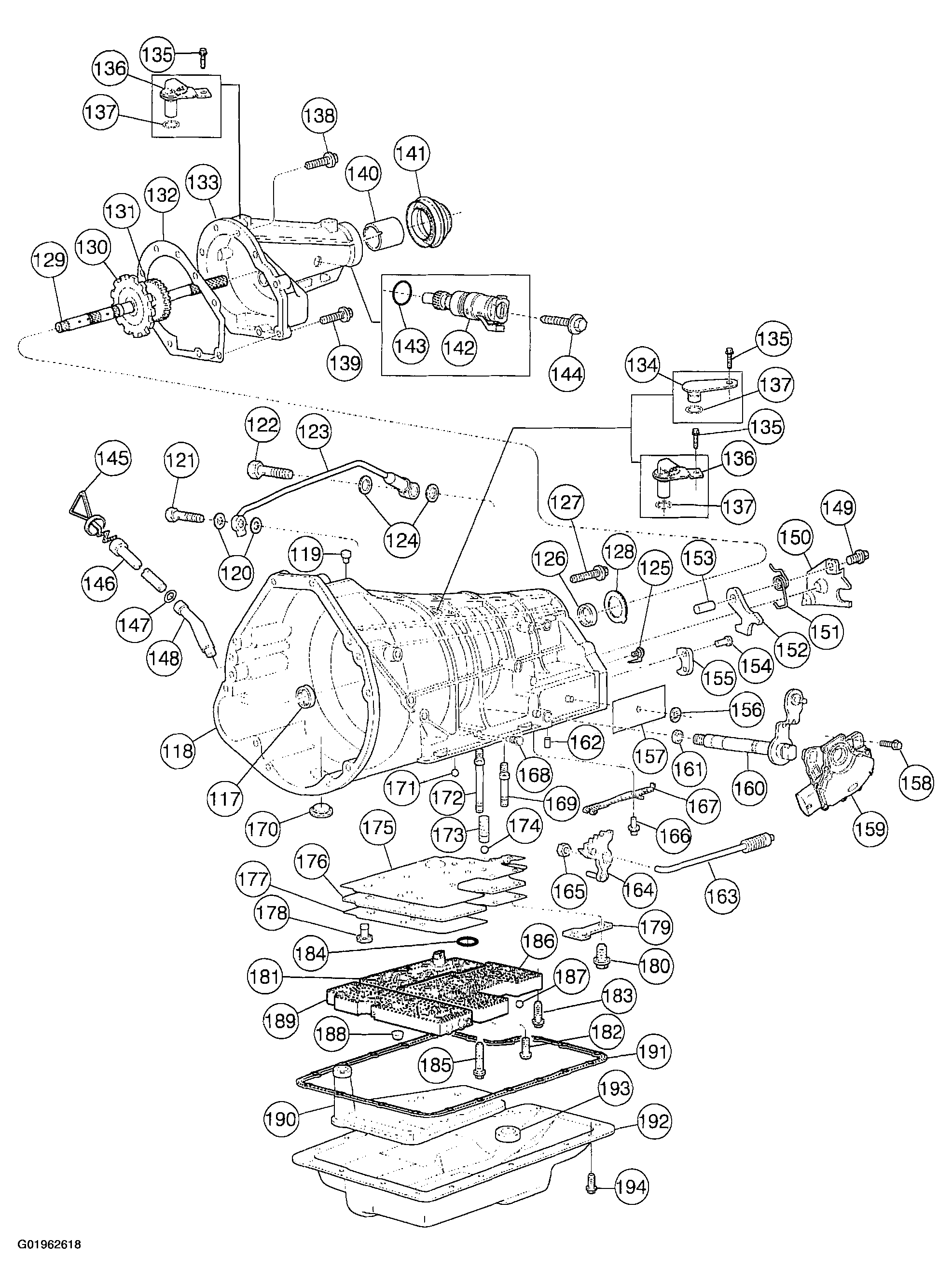

Fig 3: Disassembling View Of Transmission System (3 Of 3)

G01962618

Courtesy of FORD MOTOR CO.

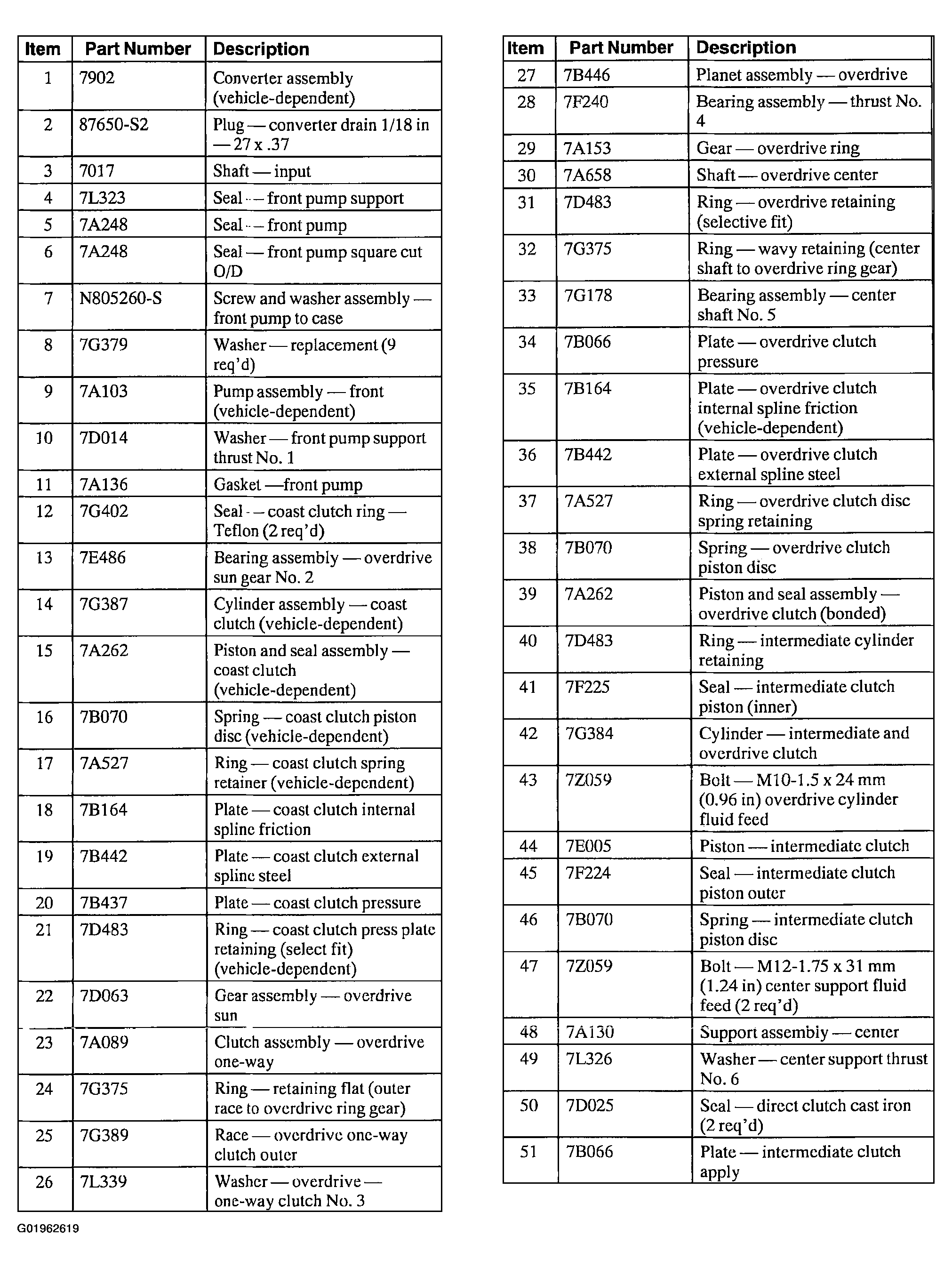

Fig 4: Transmission Item Description Chart Legend (Items 1-51)

G01962619

Courtesy of FORD MOTOR CO.

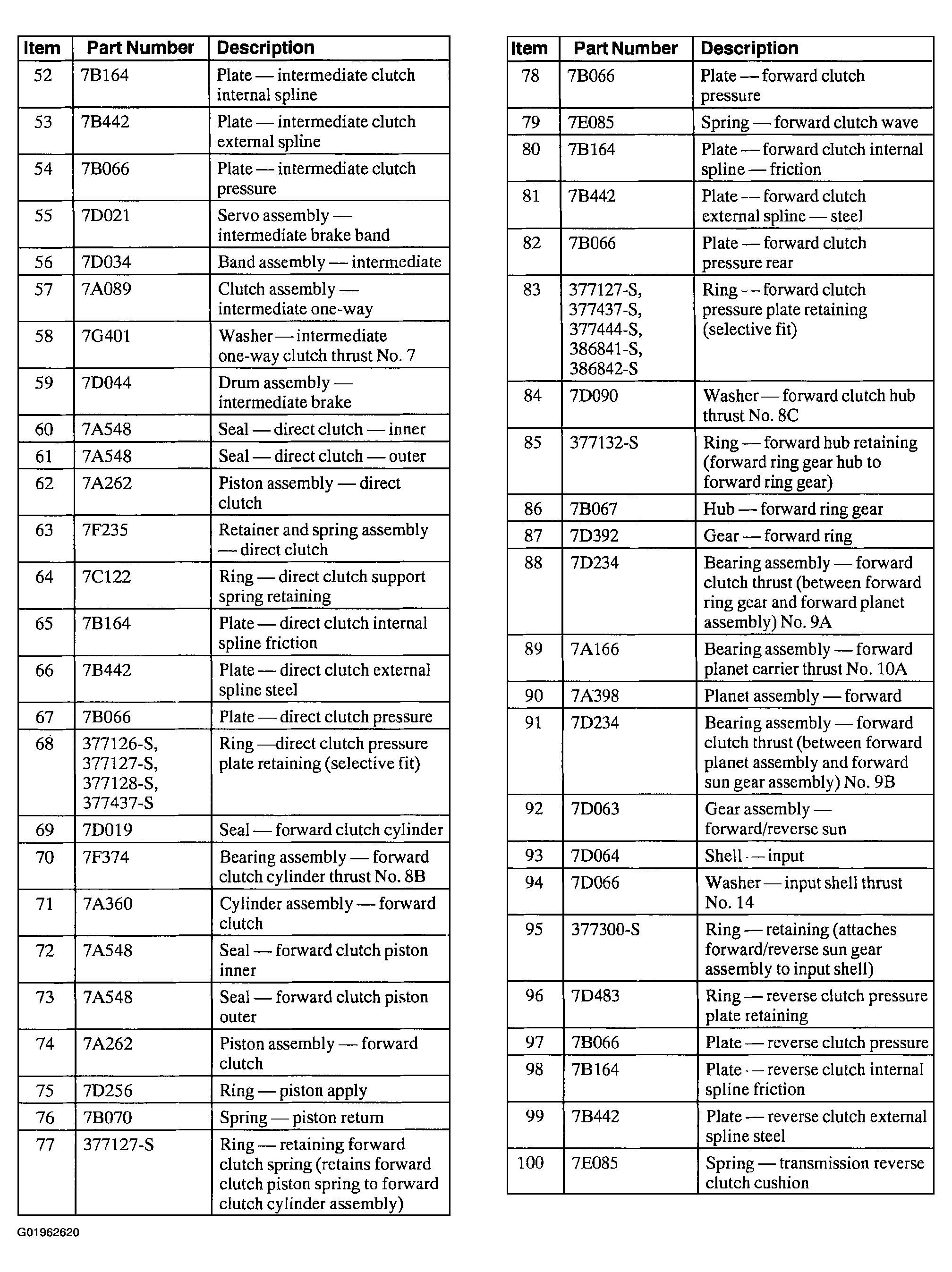

Fig 5: Transmission Item Description Chart Legend (Items 52-100)

G01962620

Courtesy of FORD MOTOR CO.

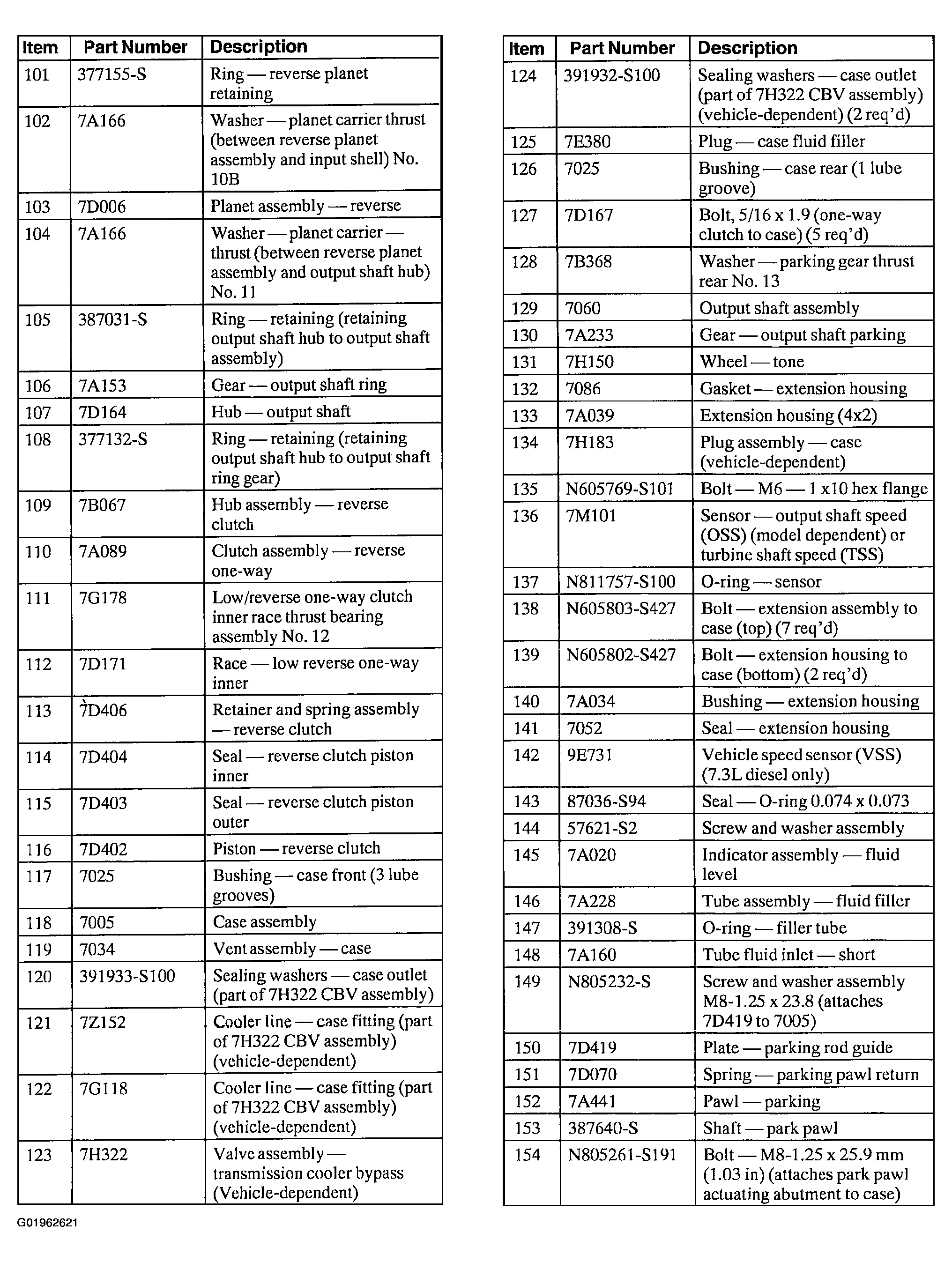

Fig 6: Transmission Item Description Chart Legend (Items 101-154)

G01962621

Courtesy of FORD MOTOR CO.

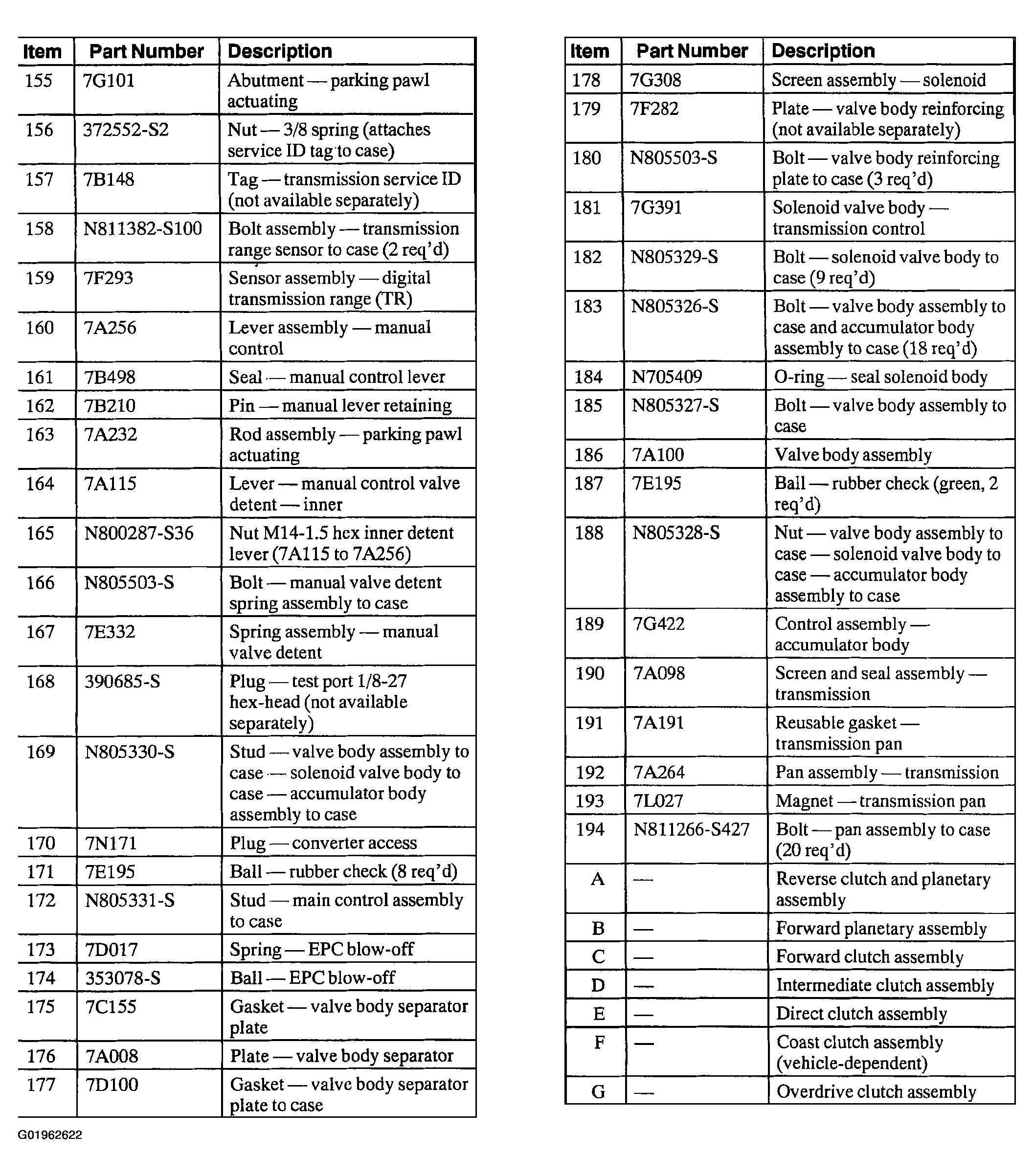

Fig 7: Transmission Item Description Chart Legend (Items 155-194;A-G)

G01962622

Courtesy of FORD MOTOR CO.
