Removal and Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cooling fan. For additional information, refer to COOLING FAN  .
  2. Raise and support the vehicle.
  3. If equipped, remove the underbody splash shield.
  4. Disconnect the lower radiator hose.

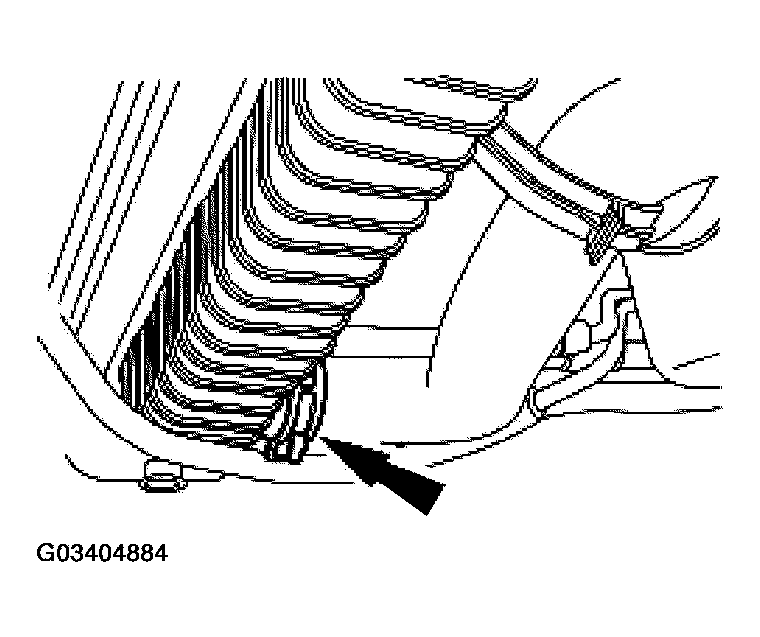

    Fig 1: Disconnecting Lower Radiator Hose
    G03404884Courtesy of FORD MOTOR CO.
  5. Disconnect the transmission oil cooler hoses.

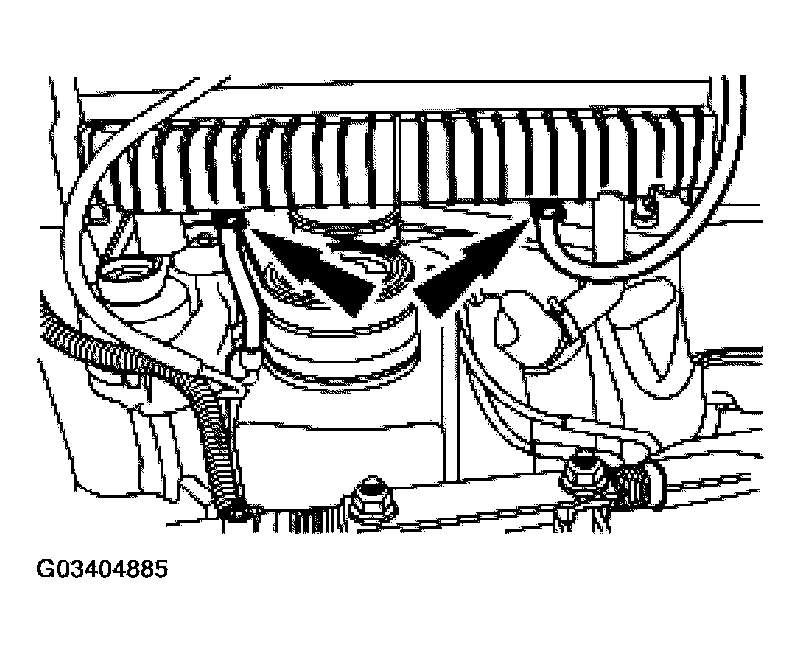

    Fig 2: Disconnecting Transmission Oil Cooler Hoses
    G03404885Courtesy of FORD MOTOR CO.
  6. Lower the vehicle.
  7. Remove the four bolts and the radiator support brackets.

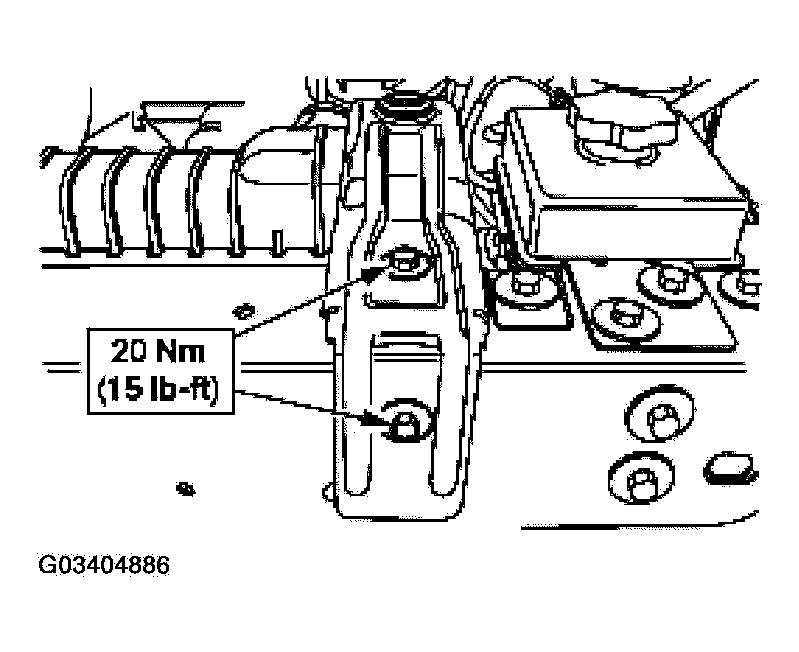

    Fig 3: Removing Bolts And Radiator Support Brackets
    G03404886Courtesy of FORD MOTOR CO.
  8. Remove the radiator from the vehicle.

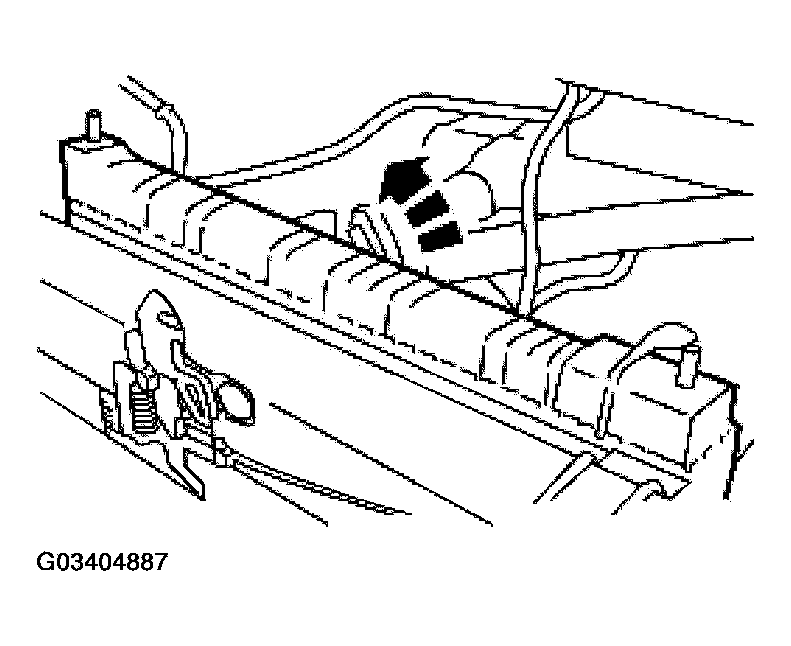

    Fig 4: Removing Radiator From Vehicle
    G03404887Courtesy of FORD MOTOR CO.
  9. To install, reverse the removal procedure.
    • Install hose clamps where the shrink clamps were removed.
    • Install an appropriately sized worm drive-type clamp in place of the constant tension clamp.
