Crankshaft - End Play
WARNING: This page is about a different car, the 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

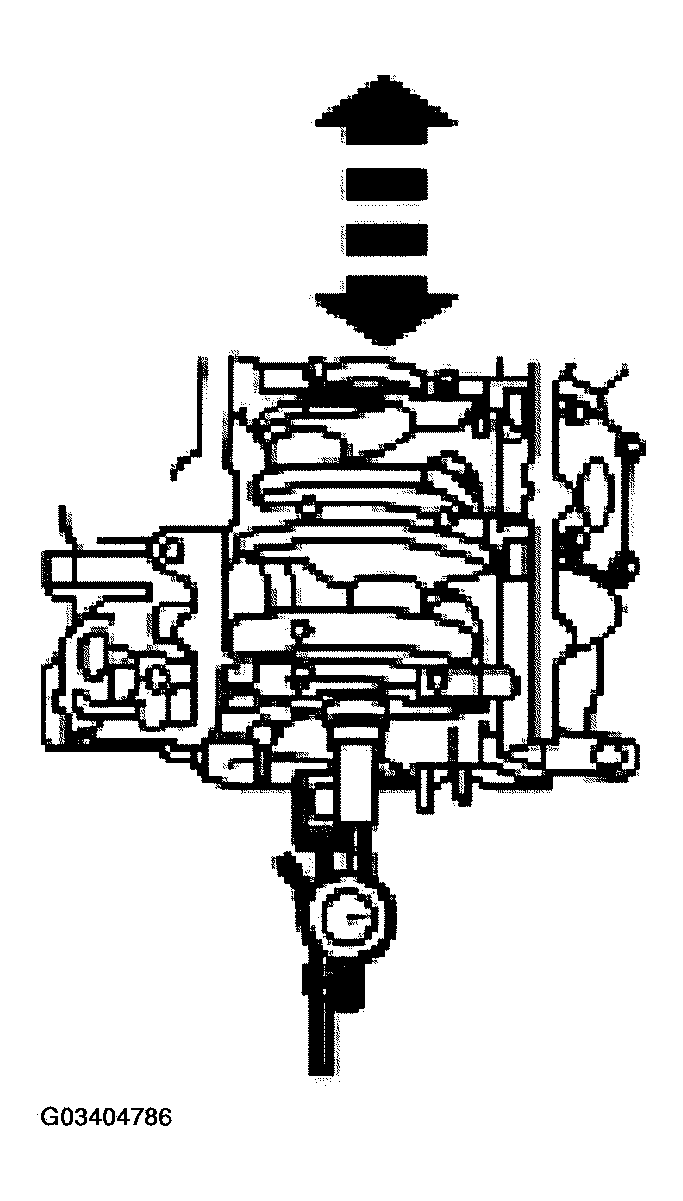

- Measure the crankshaft end play. Use a Dial Indicator with Bracketry to measure crankshaft end play.
- Position the crankshaft to the rear of the cylinder block.
- Zero the indicator.
- Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
- If crankshaft end play exceeds specifications, install a new crankshaft thrust washer (6334) or crankshaft thrust main bearing (6337). Refer to the appropriate ENGINE article for the procedure.
