Camshaft Journal - Clearance, Push Rod Engines, Micrometer Method

WARNING: This page is about a different car, the 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The camshaft journals must meet specifications before checking camshaft journal clearance.
  1. Measure each camshaft bearing (6261) in two directions.
    • Subtract the camshaft journal diameter from the camshaft bearing diameter.

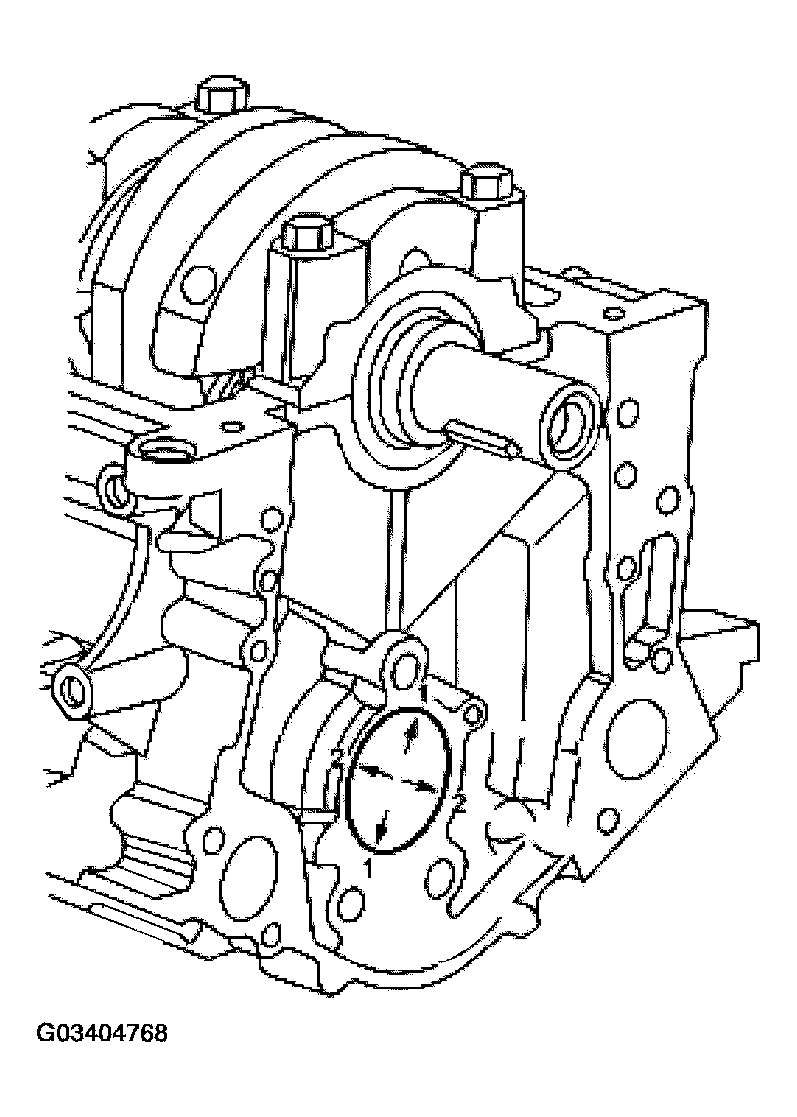

      Fig 1: Measuring Camshaft Bearing Dimension
      G03404768Courtesy of FORD MOTOR CO.
