Camshaft - End Play, Push Rod Engines

WARNING: This page is about a different car, the 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Special Tool(s)
G03404771Courtesy of FORD MOTOR CO.
  1. Remove the valve tappets. Refer to the appropriate ENGINE article for the procedure.
  2. Use a Dial Indicator with Bracketry to measure camshaft end play.
  3. Position the camshaft to the rear of the cylinder block.
  4. Zero the indicator.
  5. Move the camshaft to the front of the cylinder block. Note and record the camshaft end play.
    • If the camshaft end play exceeds specifications, install a new camshaft thrust plate. Refer to the appropriate ENGINE article for the procedure.

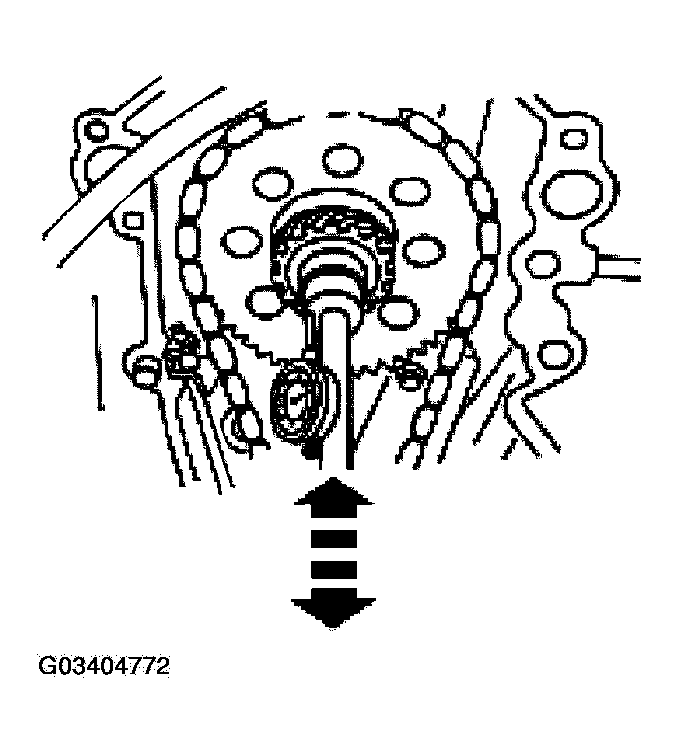

      Fig 2: Recording Camshaft End Play
      G03404772Courtesy of FORD MOTOR CO.
