Sector Shaft Arm Drag Link: Removal

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Replace the steering sector shaft arm drag link (3304) or tie rod end (3A131) if the following conditions are present:

Ball stud is excessively loose in the socket of the tie rod end.
Steering sector shaft arm drag link is bent.
Taper for the tie rod end is loose.

Replace the front suspension steering ball stud dust seal (3332) if any nicks, cuts or tears are present. Do not attempt to straighten a steering sector shaft arm drag link or tie rod end.

Remove the steering drag link castellated nuts.
1. Remove the cotter pins and discard.
2. Remove the castellated nuts.

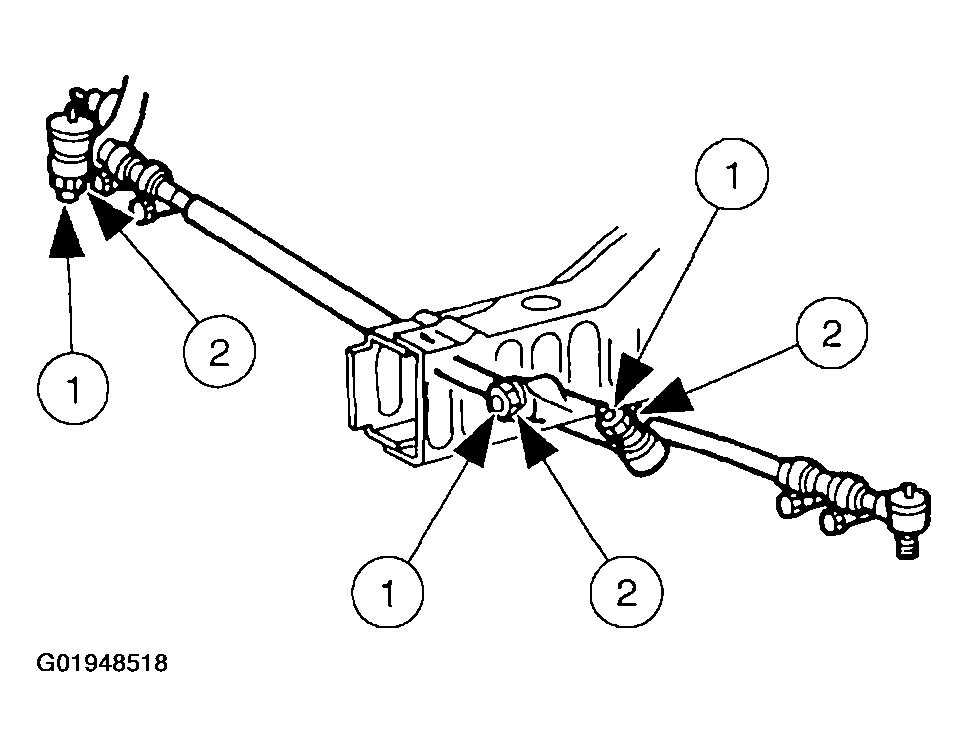

  Fig 1: Removing Steering Drag Link Castellated Nuts
  Courtesy of FORD MOTOR CO.
Remove the outer tie rod end from the RH steering knuckle. For additional information, refer to TIE ROD END - OUTER .
Remove the LH inner tie rod end from the steering sector shaft arm drag link. For additional information, refer to TIE ROD END - INNER .
Remove the steering sector shaft arm drag link castellated nut.
1. Remove and discard the cotter pin.
2. Remove the nut.

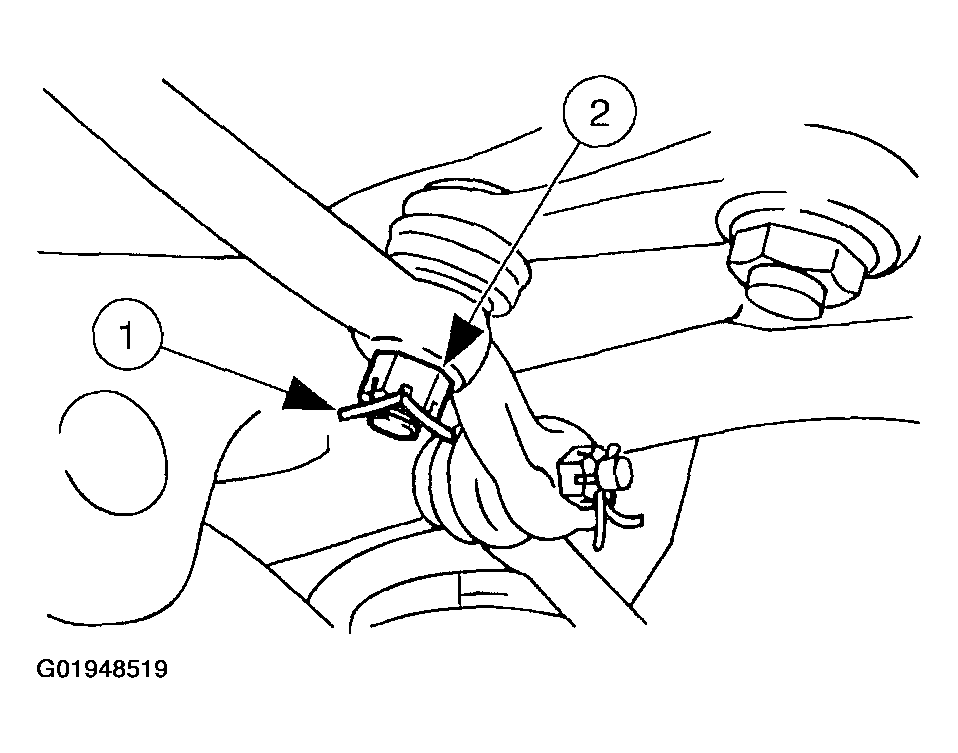

  Fig 2: Removing cotter pin
  Courtesy of FORD MOTOR CO.
Using the Pitman Arm Puller, separate the steering sector shaft arm drag link.

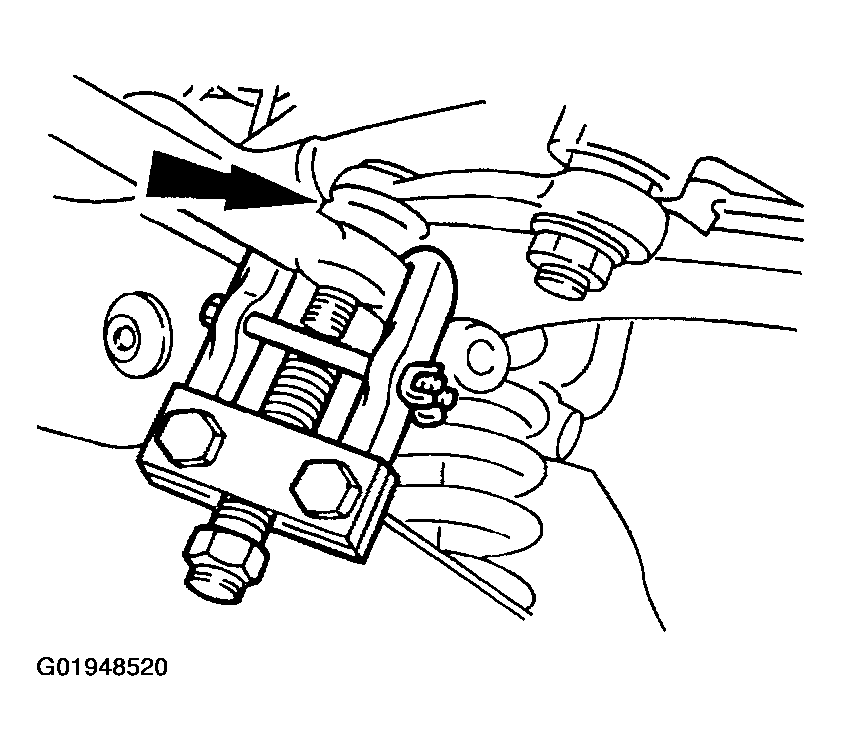

Fig 3: Removing Steering Sector Shaft Arm Drag Link
Courtesy of FORD MOTOR CO.
Remove the tie rod adjusting sleeve (3281) from the drag link. Count the number of turns required to remove the tie rod adjusting sleeve.
