Removal And Installation: Reservoir: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the return hose from the power steering pump (3A674) and drain the power steering oil reservoir (3A697).

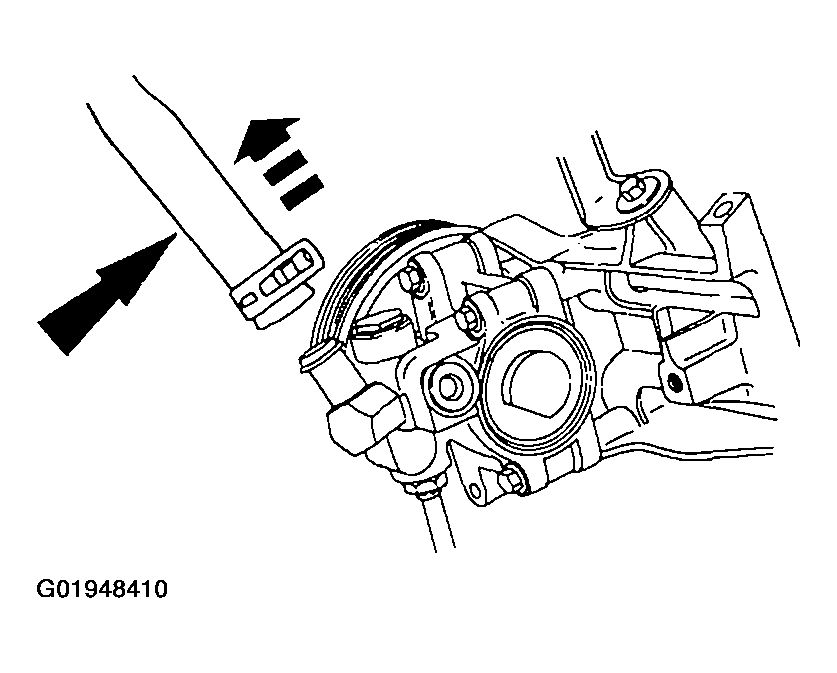

    Fig 1: Removing Return Hose From Power Steering Pump Tightening
    G01948410Courtesy of FORD MOTOR CO.
  3. Lower the vehicle.
  4. Lift the reservoir out of the reservoir bracket.
  5. Compress clamps and disconnect the power steering return hose (3A713) and the power steering reservoir pump hose (3691).
  6. Remove the power steering oil reservoir.
    Fig 2: Removing Power Steering Oil Reservoir
    G01948411Courtesy of FORD MOTOR CO.
