Pulley - Pump: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pump (3A674). For additional information, refer to Pump .
  2. Hold the Steering Pump Pulley Remover and rotate the forcing bolt to remove the power steering pump pulley.

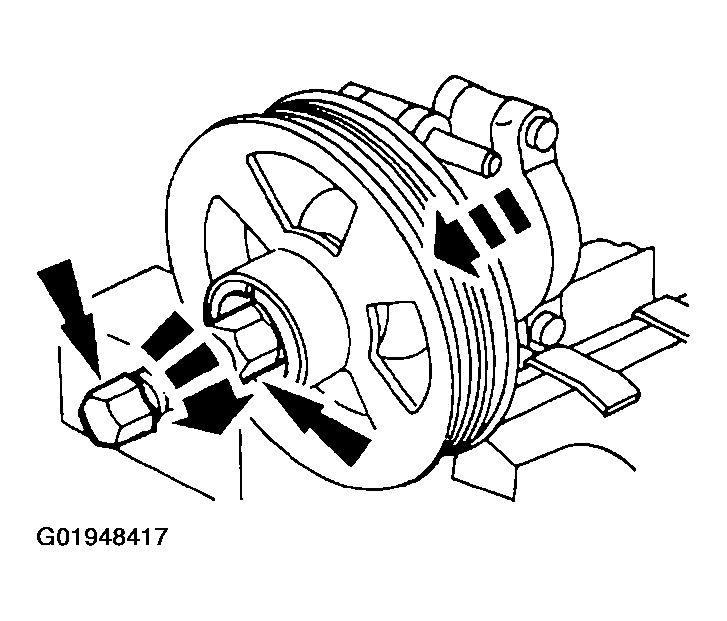

    Fig 1: Removing Power Steering Pump Pulley
    G01948417Courtesy of FORD MOTOR CO.
