Pulley - Pump: Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Thread the forcing bolt into the power steering pump and turn the Steering Pump Pulley Replacer to install the pump pulley.

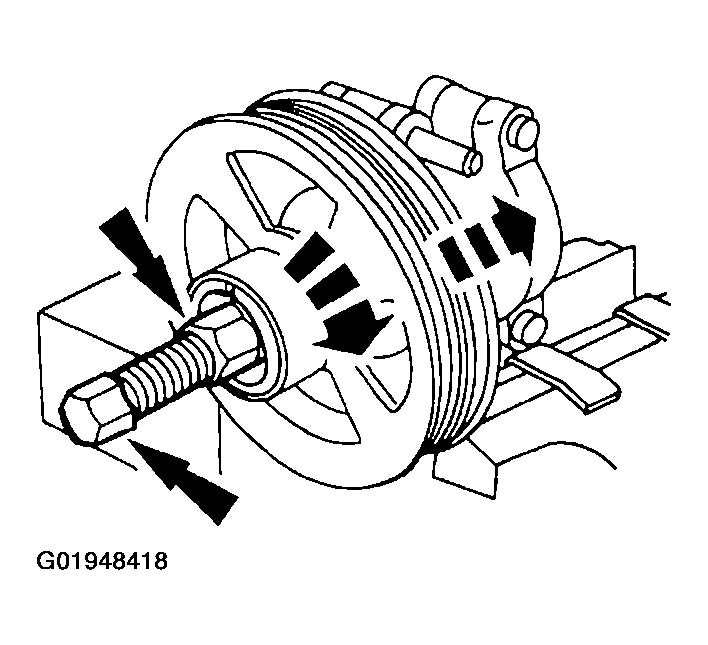

    Fig 1: Installing Power Steering Pump Pulley
    G01948418Courtesy of FORD MOTOR CO.
  2. Install the power steering pump. For additional information, refer to Pump .
