Power Steering Pump
WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

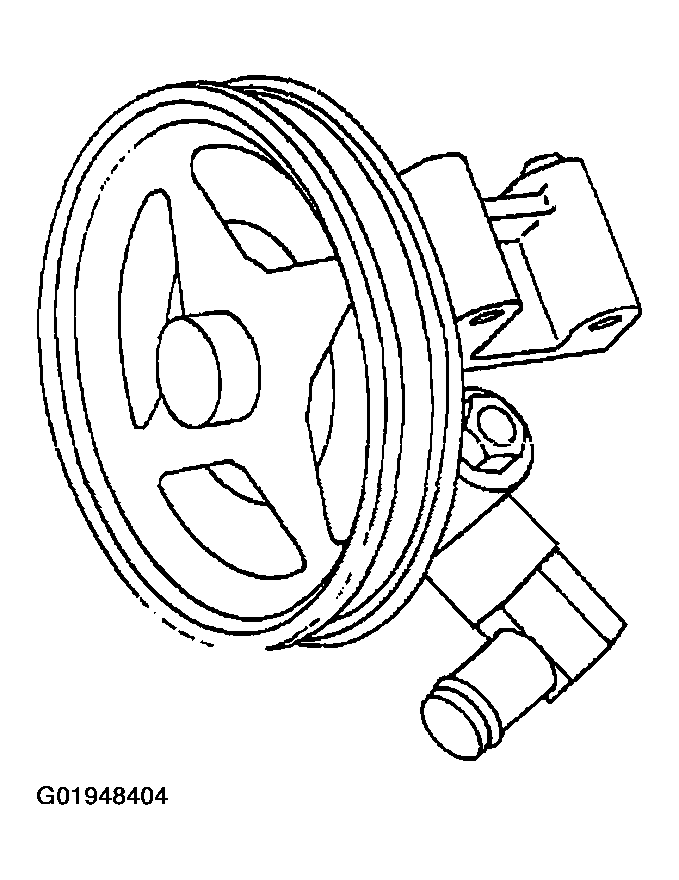

The CIII Power steering pump (3A674) has the following features:
- It is a belt-driven, vane-type, power steering pump.
- It is mounted directly to the engine block by three bolts
- The power steering pump is replaced as an assembly.
- An identification tag attached to the power steering pump indicates the model number and bar code. Refer to these when pump replacement is required.
- The power steering pump uses a quick connect fitting for the power steering pressure hose.

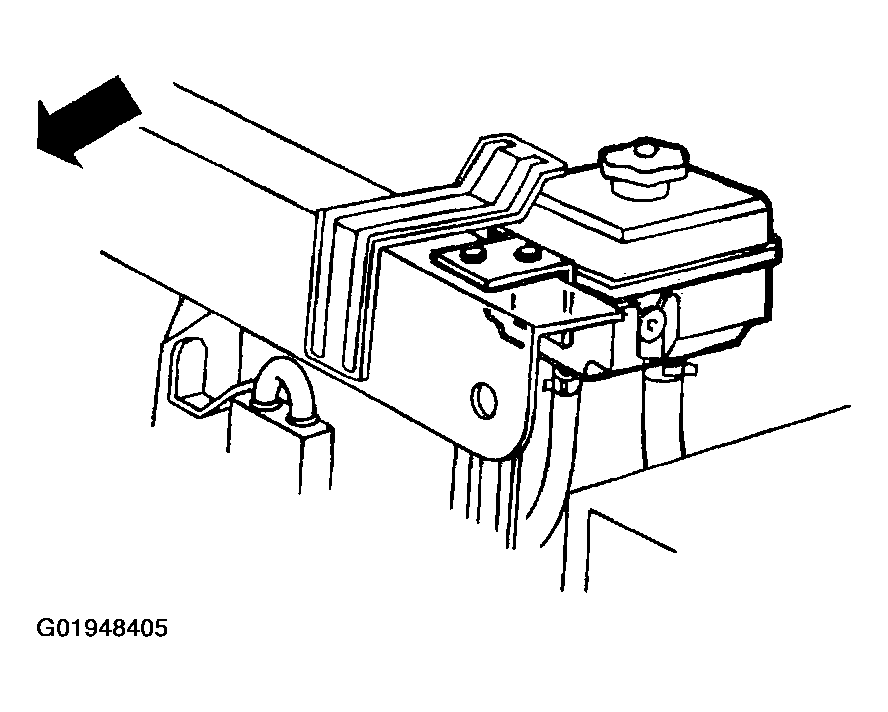

- The power steering oil reservoir (3A697) is mounted on the LH side of the upper radiator support crossmember.
