Special Tool(s)

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Special Tool
G01948565Courtesy of FORD MOTOR CO.
    NOTE: The engine should not be running.
    Fig 2: Identifying Steering Wheel
    G01948566Courtesy of FORD MOTOR CO.
  1. Turn the steering wheel from right lock to left lock at least once.
  2. Remove the driver air bag; for additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  3. Raise and support the vehicle.
  4. Remove the castellated nut.
    1. Remove the cotter pin.
    2. Remove the castellated nut.

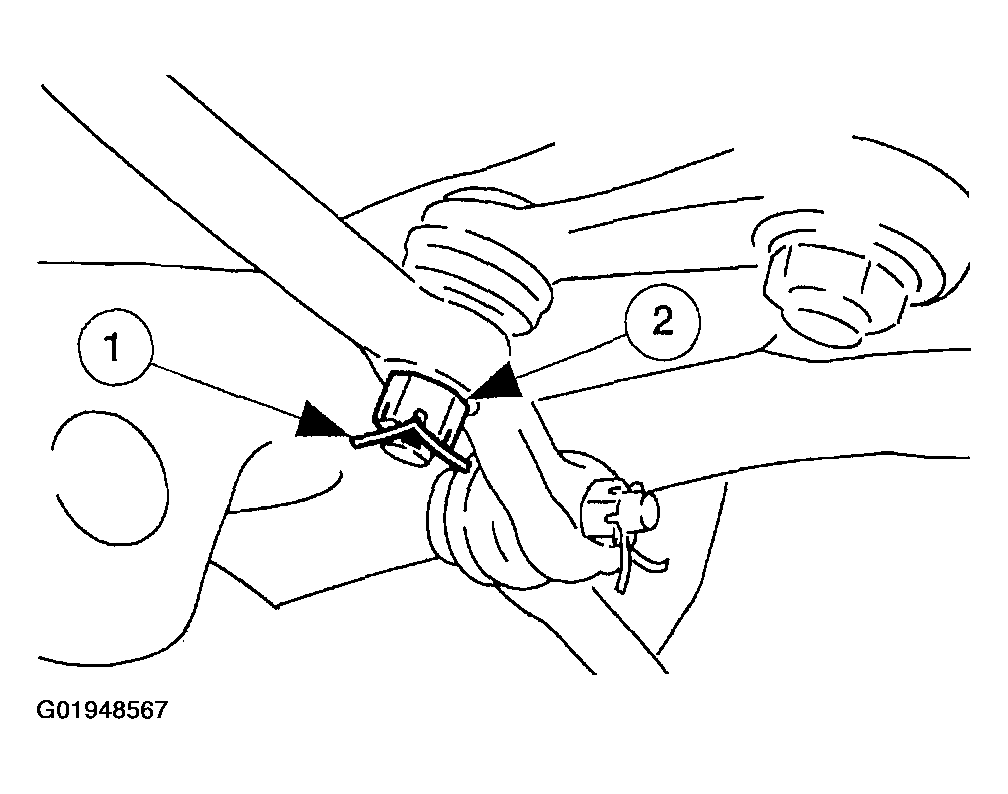

    Fig 3: Removing Castellated Nut
    G01948567Courtesy of FORD MOTOR CO.
  5. Separate the steering sector shaft arm drag link.
    • Use the Pitman Arm Puller to separate the steering sector shaft arm drag link.

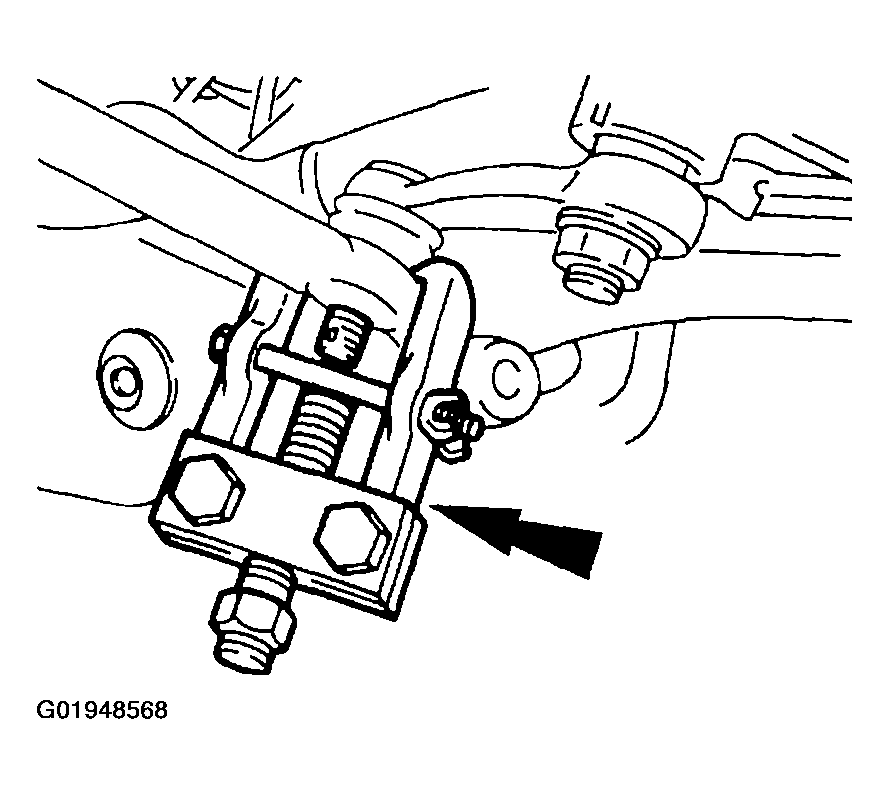

    Fig 4: Removing Steering Sector Shaft Arm Drag Link
    G01948568Courtesy of FORD MOTOR CO.
  6. NOTE: The front wheels should not touch the ground.
  7. Lower and support the front of the vehicle.
  8. NOTE: Reset the steering gear meshload only if the measured rotating torque for total on-center load is less than specification.
    Fig 5: Measuring Steering Gear Meshload From Center
    G01948569Courtesy of FORD MOTOR CO.
  9. Attach a lb/in torque wrench to the bolt and measure the steering gear meshload from center.
  10. Adjust if not within specification.

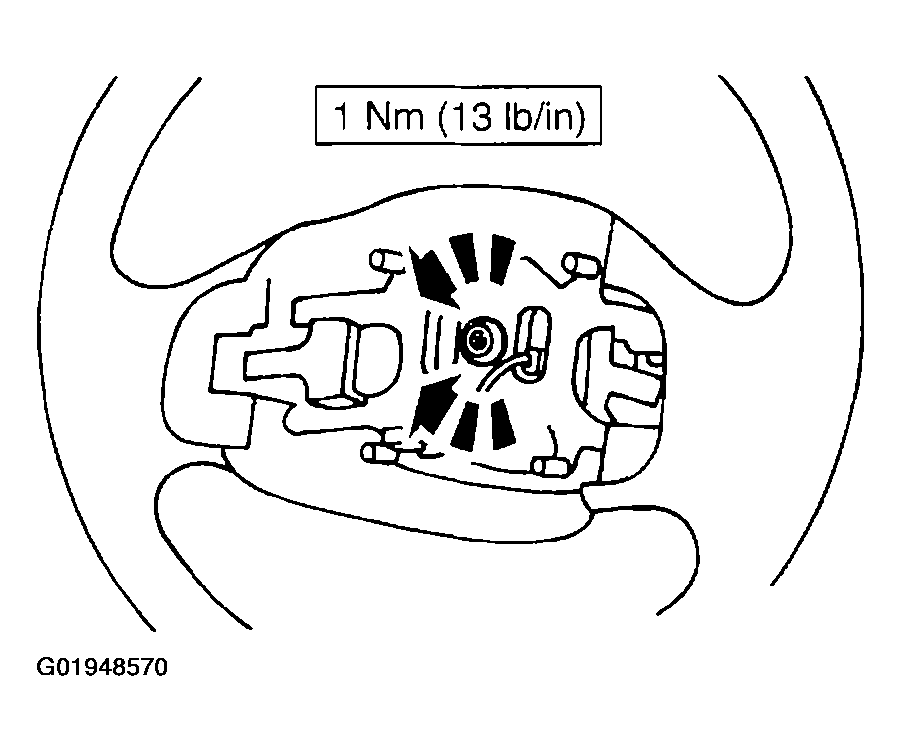

    Fig 6: Adjusting Steering Gear Meshload
    G01948570Courtesy of FORD MOTOR CO.
  11. Adjust the sector shaft to proper rotating torque.
    1. Hold the sector shaft and loosen the lock nut.
    2. Adjust the sector shaft.
    Fig 7: Adjusting Sector Shaft
    G01948571Courtesy of FORD MOTOR CO.
  12. Verify that the rotating torque is to specification.
    • Reset if necessary.

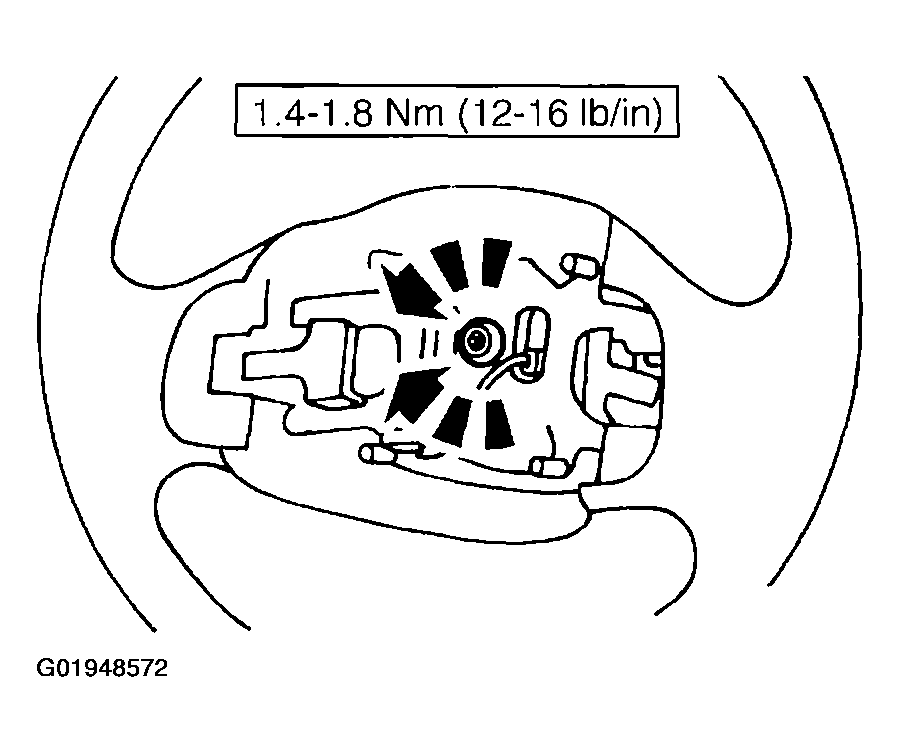

    Fig 8: Adjusting Steering Gear Meshload
    G01948572Courtesy of FORD MOTOR CO.
  13. Tighten the lock nut.
    1. Hold the sector shaft.
    2. Tighten the lock nut.

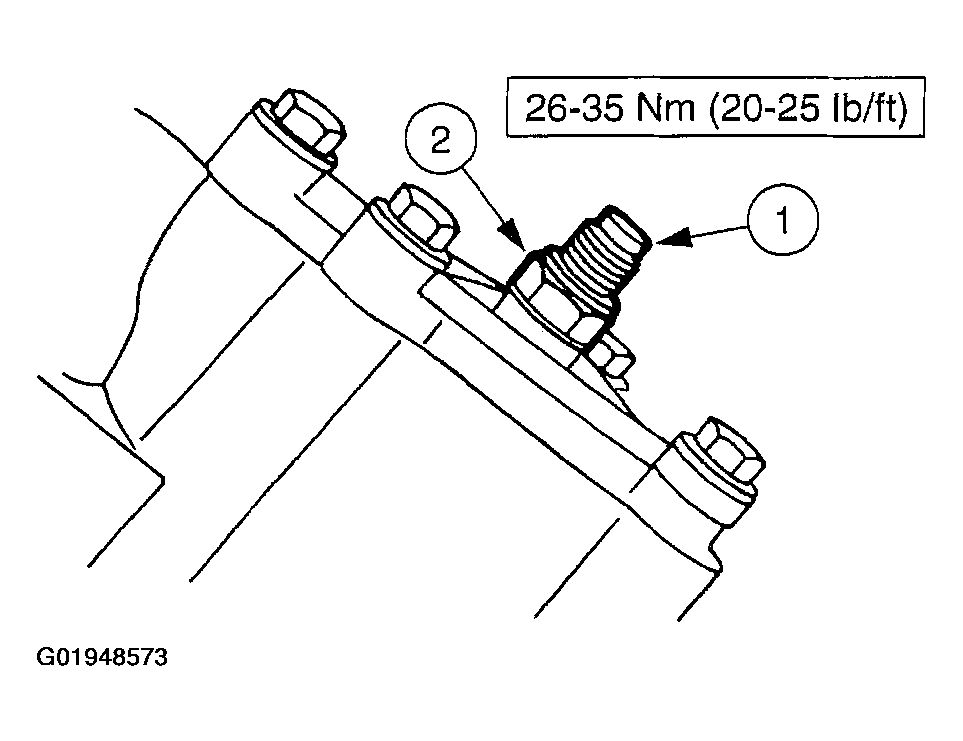

      Fig 9: Tightening Lock Nut
      G01948573Courtesy of FORD MOTOR CO.
  14. Install the steering sector shaft arm drag link, castellated nut and cotter pin.
    Fig 10: Installing Steering Sector Shaft Arm Drag Link
    G01948574Courtesy of FORD MOTOR CO.
  15. Lower the vehicle.
  16. Install the driver air bag; for additional information, refer to AIR BAG RESTRAINT SYSTEMS .
