Steering System

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The steering system consists of the following:

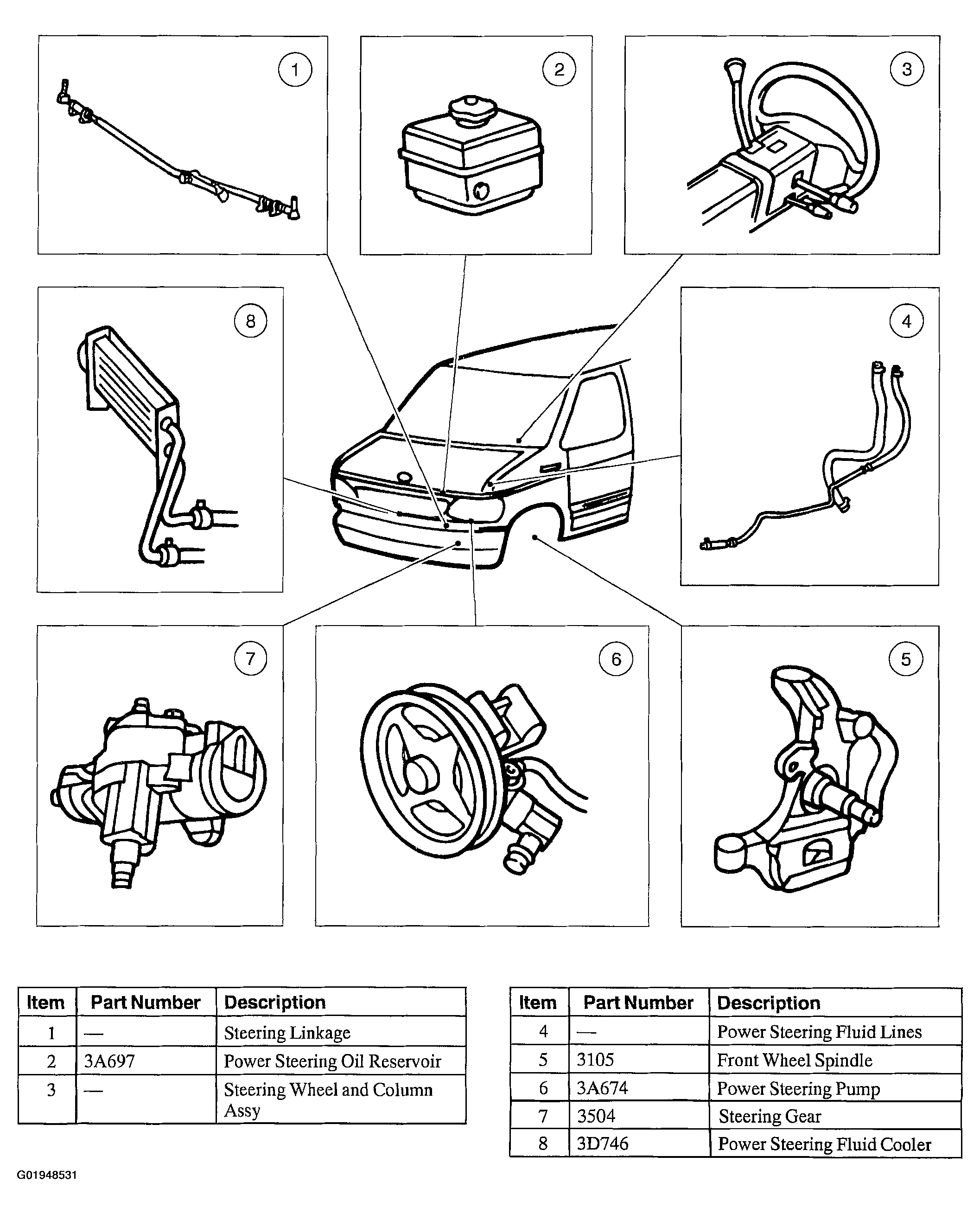

Fig 1: Identifying Steering System Components

Courtesy of FORD MOTOR CO.

For additional information on the power steering oil reservoir (3A697), refer to POWER STEERING .

For additional information on the steering wheel and column assembly, refer to STEERING COLUMN .

For additional information on the power steering fluid lines, refer to POWER STEERING .

For additional information on the front wheel spindles (3105), refer to FRONT .

For additional information on the power steering fluid cooler (3D746), refer to POWER STEERING .

For additional information on the power steering pump (3A674), refer to POWER STEERING .

For additional information on the steering gear (3504), refer to POWER STEERING .

For additional information on the steering linkage, refer to STEERING LINKAGE .
