Removal and Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle.
    NOTE: Clean off dirt and debris that may have collected around the rear anti- lock brake sensor before removal.
  2. Remove the rear anti-lock brake sensor.
    1. Disconnect the rear anti-lock brake sensor electrical connector.
    2. Remove the bolt.
    3. Remove the rear anti-lock brake sensor.

    Under rear of vehicle, mounted on differential.

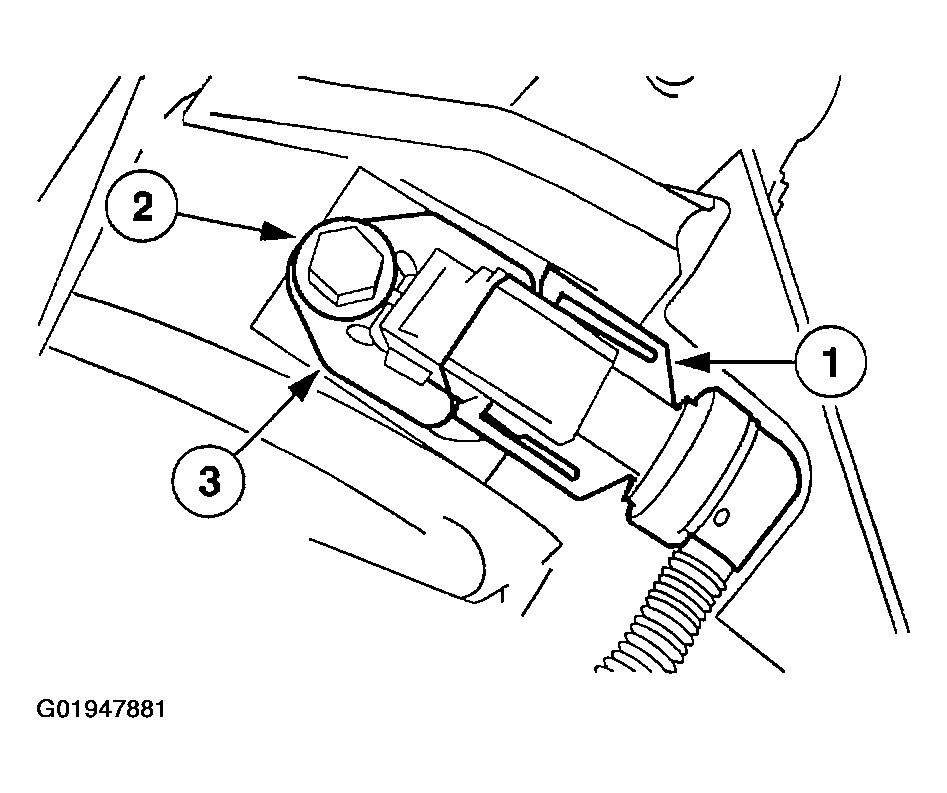

    Fig 1: Removing Rear Anti-Lock Brake Sensor
    G01947881Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
    NOTE: Thoroughly clean the mounting surface.
    NOTE: Inspect the anti-lock brake sensor O-ring for damage; lightly lubricate the O-ring with SAE-75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.

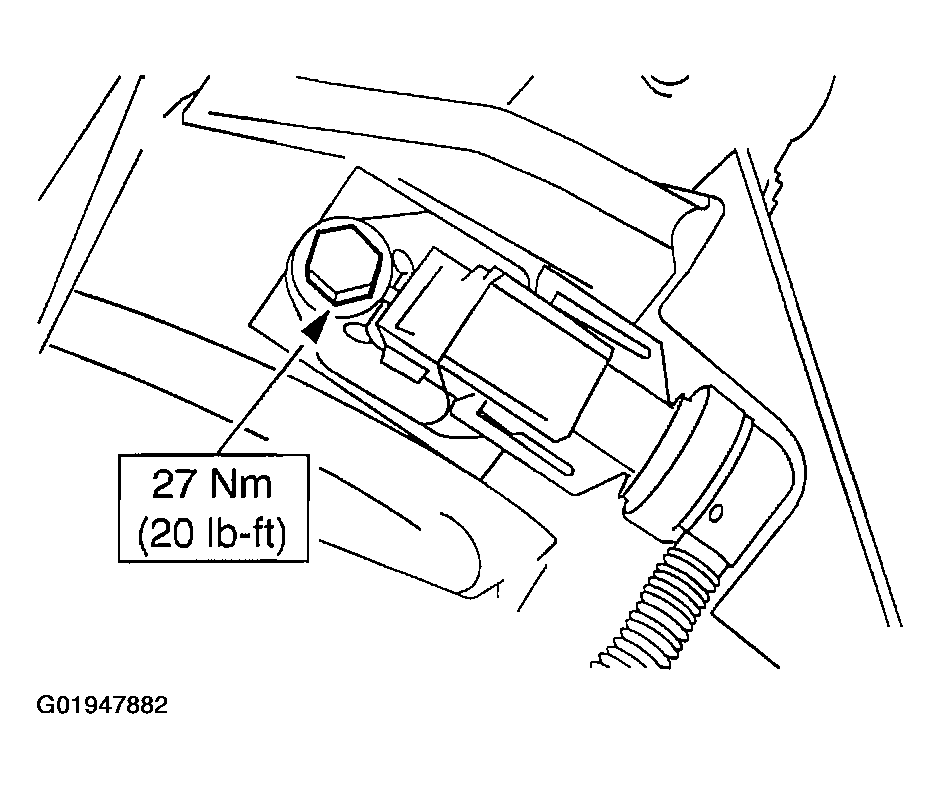

    Fig 2: Installing Rear Anti-Lock Brake Sensor
    G01947882Courtesy of FORD MOTOR CO.
