Sensor - Front, E-250, E-350: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front disc brake rotor; refer to DISC & DRUM .
  2. Detach the front anti-lock brake sensor wire from the front brake hose.
    1. Disconnect the front anti-lock brake sensor electrical connector.
    2. Detach the front anti-lock brake sensor wire from the front brake hose.

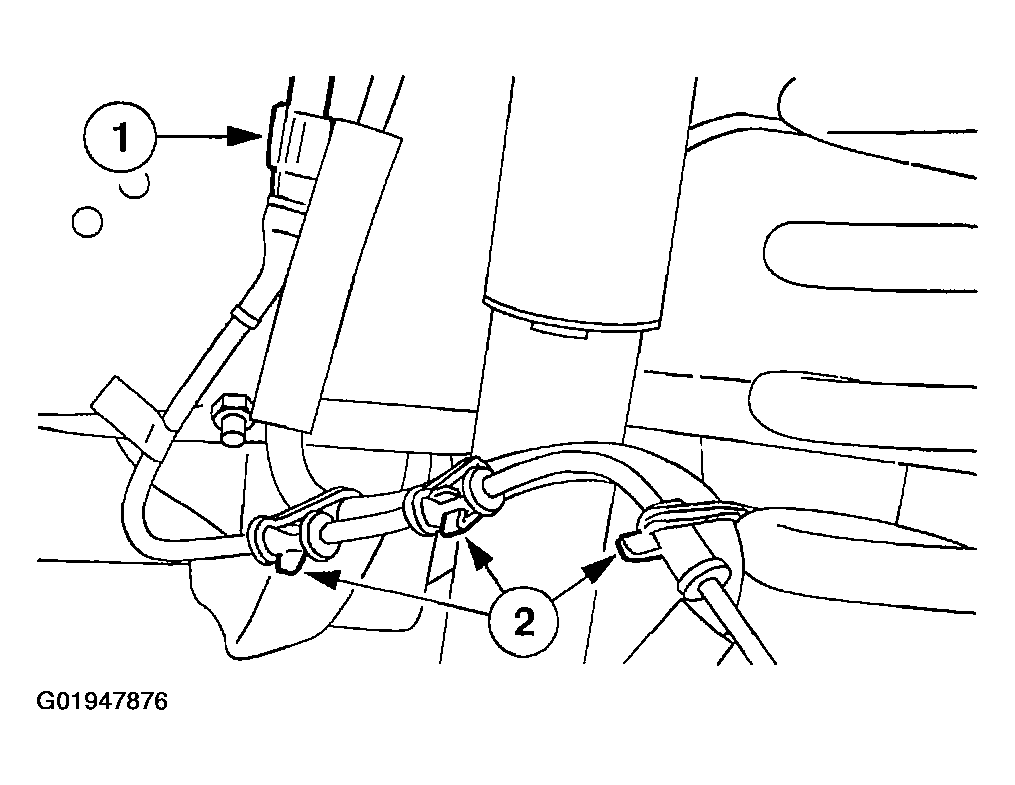

      Fig 1: Detaching Front Anti-Lock Brake Sensor Wire From Front Brake Hose
      G01947876Courtesy of FORD MOTOR CO.
  3. Remove the bolt.

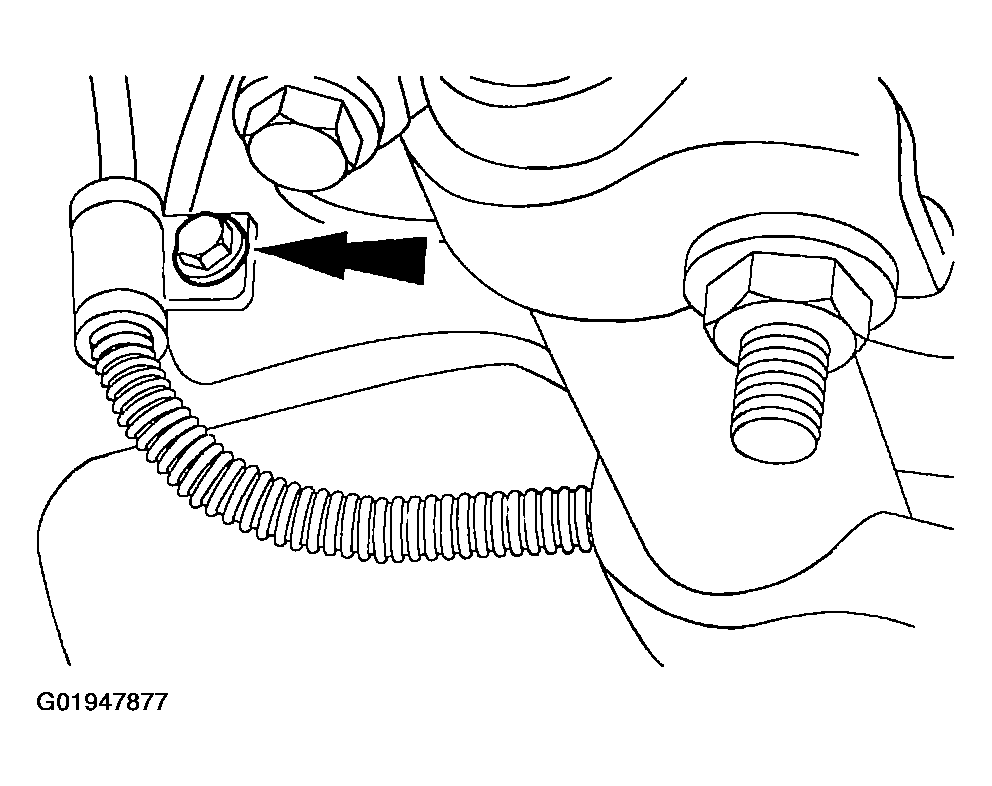

    Fig 2: Removing Sensor Harness Retaining Bracket Bolt
    G01947877Courtesy of FORD MOTOR CO.
  4. Remove the front anti-lock brake sensor.
    1. Remove the front anti-lock brake sensor bolts.
    2. Remove the front anti-lock brake sensor.

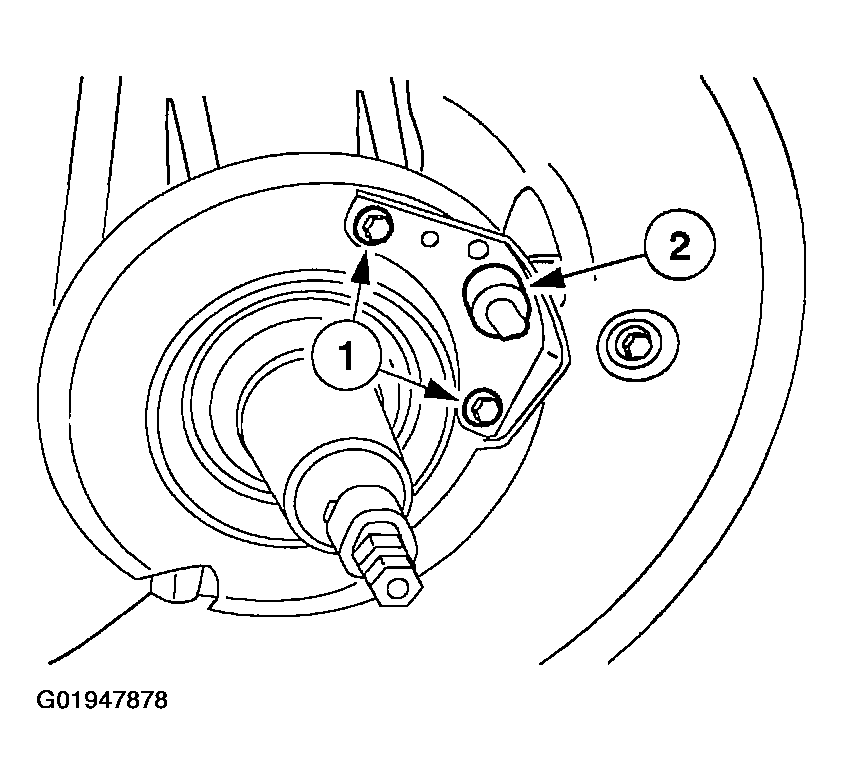

    Fig 3: Removing Front Anti-Lock Brake Sensor Bolts
    G01947878Courtesy of FORD MOTOR CO.
