Sensor - Front, E-150: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach the front anti-lock brake sensor wire from the front brake hose.

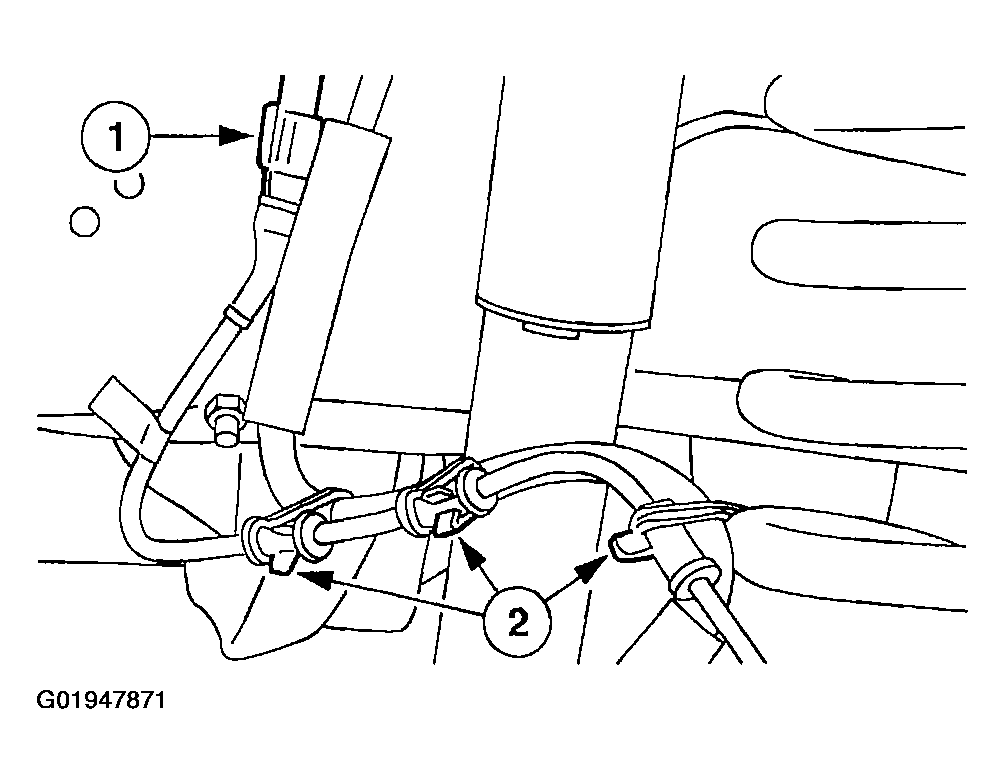

    1. Disconnect the front anti-lock brake sensor electrical connector.
    2. Detach the front anti-lock brake sensor wire from the front brake hose.
    Fig 1: Disconnecting Front Anti-Lock Brake Sensor Wire From Front Brake Hose
    G01947871Courtesy of FORD MOTOR CO.

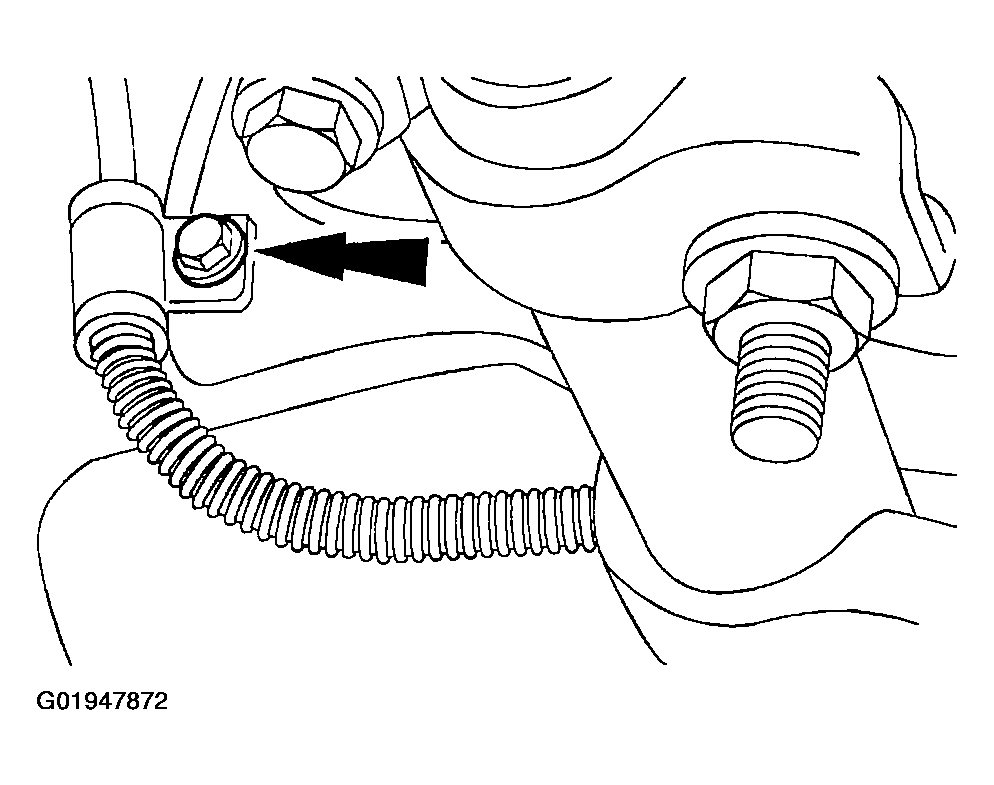

  2. Remove the bolt.
    Fig 2: Removing Sensor Wire Retaining Bracket Bolt
    G01947872Courtesy of FORD MOTOR CO.
  3. Remove the (A) front anti-lock brake sensor bolt and the (B) front anti-lock brake sensor.
    Fig 3: Removing Front Anti-Lock Brake Sensor Bolt
    G01947873Courtesy of FORD MOTOR CO.
