Hydraulic Control Unit - (HCU): Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the battery (10655) is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

NOTE: Bleed the HCU after installation; refer to BRAKE SYSTEM-GENERAL INFORMATION .

To install, reverse the removal procedure.

Fig 1: Connecting Anti-Lock Brake Control Module Electrical Connectors
Courtesy of FORD MOTOR CO.

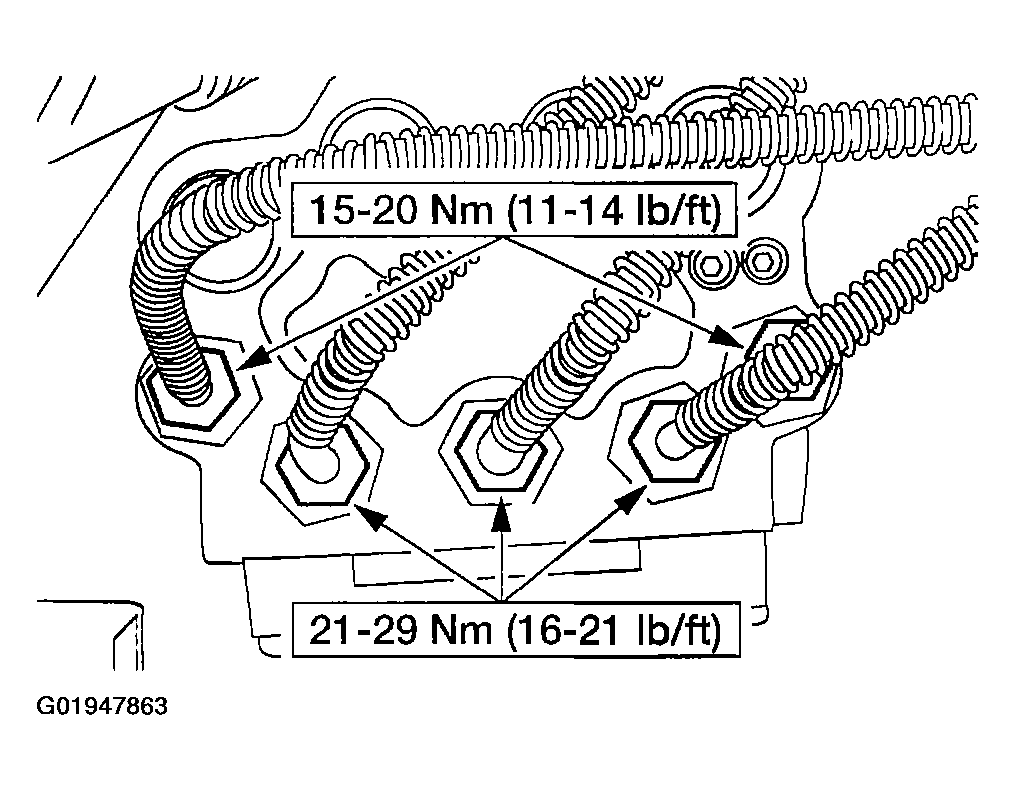

Fig 2: Connecting HCU Brake Lines
Courtesy of FORD MOTOR CO.

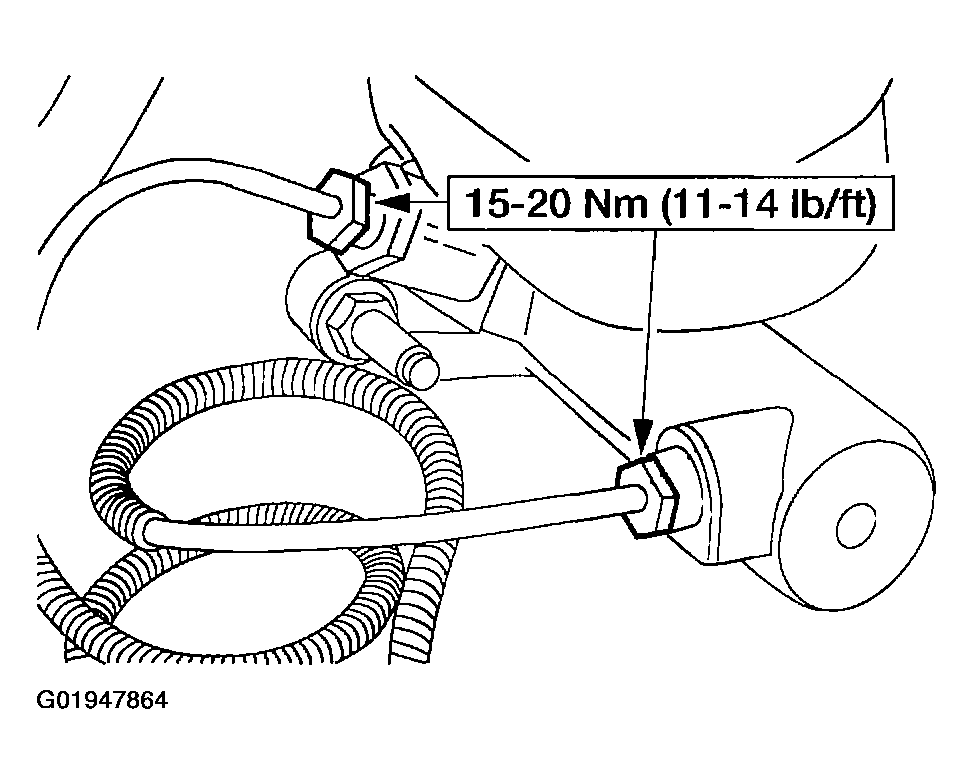

Fig 3: Connecting Brake Lines To Brake Master Cylinder
Courtesy of FORD MOTOR CO.

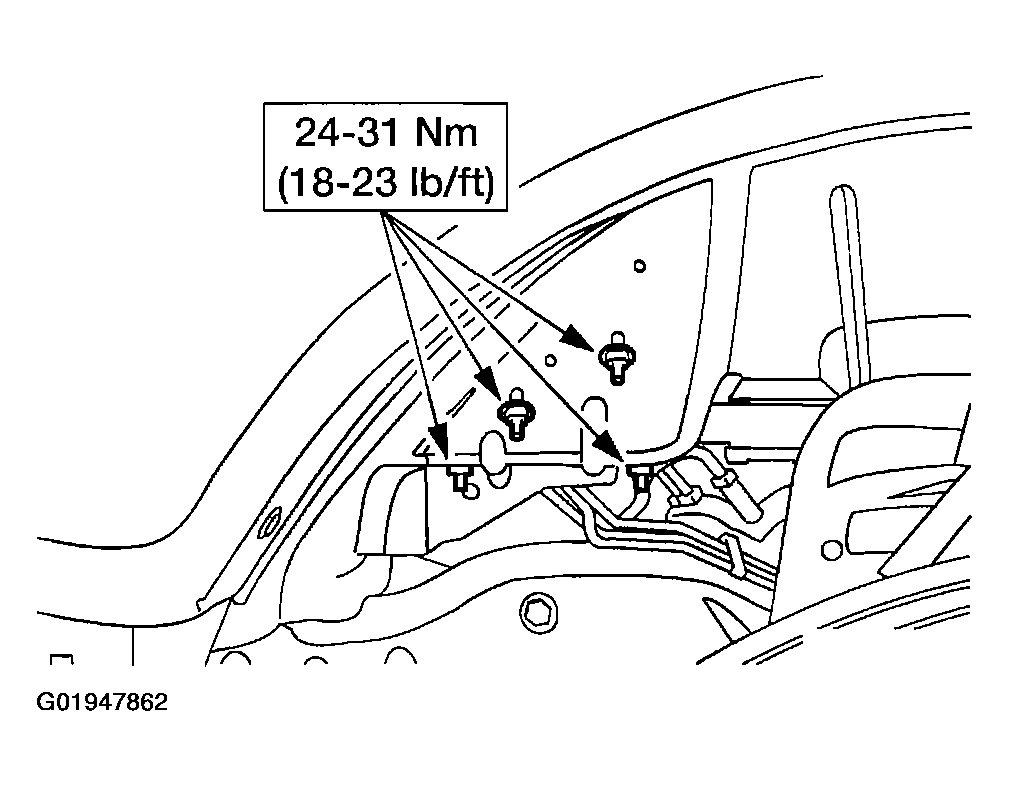

Fig 4: Installing Power Steering Pump Reservoir Bolts
Courtesy of FORD MOTOR CO.

Fig 5: Installing Radiator Coolant Recovery Reservoir
Courtesy of FORD MOTOR CO.
