Pinpoint Test C: Vibration When The Brakes Are Applied

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

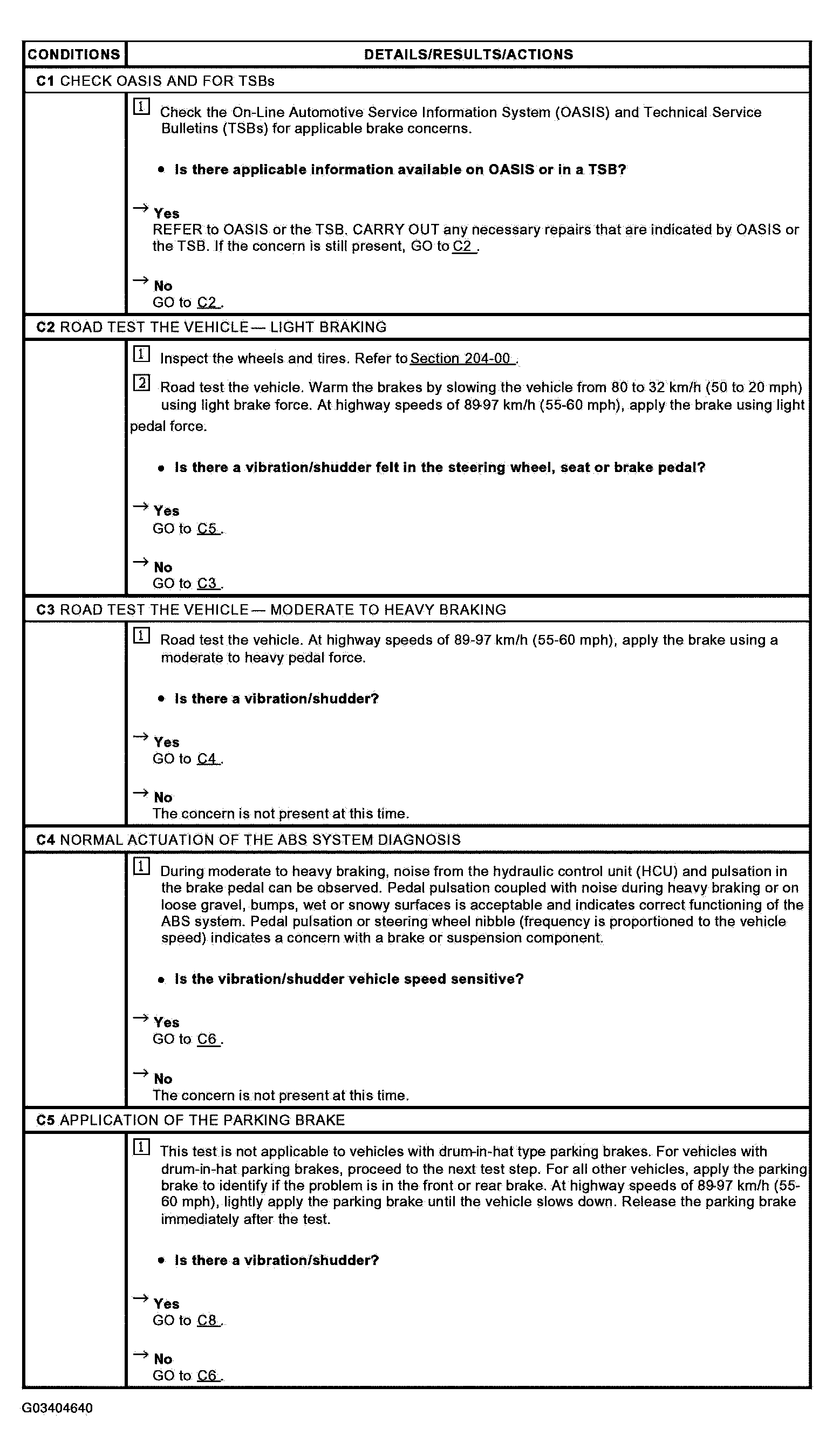

Fig 1: Pinpoint Test C: Vibration When Brakes Are Applied (C1-C5)
G03404640Courtesy of FORD MOTOR CO.

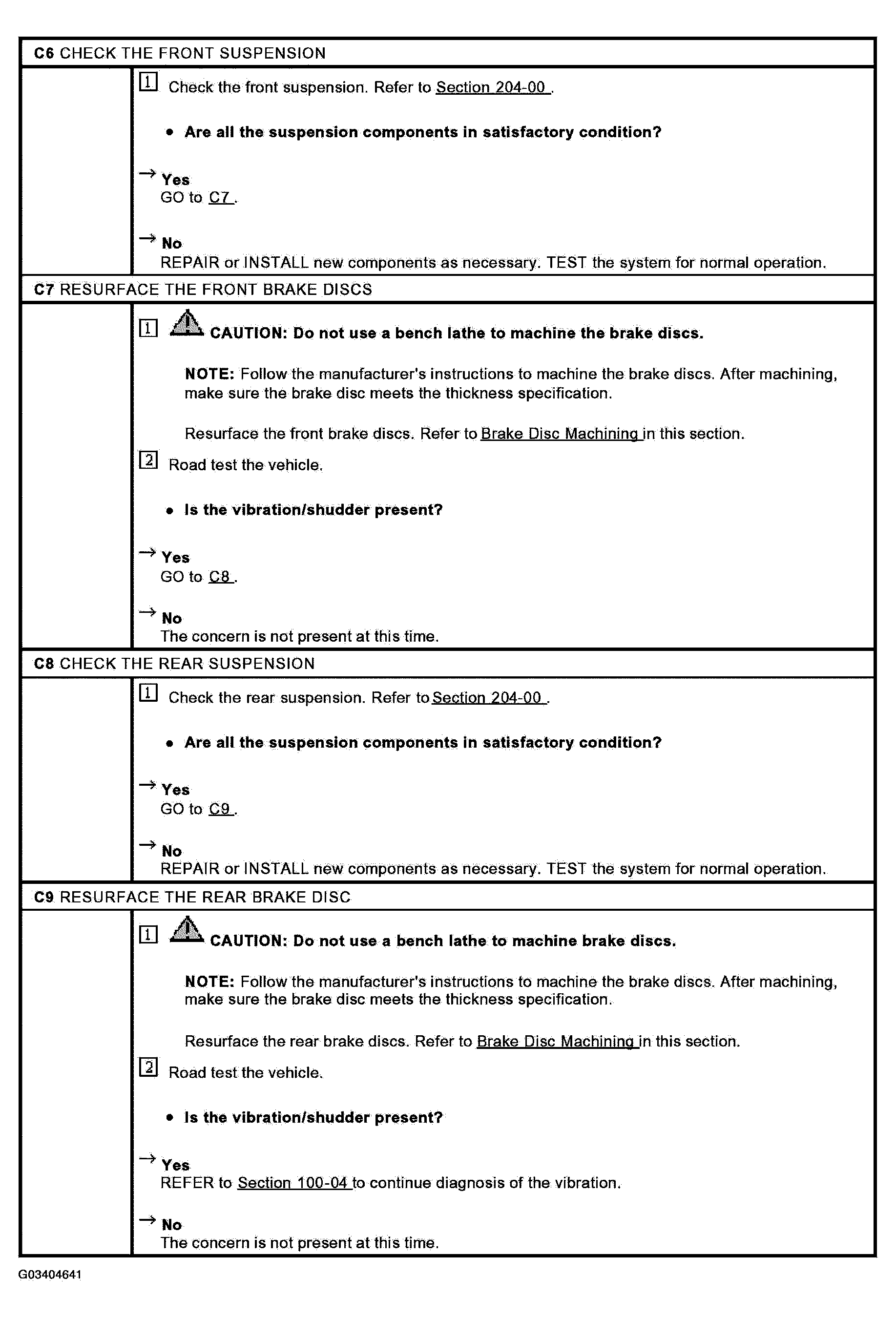

Fig 2: Pinpoint Test C: Vibration When Brakes Are Applied (C6-C9)
G03404641Courtesy of FORD MOTOR CO.
