Pinpoint Test B: Red Brake Warning Indicator Always On

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

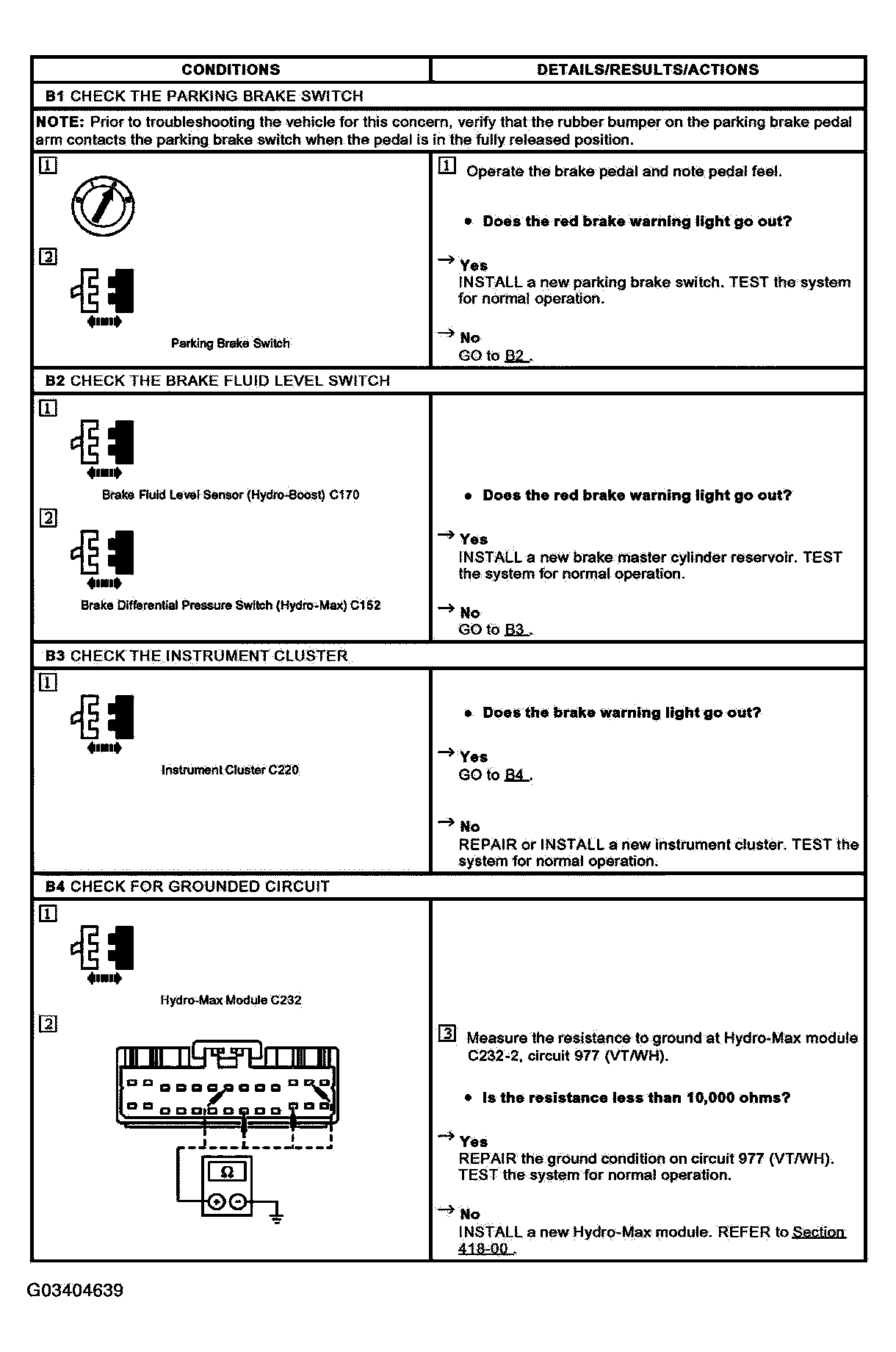

Fig 1: Pinpoint Test B: Red Brake Warning Indicator Always On (B1-B4)
G03404639Courtesy of FORD MOTOR CO.
