Rear Wheel Bearing and Axle Shaft Oil Seal: Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the new rear wheel bearing.
    • Use SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.
  2. Using the special tools, install the rear wheel bearing.

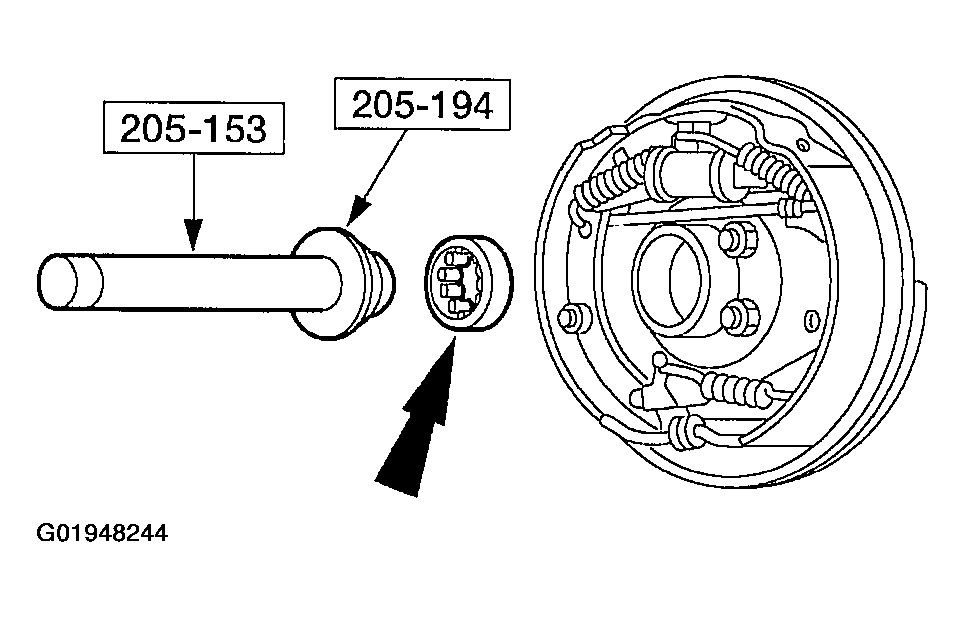

    Fig 1: Install Rear Wheel Bearing Using Special Tools
    G01948244Courtesy of FORD MOTOR CO.
  3. Lubricate the lip of the new wheel bearing oil seal.
    • Use Premium Long-Life Grease XG-1-C or equivalent meeting Ford specification ESA-M1C75-B.
  4. Using the special tools, install the wheel bearing oil seal.

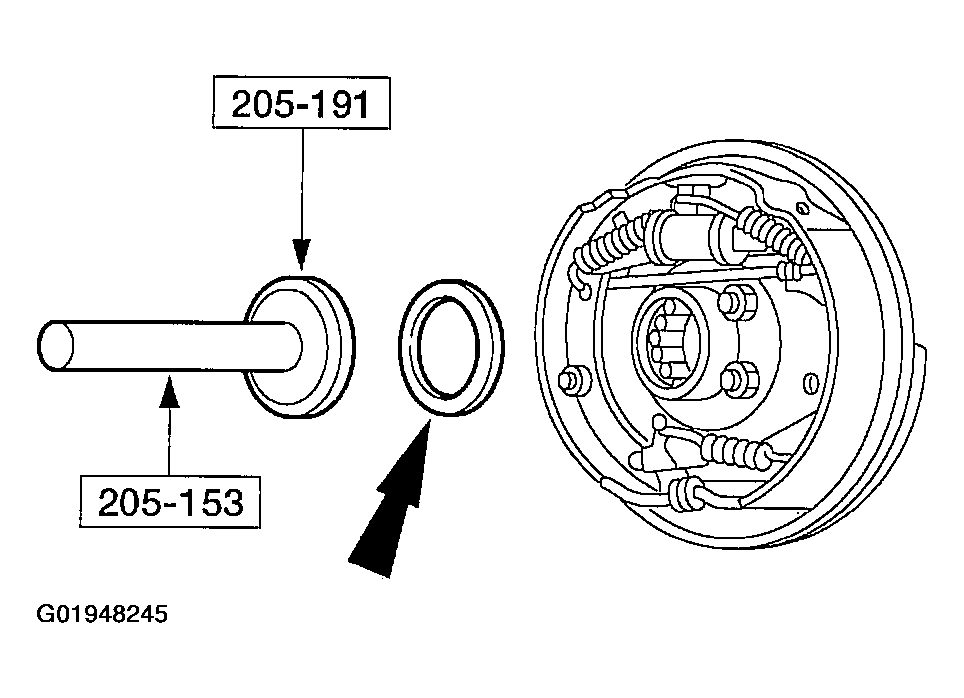

    Fig 2: Install Wheel Bearing Oil Seal Using Special Tools
    G01948245Courtesy of FORD MOTOR CO.
  5. Install the axle shafts. For additional information refer to AXLE SHAFT .
