Drive Pinion: Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

USING 205-024

  1. Position the special tools and the inner and outer bearing cups in their respective bores.
    1. After placing the inner and outer bearing cups in their bores, place the special tool (inner) on the inner pinion bearing cup.
    2. Place the special tool (outer) on the outer pinion bearing cup.
    3. Install the special tool.
    Fig 1: Installing Special Tool
    G01948279Courtesy of FORD MOTOR CO.
  2. Tighten the special tool to seat the pinion bearing cups into their bores.
    Fig 2: Tightening Special Tool To Seat Pinion Bearing Cups
    G01948280Courtesy of FORD MOTOR CO.

    USING 205-153, 205-231, 205-D055 AND 205-387

  3. Using the special tools, drive the outer pinion bearing cup into the rear axle housing.
    Fig 3: Installing Outer Pinion Bearing Cup
    G01948281Courtesy of FORD MOTOR CO.
  4. Using the special tools, drive the inner pinion bearing cup into the axle housing.

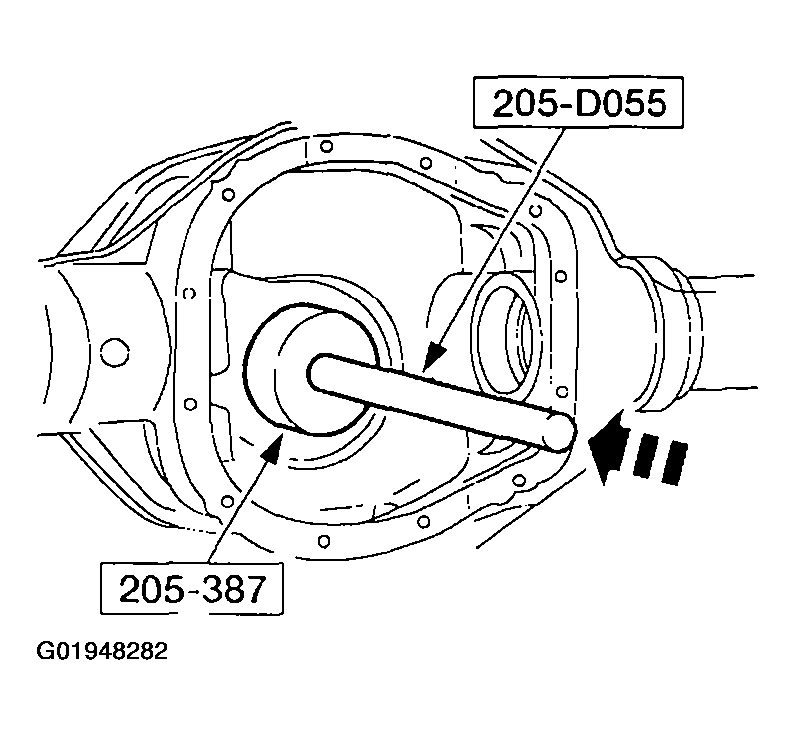

    Fig 4: Installing Inner Pinion Bearing Cup
    G01948282Courtesy of FORD MOTOR CO.

    SETTING PINION DEPTH

    5. CAUTION: Whenever the cups are removed, new differential pinion bearings must be installed.
    NOTE: If a feeler gauge of the specification shown in the illustration can be inserted between a cup and the bottom of its bore at any point around the cup, the cup is not correctly seated.

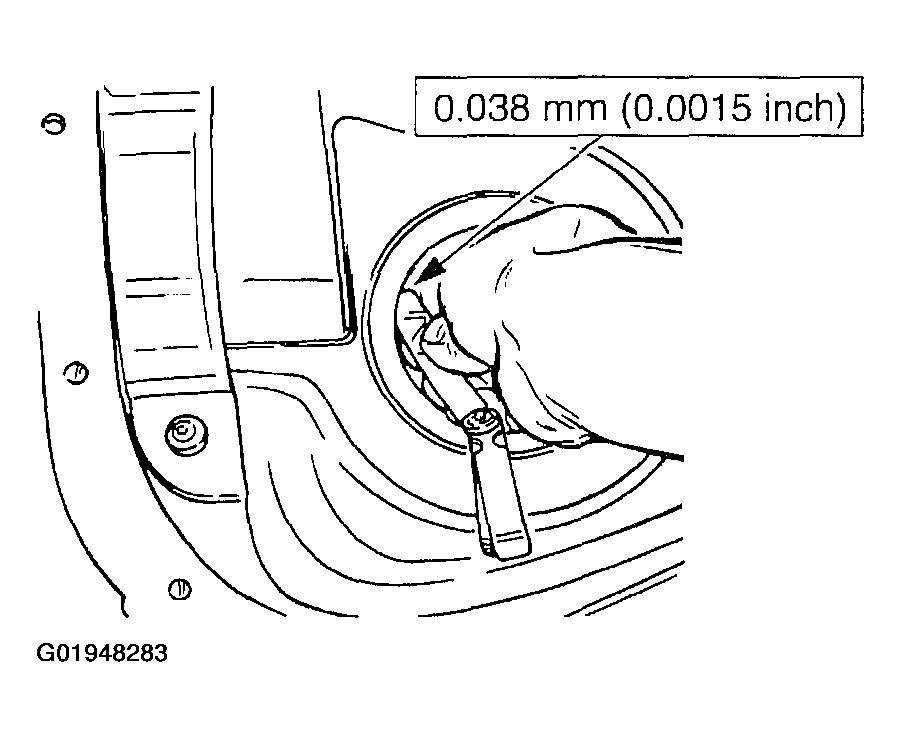

    Fig 5: Checking Bearing Cup Installation Using Feeler Gauge
    G01948283Courtesy of FORD MOTOR CO.
  5. Make sure the cups are correctly seated in their bores.
    6. NOTE: Apply only a light oil film on the pinion bearings before assembling the tool.

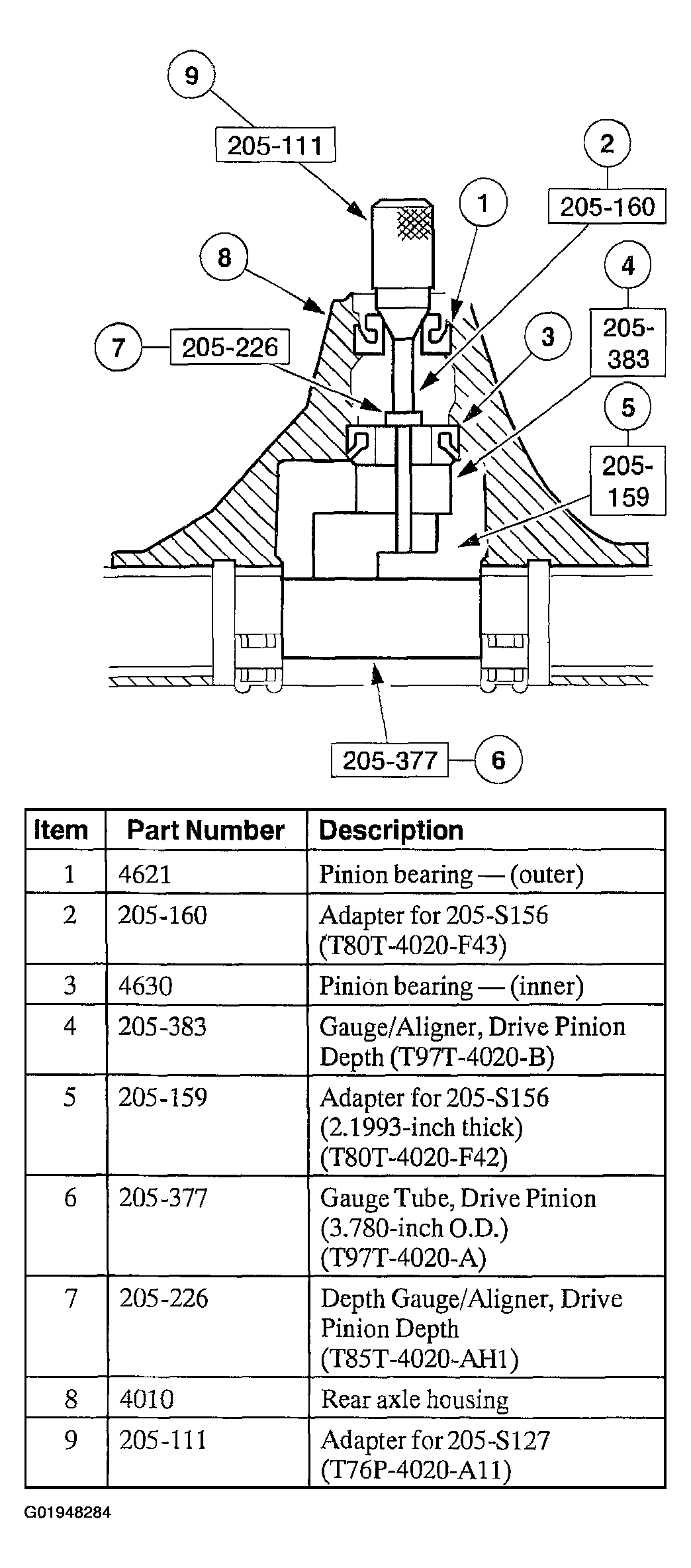

    Fig 6: Assembling & Positioning Special Tool
    G01948284Courtesy of FORD MOTOR CO.
  6. Assemble and position the special tools.
  7. Tighten the Handle.
    Fig 7: Tightening Handle
    G01948285Courtesy of FORD MOTOR CO.
    8. NOTE: The special tool must be offset to obtain an accurate reading.

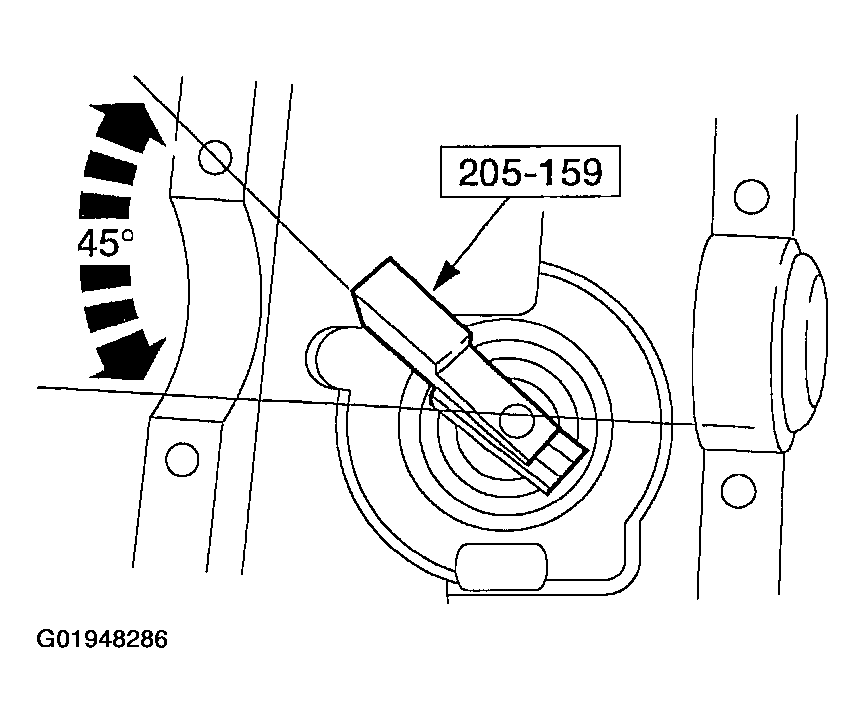

    Fig 8: Rotating Special Tool
    G01948286Courtesy of FORD MOTOR CO.
  8. Rotate the special tool several half-turns to make sure of correct seating of the pinion bearings, and position the special tool.
  9. Install the special tool.
    1. Position the special tool.
    2. Install the differential side bearing caps.
    3. Install the differential side bearing cap bolts.
    Fig 9: Installing Differential Side Bearing Cap Bolts
    G01948287Courtesy of FORD MOTOR CO.
    10. NOTE: Drive pinion bearing adjustment shims must be flat and clean.
    NOTE: A slight drag should be felt for correct shim selection. Do not attempt to force the pinion shim between the Gauge Block and the Gauge Tube. This will minimize selection of a pinion shim thicker than required, which results in a deep tooth contact in the final assembly of integral rear axle assemblies.
  10. Use a drive pinion bearing adjustment shim as a gauge for shim selection.
    • After the correct shim thickness has been determined remove the special tool.
      Fig 10: Identifying Drive Pinion Bearing Shims
      G01948288Courtesy of FORD MOTOR CO.
  11. Using a press and the special tool, press the pinion bearing until it is firmly seated on the pinion and pinion shim.

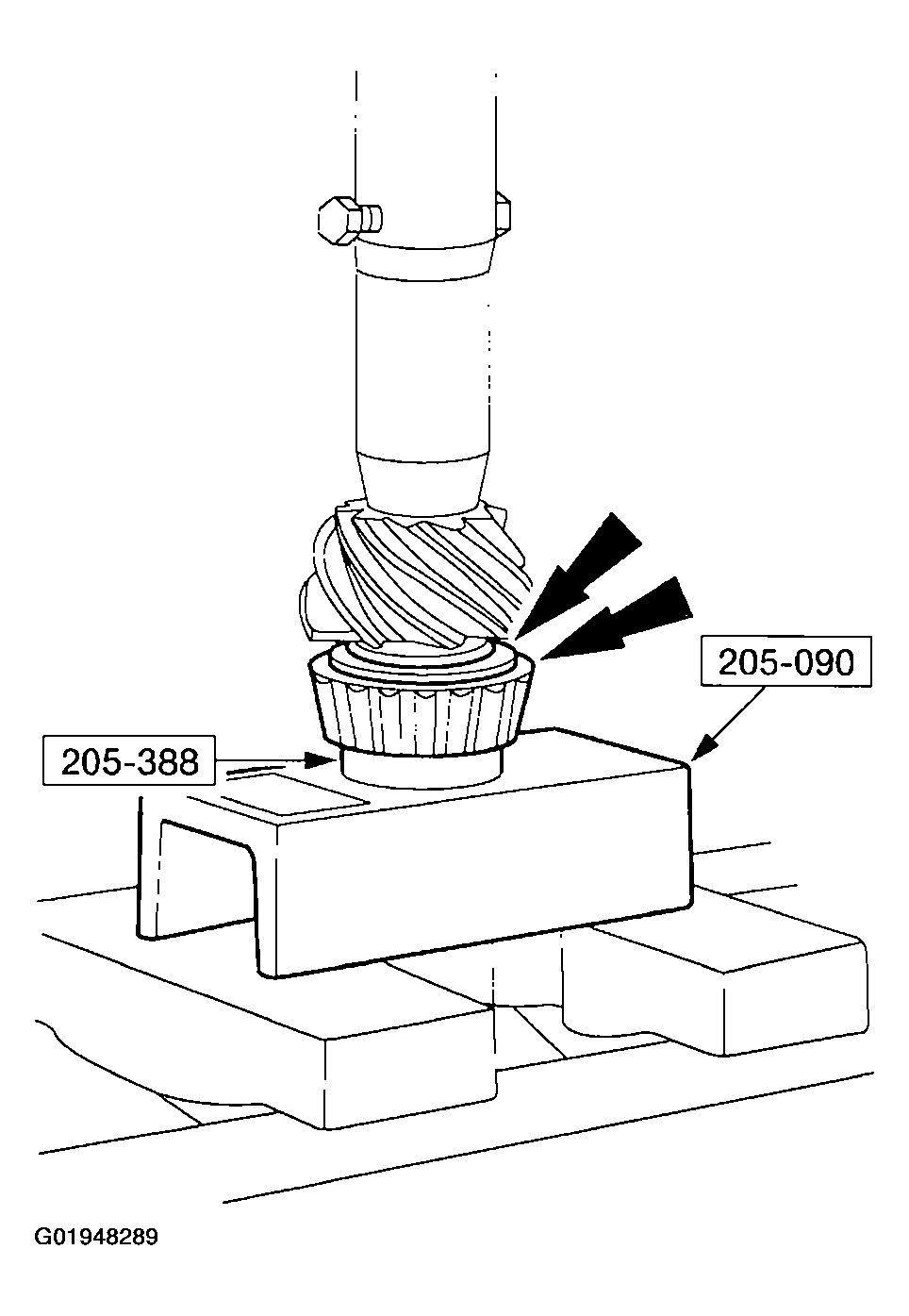

    Fig 11: Installing Pinion Bearing With Special Tool
    G01948289Courtesy of FORD MOTOR CO.
  12. Place a new drive pinion collapsible spacer on the pinion shaft against the pinion stem shoulder.

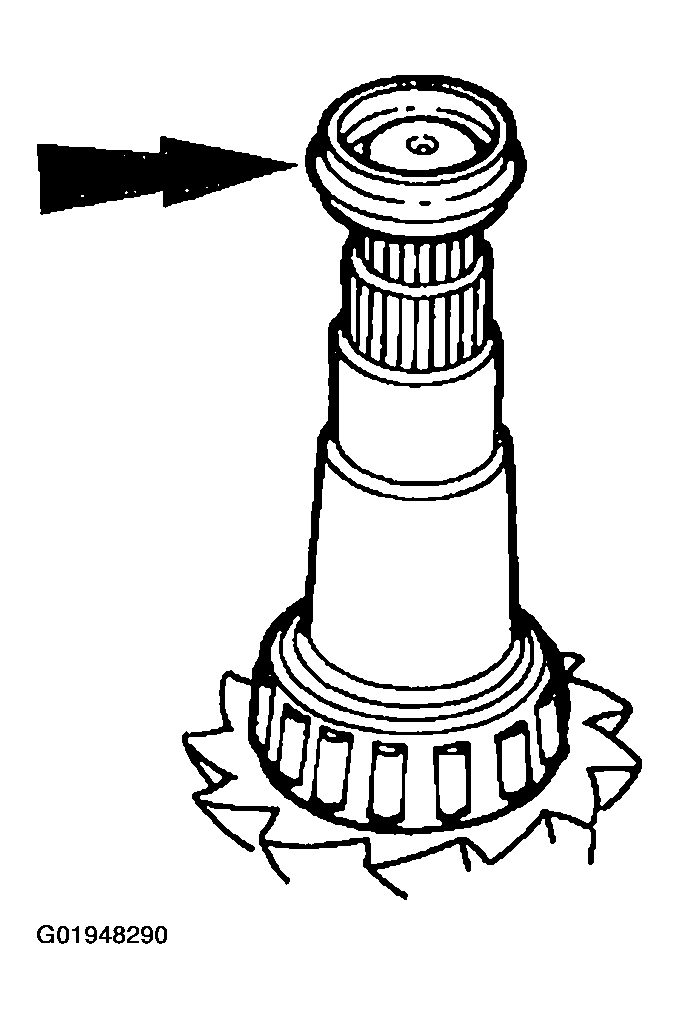

    Fig 12: Installing Drive Pinion Collapsible Spacer
    G01948290Courtesy of FORD MOTOR CO.
    13. CAUTION: Installation without the correct tool can result in early seal failure. If the rear axle drive pinion seal becomes cocked during installation, remove it and install a new one.
    Fig 13: Installing Oil Slinger
    G01948291Courtesy of FORD MOTOR CO.
  13. Install the outer pinion bearing cone and roller, the rear axle drive pinion shaft oil slinger and the rear axle drive pinion seal.
    14. NOTE: Coat the lips of the rear axle drive pinion seal with Premium Long- Life Grease XG-1-C or equivalent meeting Ford specification ESA-M1C75-B.
    Fig 14: Installing Rear Axle Drive Pinion Seal
    G01948292Courtesy of FORD MOTOR CO.
  14. Place the special tool in the pinion seal bore and drive the rear axle drive pinion seal into place.

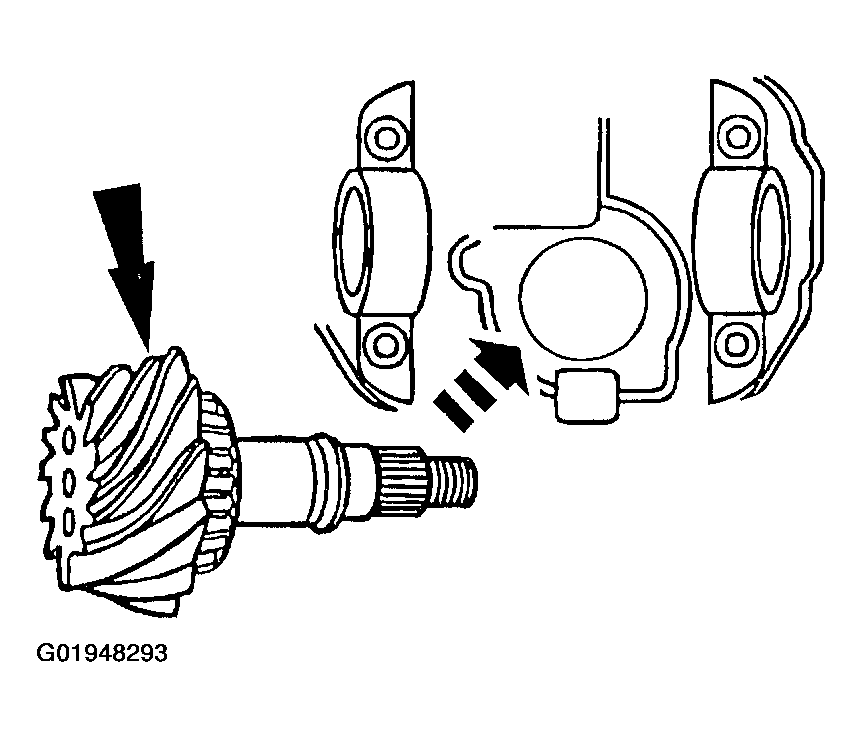

  15. Install the drive pinion in the drive pinion carrier bore from inside the rear axle housing (4010). Seat the drive pinion with a plastic hammer.
    Fig 15: Installing Drive Pinion In Drive Pinion Carrier Bore
    G01948293Courtesy of FORD MOTOR CO.
  16. Lubricate the pinion flange splines.
    • Use SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.
    17. NOTE: Disregard the scribe marks if a new pinion flange is being installed.
    Fig 16: Aligning Pinion Flange With Drive Pinion Shaft
    G01948294Courtesy of FORD MOTOR CO.
  17. Align the pinion flange with the drive pinion shaft.

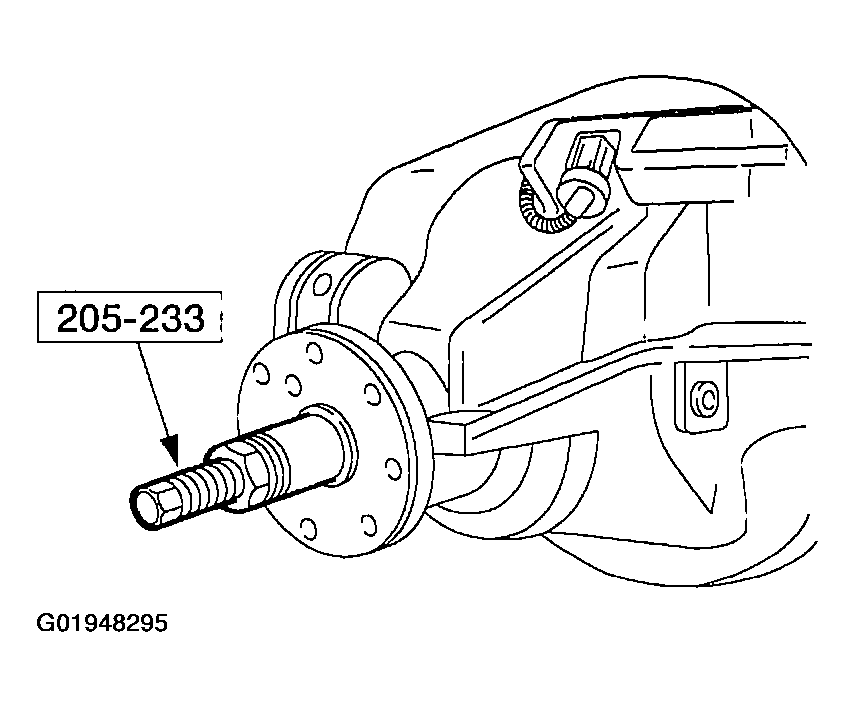

  18. With the drive pinion in place in the axle housing, install the pinion flange using the special tool.
    Fig 17: Installing Pinion Flange Using Special Tool
    G01948295Courtesy of FORD MOTOR CO.
  19. Position the new pinion nut.
    Fig 18: Positioning Pinion Nut
    G01948296Courtesy of FORD MOTOR CO.
    20. CAUTION: Under no circumstances is the pinion nut to be backed off to reduce preload. If reduced preload is required, a new collapsible spacer and pinion nut must be installed.
    CAUTION: Remove the special tool while taking readings with the Nm (inch-pound) torque wrench.
    Fig 19: Tightening Pinion Flange
    G01948297Courtesy of FORD MOTOR CO.
  20. Using the special tool to hold the pinion flange, tighten the pinion nut.
    • Rotate the pinion occasionally to make sure the cone and roller bearings are seating correctly.
    • Install a Nm (inch-pound) torque wrench on the pinion nut.
    • Rotating the pinion through several revolutions, take frequent cone and roller bearing torque preload readings until the original recorded preload reading is obtained.
      • If the original recorded preload is lower than specifications, tighten to the appropriate specifications for used bearings. If the preload is higher than specification, tighten the nut to the original reading as recorded. Refer to Torque Specifications .
  21. Install the differential case. For additional information, refer to DIFFERENTIAL CASE .
  22. Position the driveshaft, and align the marks on the pinion flange.

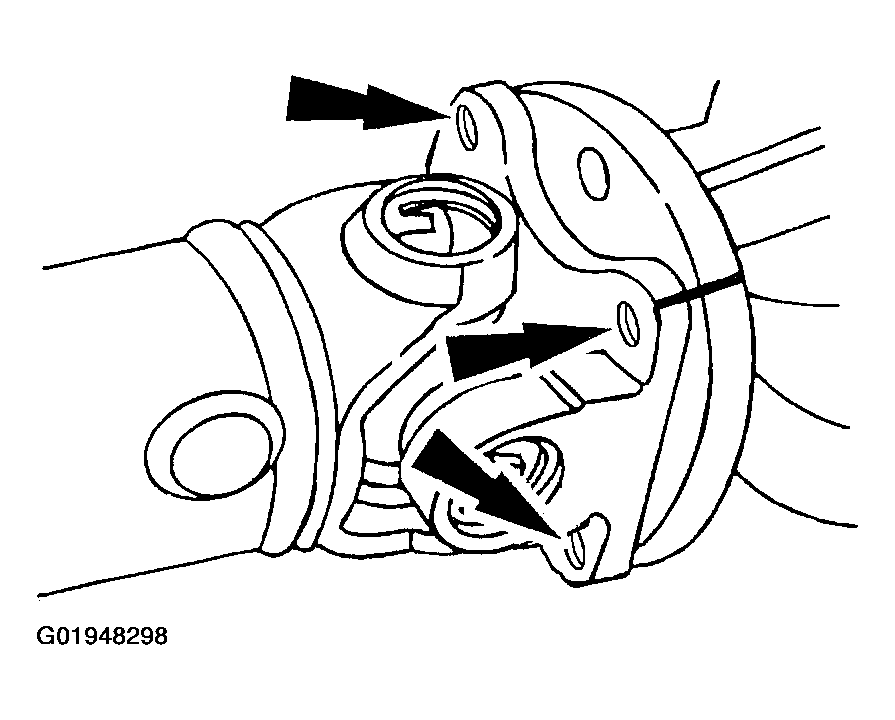

    Fig 20: Aligning Driveshaft And Pinion Flange Marks
    G01948298Courtesy of FORD MOTOR CO.
    23. CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion flange pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts evenly in a cross pattern as shown.

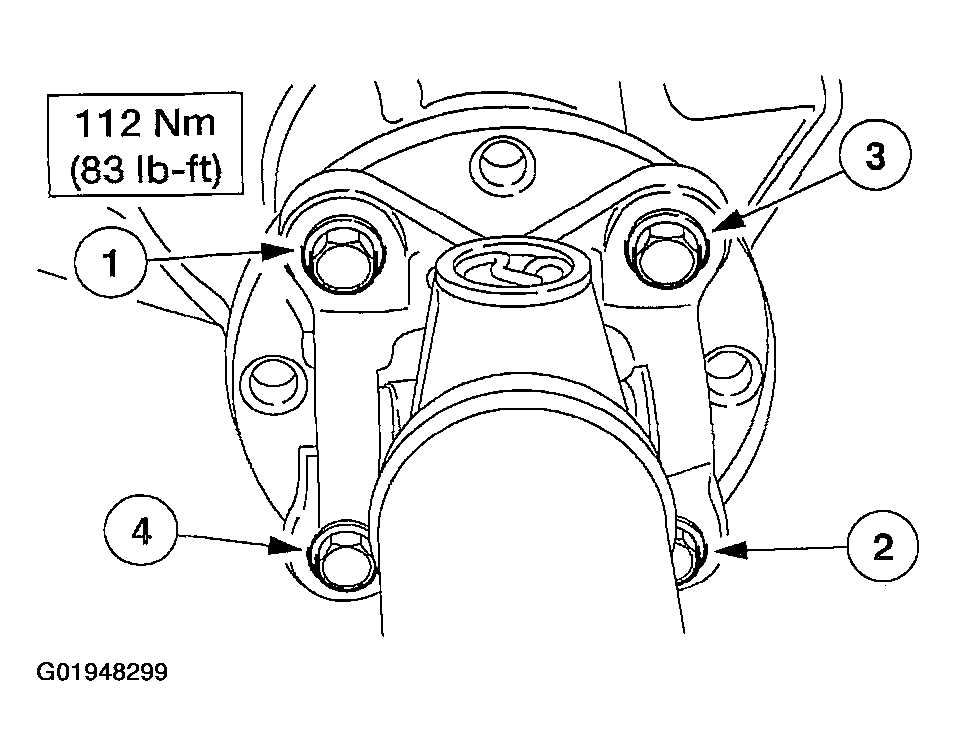

    Fig 21: Tightening Driveshaft To Pinion Flange Bolts
    G01948299Courtesy of FORD MOTOR CO.
  23. Install the driveshaft.
