Axle Shaft: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
  3. Remove the differential housing cover (4033).
  4. Remove the rear brake drums (1126). For additional information, refer to DISC & DRUM .
  5. Remove the differential pinion shaft (4211).
    1. Remove and discard the differential pinion shaft lock bolt.
    2. Remove the differential pinion shaft.

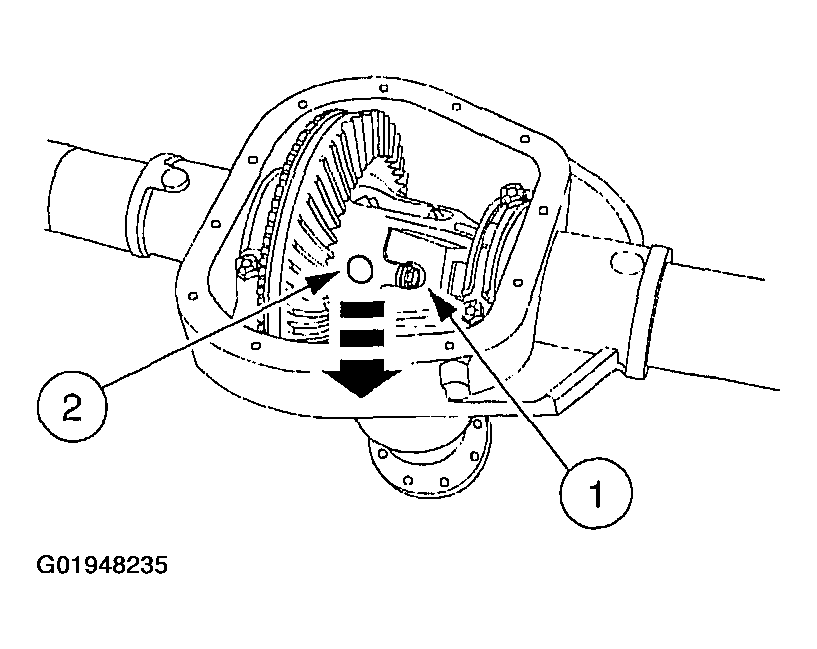

      Fig 1: Removing Differential Pinion Shaft
      G01948235Courtesy of FORD MOTOR CO.
    6. CAUTION: Do not damage the rubber O-rings in the U-washer grooves.

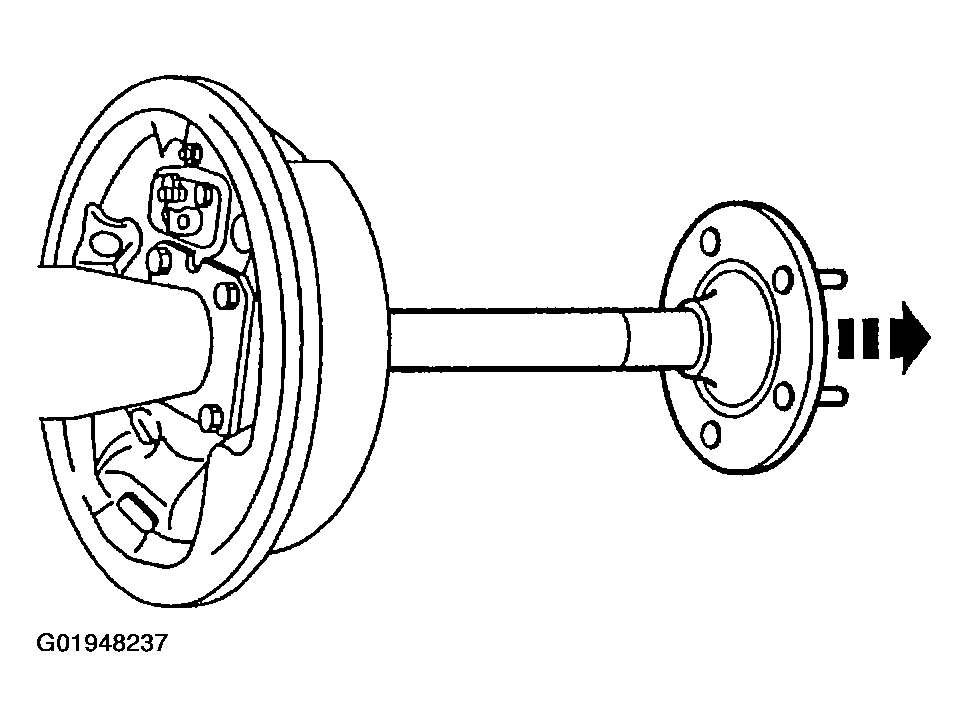

    Fig 3: Removing Axle Shafts
    G01948237Courtesy of FORD MOTOR CO.
  6. Remove the U-washers (4N237).
    1. Push the axle shafts (4234) inboard.
    2. Remove the U-washers.

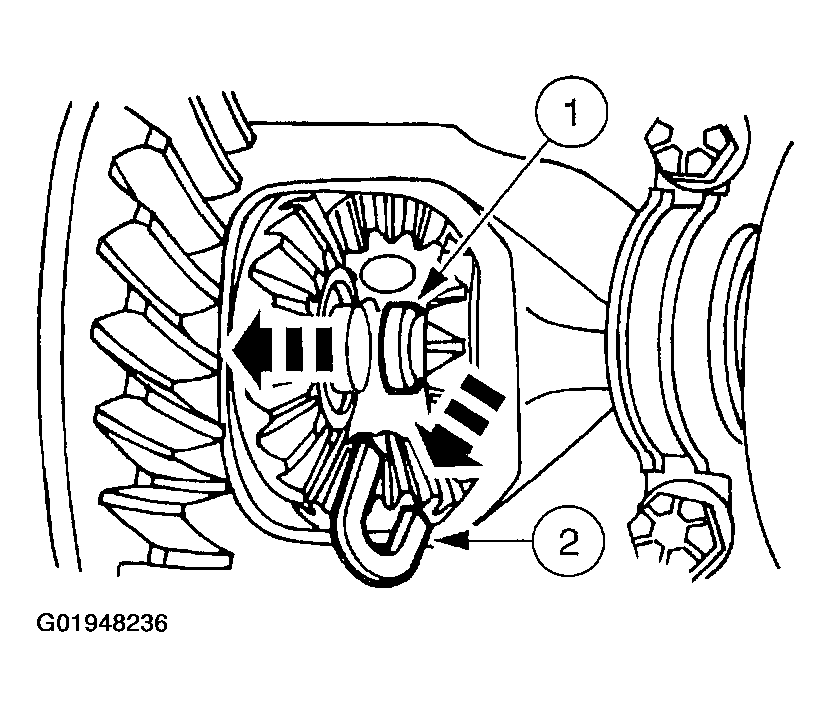

      Fig 2: Removing U-Washers
      G01948236Courtesy of FORD MOTOR CO.
      3. CAUTION: Do not damage the wheel bearing oil seal (1177).
    3. Remove the two axle shafts.
