Differential Case and Ring Gear - Conventional: Assembly

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the differential side gear thrust washers on the differential side gears.
    • Use SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A to lubricate the differential side gear thrust washers and the differential side gear journals.
      Fig 1: Identifying Differential Side Gear & Thrust Washers
      G01948355Courtesy of FORD MOTOR CO.
  2. Position the differential side gears.

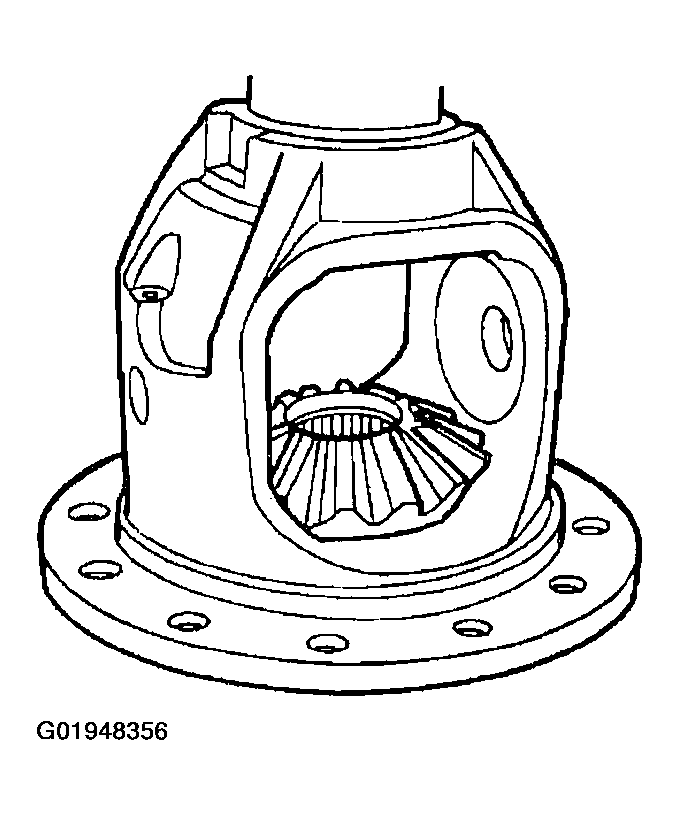

    Fig 2: Installing Differential Side Gears
    G01948356Courtesy of FORD MOTOR CO.
  3. Assemble the differential pinion thrust washers (4230) and the differential pinion gears (4215).
    • Lubricate with SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.
    Fig 3: Assembling Differential Pinion Thrust Washers
    G01948357Courtesy of FORD MOTOR CO.
  4. Engage the differential pinion gears opposite the differential side gears.

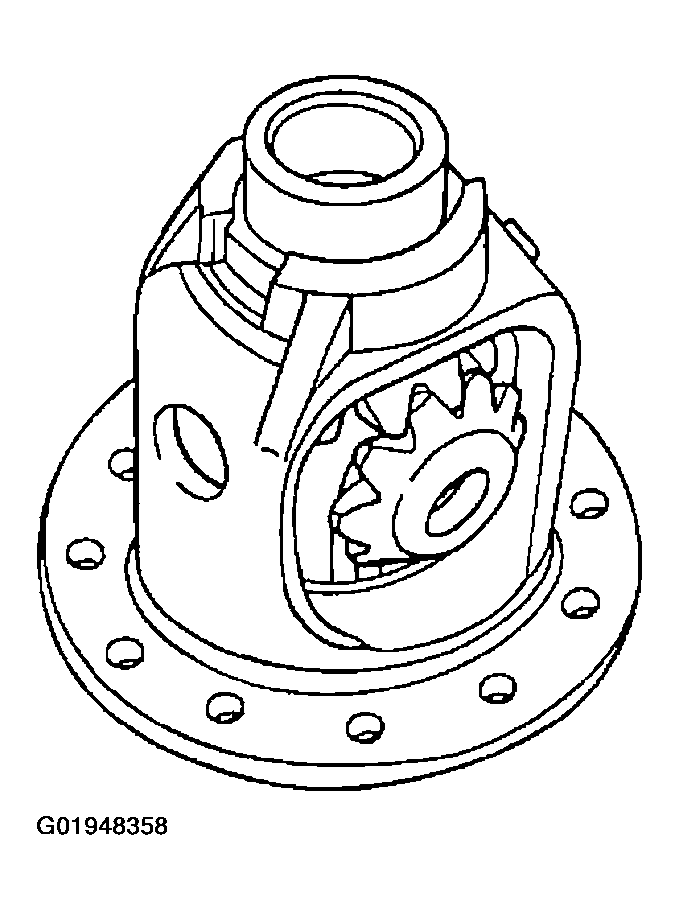

    Fig 4: Installing Differential Pinion Gears
    G01948358Courtesy of FORD MOTOR CO.
  5. Using the special tool, install the differential bearings.
    Fig 5: Installing Differential Bearings
    G01948359Courtesy of FORD MOTOR CO.
  6. Rotate the differential pinion gears to align the differential pinion shaft bore.

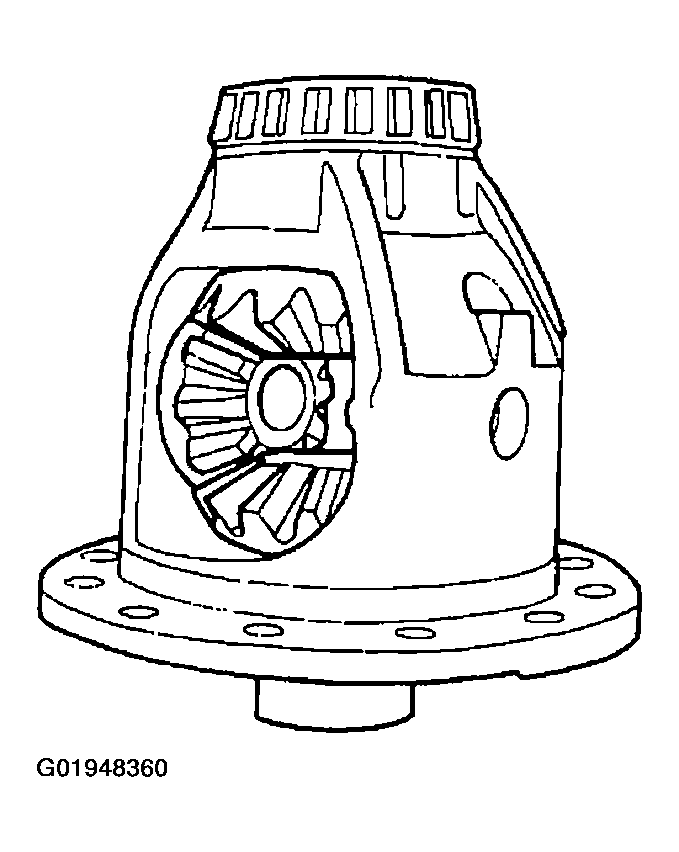

    Fig 6: Rotating Differential Pinion Gears
    G01948360Courtesy of FORD MOTOR CO.
  7. Insert the differential pinion shaft, and install a new differential pinion shaft lock bolt finger-tight.
    Fig 7: Installing Differential Pinion Shaft Lock Bolt
    G01948361Courtesy of FORD MOTOR CO.
    8. CAUTION: Make sure that the notches on the case flange and the anti-lock speed sensor ring are aligned.

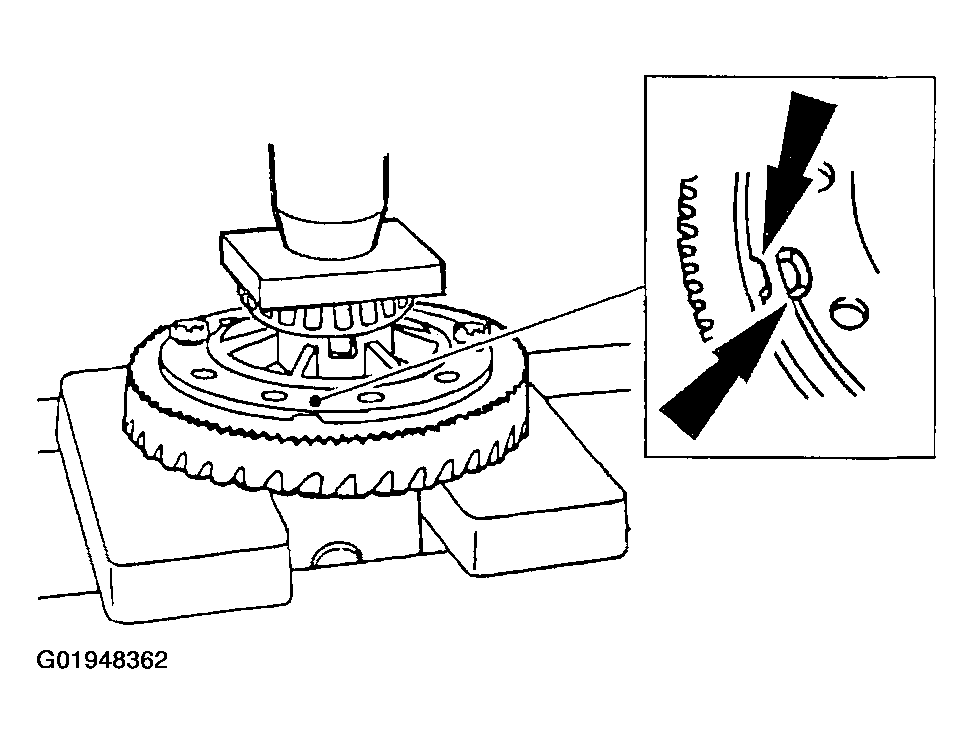

    Fig 8: Pressing Anti-Lock Speed Sensor Ring
    G01948362Courtesy of FORD MOTOR CO.
  8. Press the new anti-lock speed sensor ring and the ring gear on the differential case.
  9. Install the bolts and tighten.
    • Apply Stud and Bearing Mount EOAZ-19554-BA or equivalent meeting Ford specification WSK-M2G349-A1 to the ring gear bolts.

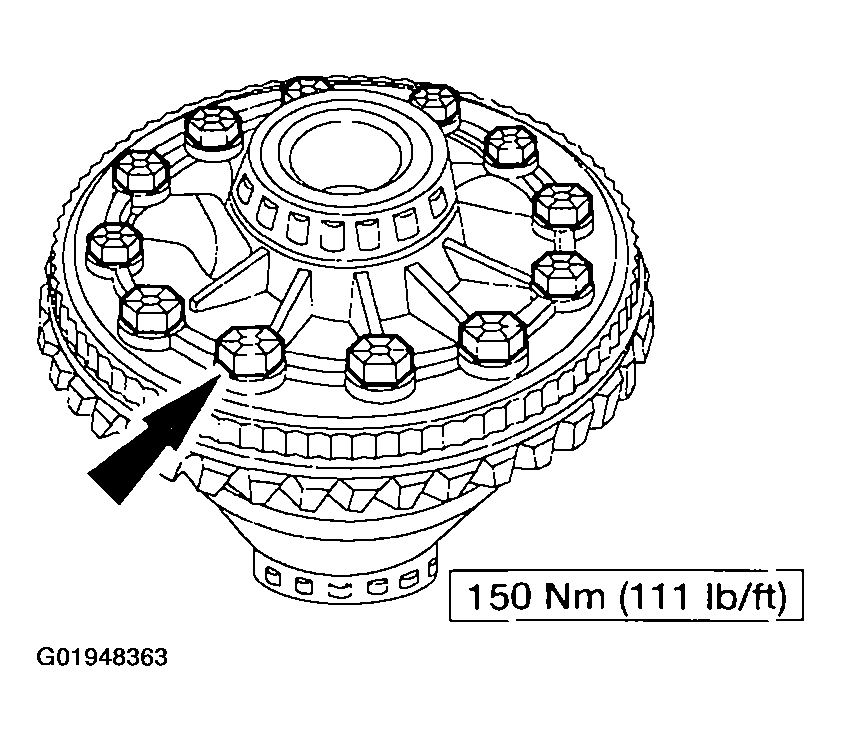

    Fig 9: Installing Ring Gear Bolts
    G01948363Courtesy of FORD MOTOR CO.
  10. Install new differential bearings, if removed.
  11. Install the differential case. For additional information, refer to DIFFERENTIAL CASE .
