Rear Wheel Bearing and Axle Shaft Oil Seal: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the axle shaft (4234). For additional information, refer to AXLE SHAFT .
    2. NOTE: If the wheel bearing oil seal (1177) is leaking, the axle housing vent may be plugged.

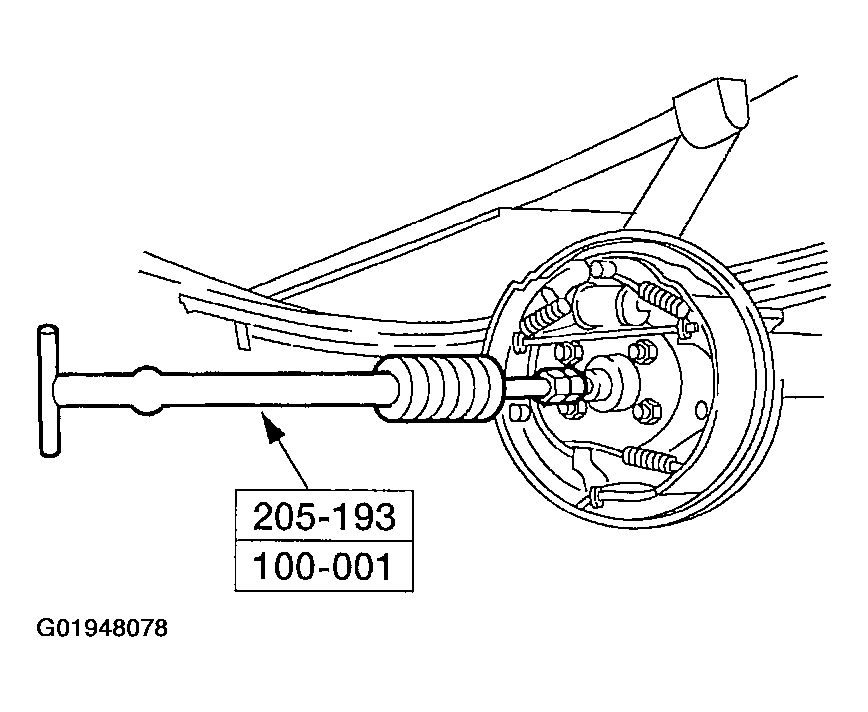

    Fig 1: Removing Wheel Bearing & Wheel Bearing Oil Seal
    G01948078Courtesy of FORD MOTOR CO.
  2. Using the special tools, remove the rear axle bearing and wheel bearing oil seal.
