Drive Pinion Flange: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the rear wheel and tire assemblies. For additional information, refer to WHEELS & TIRES .
  3. CAUTION: Remove the brake drums to prevent brake drag during drive pinion bearing preload adjustment.
  4. Remove the brake drums. For additional information, refer to DISC & DRUM .
  5. Mark the driveshaft flange and pinion flange (4851) for correct alignment during installation.

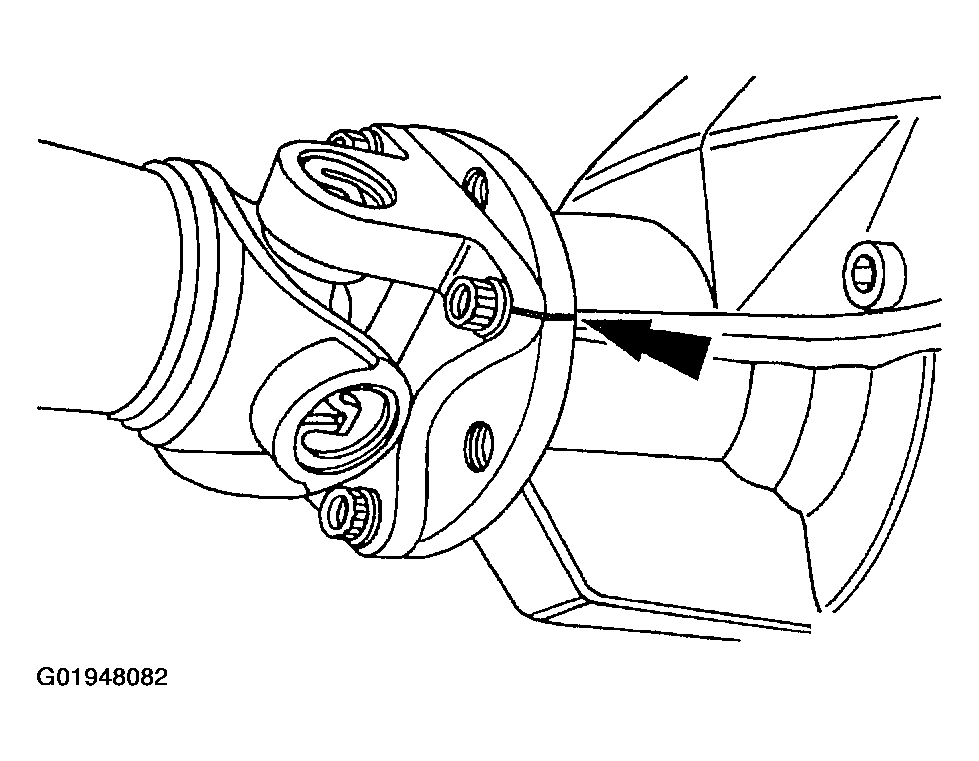

    Fig 1: Identifying Mark On Driveshaft Flange And Pinion Flange
    G01948082Courtesy of FORD MOTOR CO.
  6. Remove the four bolts.

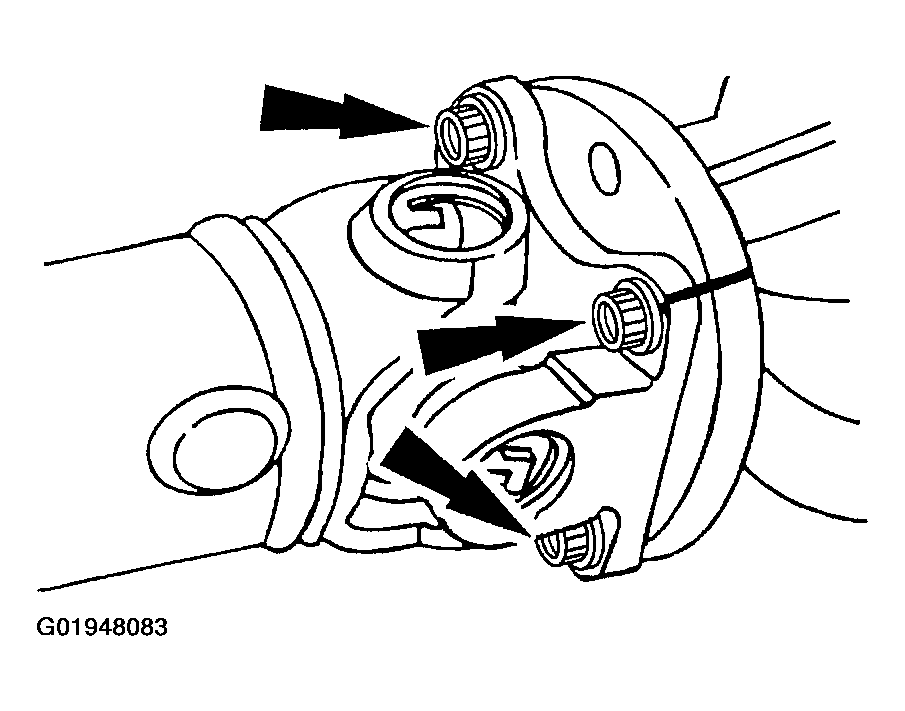

    Fig 2: Removing Four Bolts
    G01948083Courtesy of FORD MOTOR CO.
  7. CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion flange pilot. Never hammer on the driveshaft or any of its components to disconnect the yoke from the flange. Pry only in the area shown with a suitable tool to disconnect the yoke from the flange.

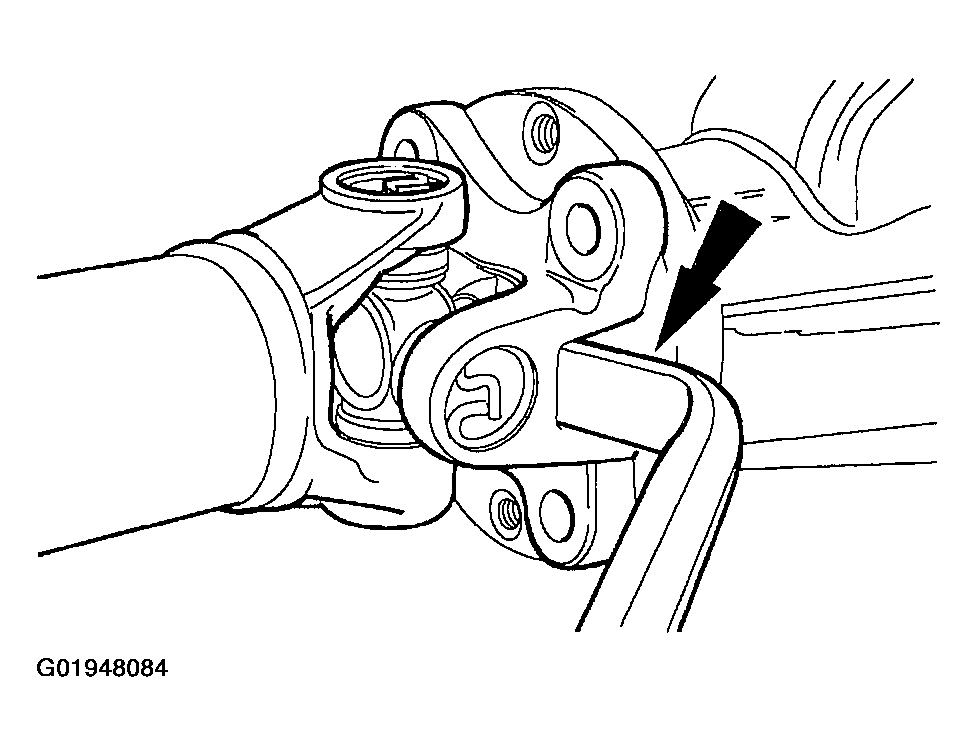

    Fig 3: Disconnecting Driveshaft Centering Socket Yoke From Rear Axle Pinion Flange
    G01948084Courtesy of FORD MOTOR CO.
  8. Using a suitable tool as shown, disconnect the driveshaft centering socket yoke from the rear axle pinion flange.
    • Position the driveshaft out of the way.
  9. Install a Nm (inch-pound) torque wrench on the pinion nut and record the torque required to maintain rotation of the pinion through several revolutions.
    Fig 4: Identifying Pinion Nut
    G01948085Courtesy of FORD MOTOR CO.
  10. CAUTION: After removal of the pinion nut, discard it. A new nut must be used for installation.
    Fig 5: Removing Pinion Nut
    G01948086Courtesy of FORD MOTOR CO.
  11. Use the special tool to hold the pinion flange while removing the pinion nut.
  12. Mark the driveshaft pinion flange in relation to the drive pinion stem to make sure of correct alignment during installation.

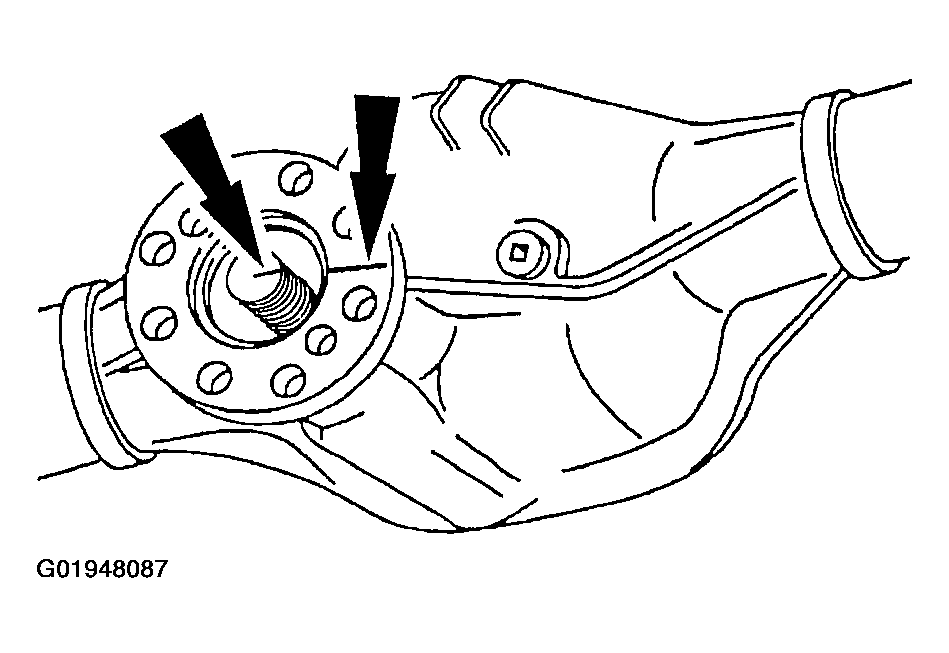

    Fig 6: Identifying Mark On Driveshaft Pinion Flange
    G01948087Courtesy of FORD MOTOR CO.
  13. Using the special tool, remove the pinion flange.

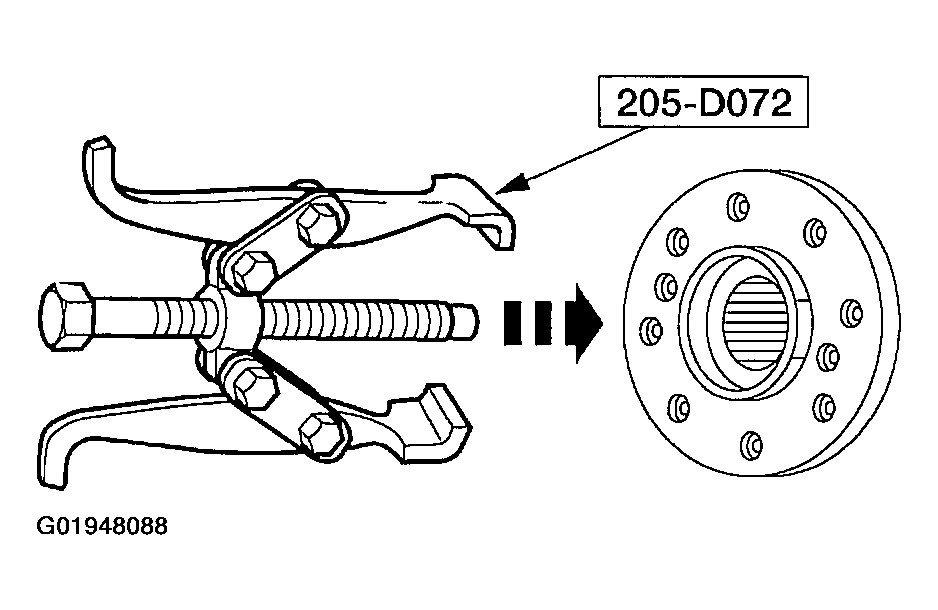

    Fig 7: Removing Pinion Flange
    G01948088Courtesy of FORD MOTOR CO.
