Full-Floating - Models 60-1U, 70-2U and 70TR, Exploded View

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

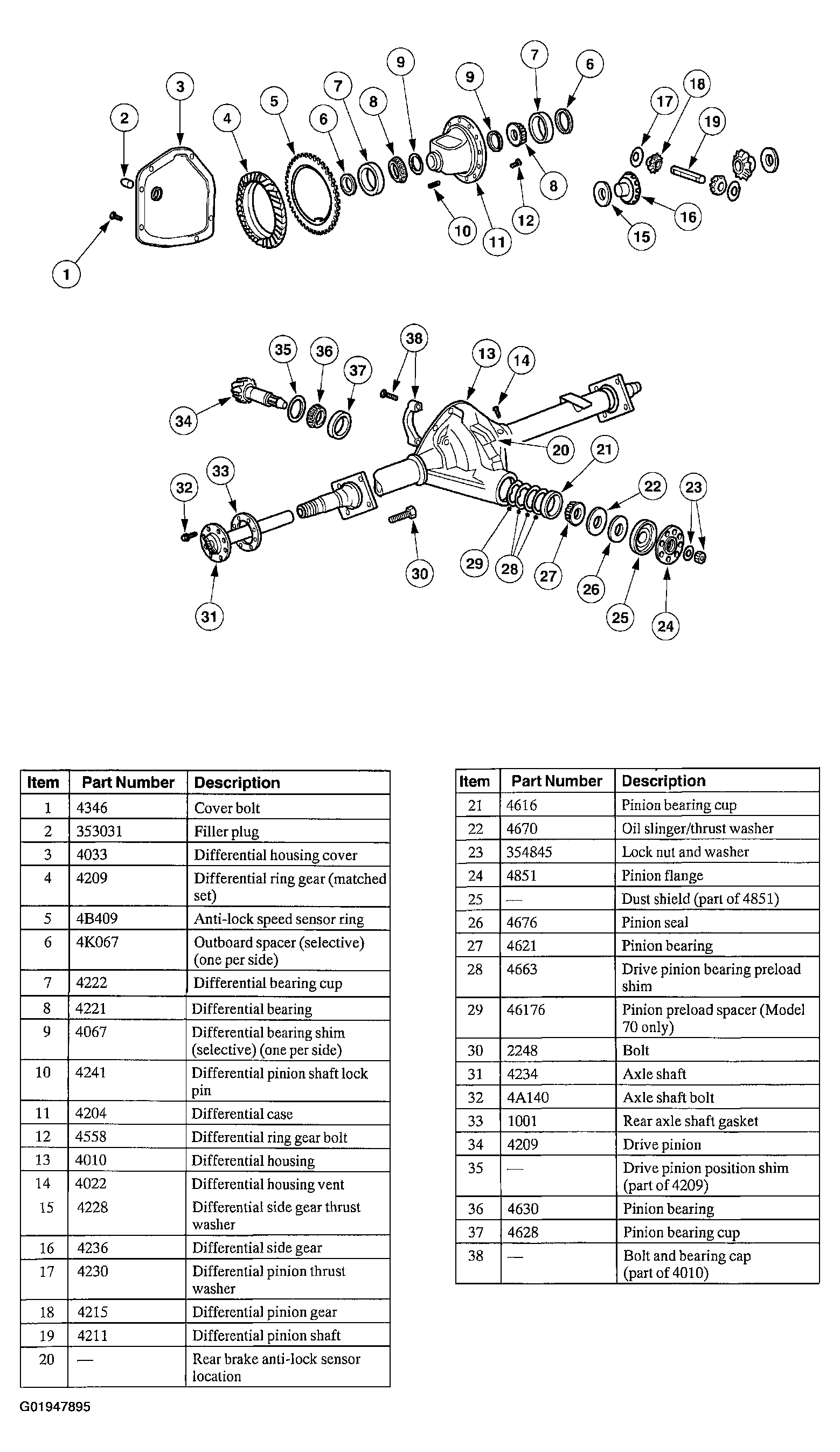

Fig 1: Exploded View Of Full-Floating - Models 60-1U, 70-2U and 70TR
G01947895Courtesy of FORD MOTOR CO.
