Wheel And Tire - Dual Rear Wheels: Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

    WARNING: When a wheel is installed, always remove any corrosion, dirt or foreign material present on the mounting surfaces of the wheels or the surfaces of the rear hub that contact the wheel. Installing wheels without proper metal-to-metal contact at the wheel mounting surfaces can cause the lug nut to loosen and the wheel to come off while the vehicle is in motion, resulting in loss of control.
  1. Mount the inner wheel on the rear hub with the wheel dish facing inboard.

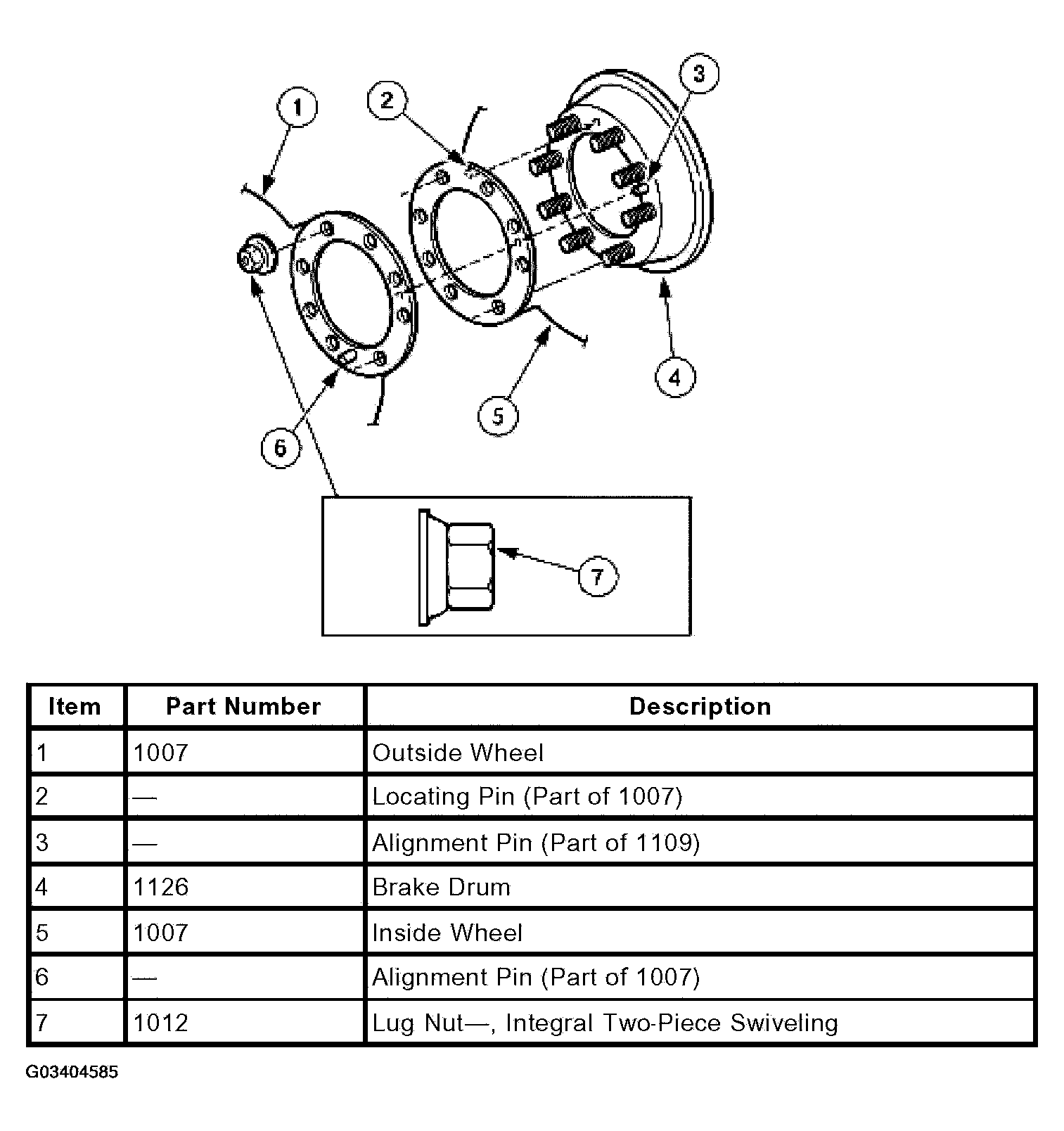

  2. Align the wheel with the small indexing hole, located in the wheel between the wheel hub bolt holes, with the alignment pin in the hole in the rear hub. Refer to Figure.
  3. Make sure the wheel is flush with the rear wheel hub mounting surface so there is no gap between the rear hub and the wheel.
  4. Install the outer rear wheel flush against the inner wheel with the hub alignment locating pin protruding through the wheel index hole.
  5. Install the lug nuts and tighten until snug.
  6. With the lug nuts loosely installed, turn the wheel until one lug nut is at the top of the wheel hub bolt circle. Tighten the swiveling lug nut until snug. In a crisscross-type pattern, tighten the remaining lug nuts until snug to minimize runout.
  7. Lower the vehicle.

    8. E-150 - E-450 vehicles

    CAUTION: Failure to tighten the wheel nuts in the sequence shown can result in high wheel and tire runout, which will speed up the development of brake roughness, shudder and vibration.
    Fig 1: Identifying Tightening Sequence And Torque Of Wheel Nuts (E-150 - E-450 Vehicles)
    G03404586Courtesy of FORD MOTOR CO.
  8. Tighten the lug nuts to specification.
    9. CAUTION: Failure to tighten the wheel nuts in the sequence shown can result in high wheel and tire runout, which will speed up the development of brake roughness, shudder and vibration.
  9. Tighten the wheel nuts to specification.

    10. All vehicles

  10. Install the wheel cover, if so equipped.

    E-550 vehicles

    Fig 2: Identifying Tightening Sequence And Torque Of Wheel Nuts (E-550 Vehicles)
    G03404587Courtesy of FORD MOTOR CO.
