Start the engine and center the steering wheel.

Fig 1: Rotating Steering Wheel
Courtesy of FORD MOTOR CO.
Turn the engine off, and hold the steering wheel in the "straight forward" position using a suitable holding device.
E-150, E-450 vehicles
Loosen the nuts.
- Clean and lubricate the steering linkage and tie rod end threads.

  Fig 2: Locating Steering Linkage Nuts
  Courtesy of FORD MOTOR CO.
Rotate the adjusting sleeves to obtain the correct toe setting.

Fig 3: Locating Adjusting Sleeve
Courtesy of FORD MOTOR CO.
Position the RH adjusting sleeve clamp opening downward within 45 degrees of vertical. Tighten the nuts.

Fig 4: Positioning RH Adjusting Sleeve Clamp
Courtesy of FORD MOTOR CO.
Position the LH adjusting sleeve clamp opening upward within 45 degrees of vertical. Tighten the nuts.

Fig 5: Positioning LH Adjusting Sleeve Clamp
Courtesy of FORD MOTOR CO.

E550 vehicles
Loosen the two nuts.
- Clean and lubricate the tie-rod threads.

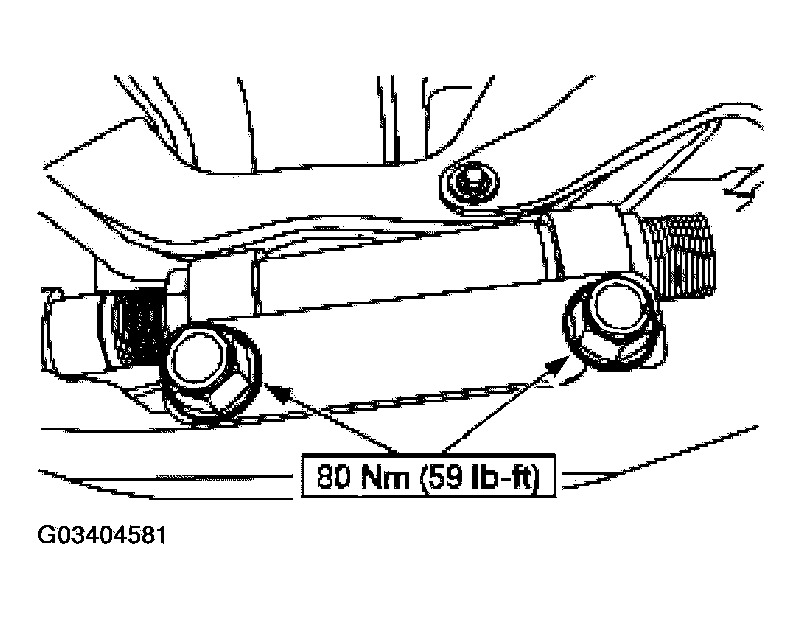

  Fig 6: Tightening Adjusting Sleeve Clamp Nut
  Courtesy of FORD MOTOR CO.
Rotate the adjusting sleeves.

Fig 7: Locating Adjusting Sleeve
Courtesy of FORD MOTOR CO.
Position the adjusting sleeve clamp openings downward within 45 degrees of vertical. Tighten the nuts.

Fig 8: Positioning Adjusting Sleeve Clamp Openings
Courtesy of FORD MOTOR CO.
If necessary, loosen the drag link adjusting sleeve nuts and rotate the sleeve to obtain equal RH and LH toe settings.
- Position the adjusting sleeve clamp openings downward within 45 degrees of vertical. Tighten the nuts.

  Fig 9: Tightening Drag Link Adjusting Sleeve Nuts
  Courtesy of FORD MOTOR CO.
Recheck the toe settings and adjust if necessary.
