Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery cables. For additional information, refer to BATTERY DISCONNECT  .
  2. Remove the battery.
    1. Remove the nuts.
    2. Remove the hold-down.
    3. Remove the battery.

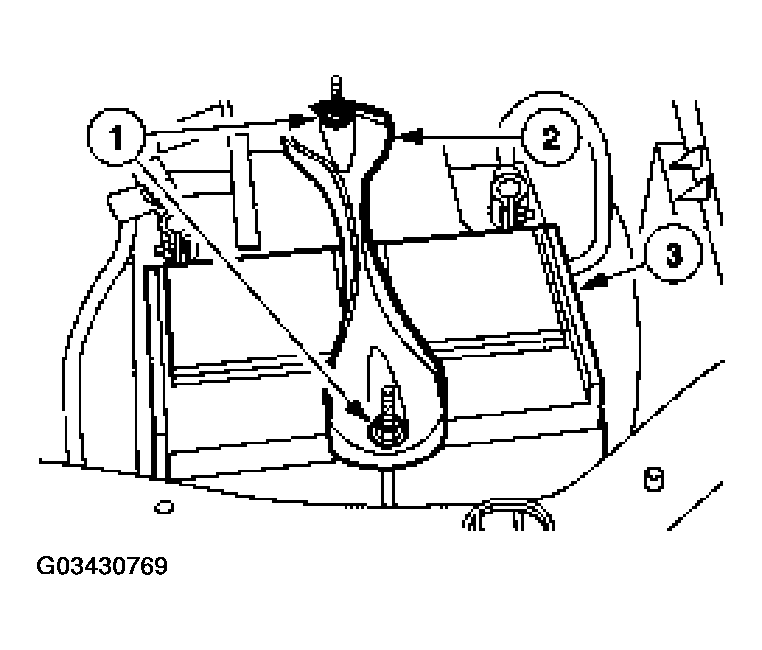

    Fig 1: Removing Battery
    G03430769Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
