Pinpoint Test F: Hard Shifting

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

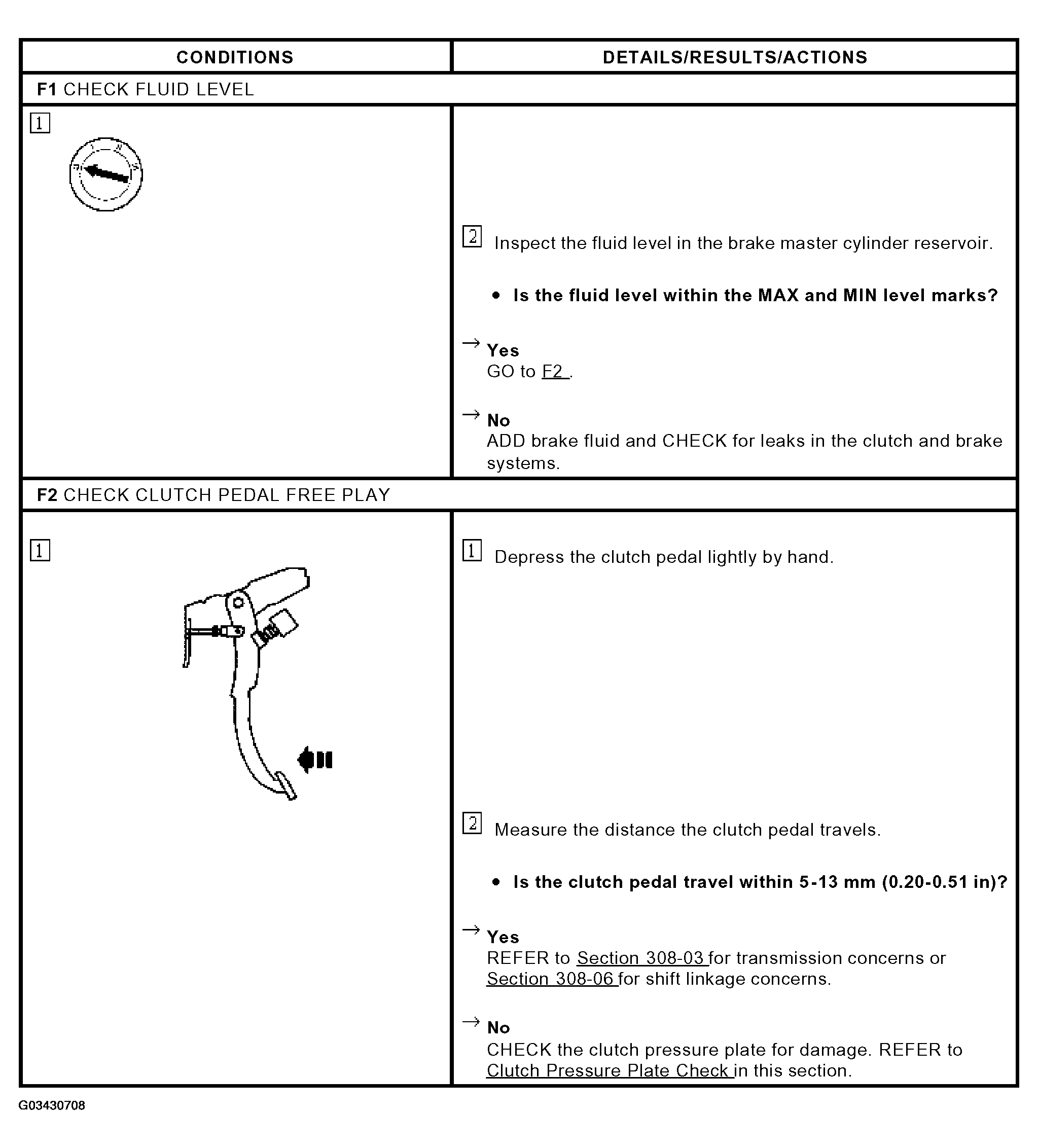

Fig 1: Pinpoint Test F: Hard Shifting Chart
G03430708Courtesy of FORD MOTOR CO.
