Pinpoint Test E: Clutch Related Vibrations

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

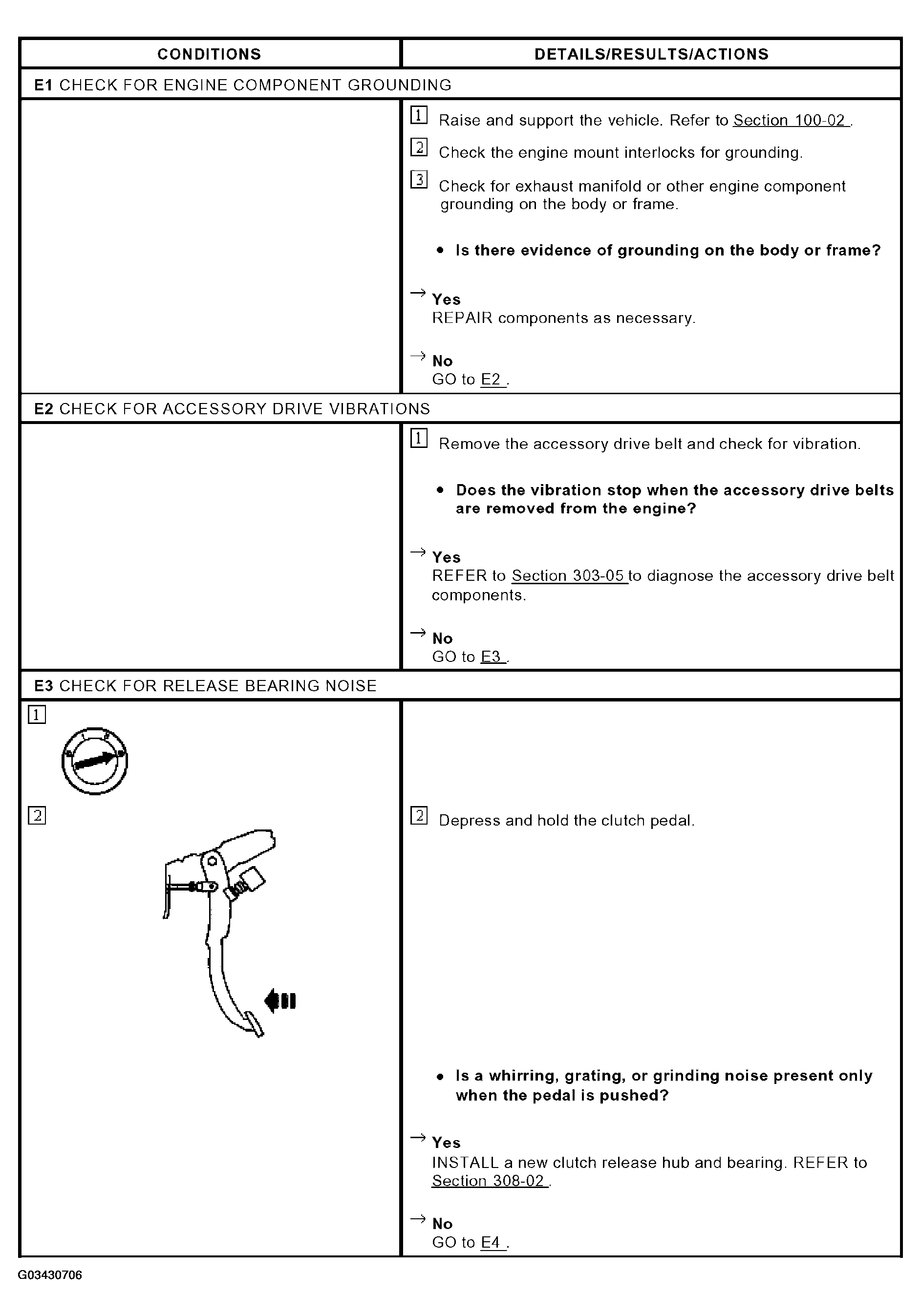

Fig 1: Pinpoint Test E: Clutch Related Vibrations Chart (Steps E1 - E3)
G03430706Courtesy of FORD MOTOR CO.

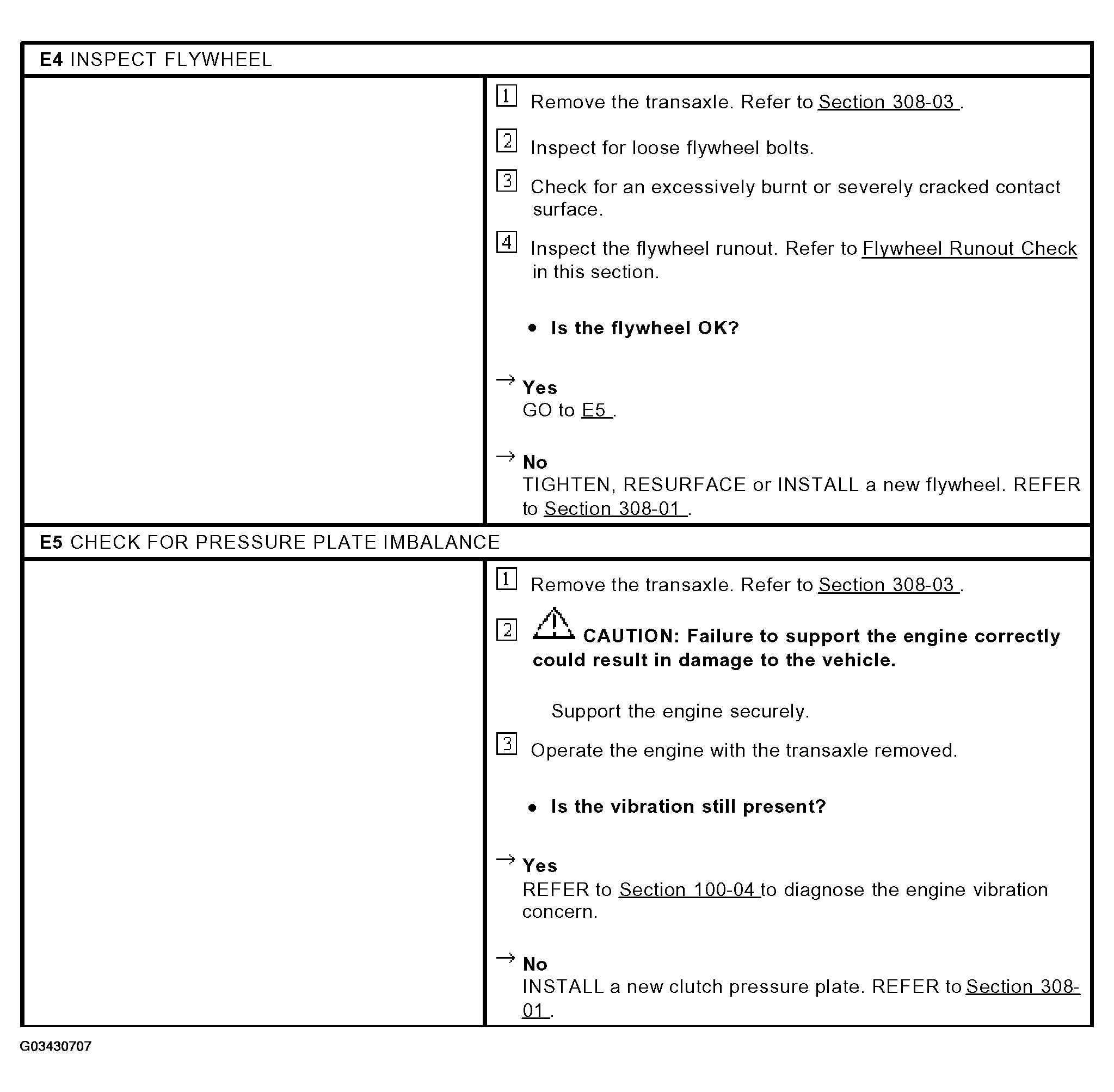

Fig 2: Pinpoint Test E: Clutch Related Vibrations Chart (Steps E4 - E5)
G03430707Courtesy of FORD MOTOR CO.
