Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Remove the right front tire assembly.
Remove the splash shield.

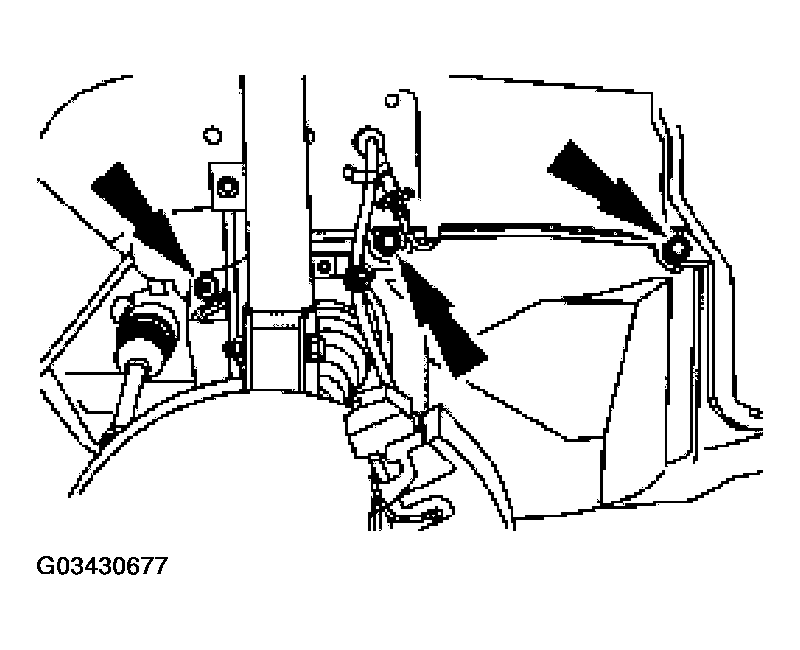

Fig 1: Removing Splash Shield
Courtesy of FORD MOTOR CO.
Remove the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
Remove the coolant pump pulley.

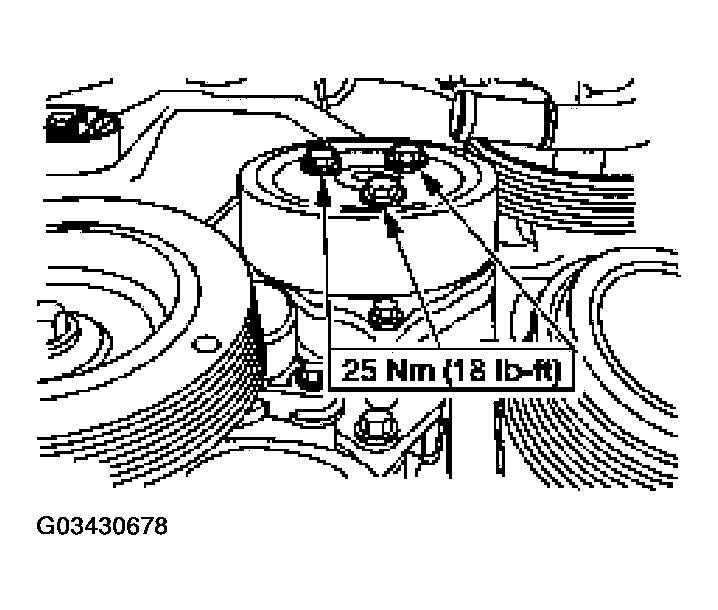

Fig 2: Removing Coolant Pump Pulley
Courtesy of FORD MOTOR CO.
Remove the four bolts and the coolant pump.

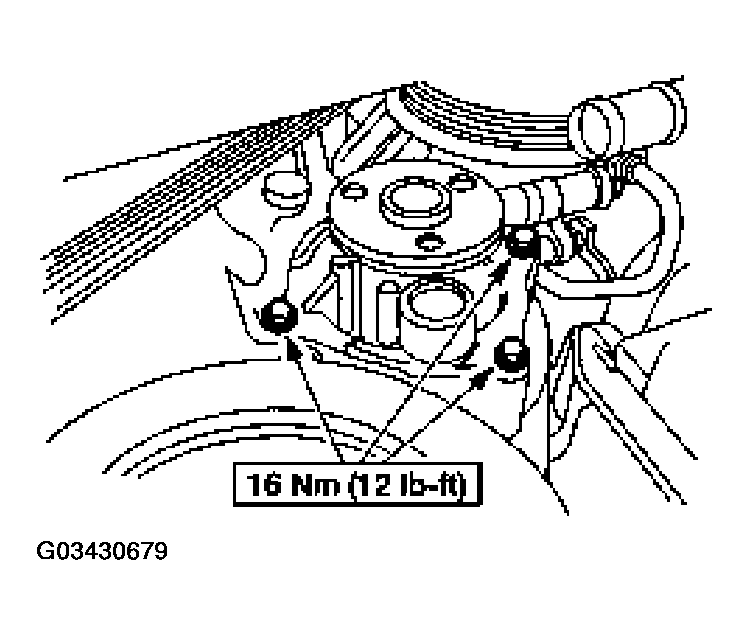

Fig 3: Removing Four Bolts & Coolant Pump
Courtesy of FORD MOTOR CO.

NOTE: Clean and inspect the sealing surfaces.

To install, reverse the removal procedure.
