Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain the engine cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .

NOTE: The appearance cover is shown removed for clarity.

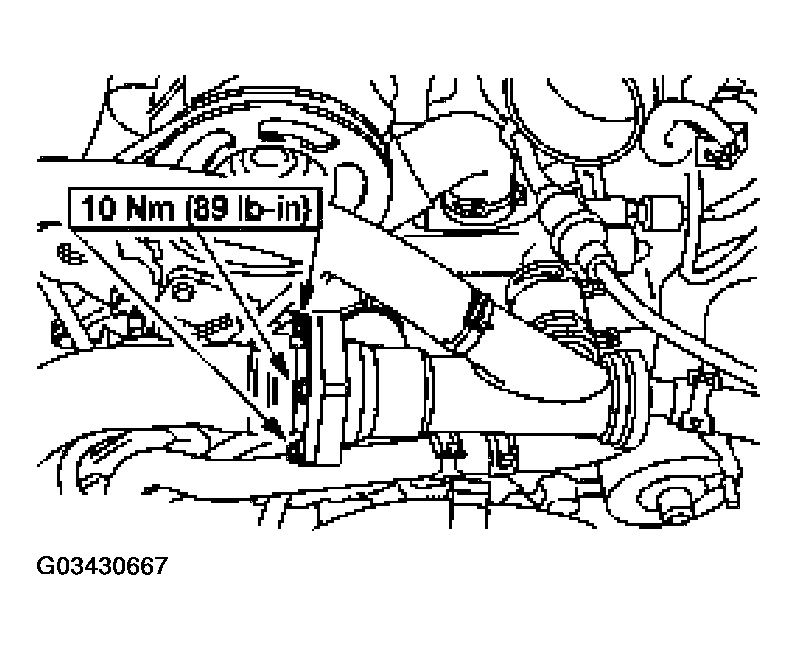

Fig 1: Separating Thermostat Housing

Courtesy of FORD MOTOR CO.

Separate the thermostat housing.
Remove the thermostat and the O-ring seal from the thermostat housing.

Fig 2: Removing Thermostat & O-Ring Seal From Thermostat Housing
Courtesy of FORD MOTOR CO.

NOTE: Clean and inspect the sealing surfaces.

To install reverse the removal procedure.
