Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain the engine coolant. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Remove the three bolts and separate the coolant outlet adapter from the thermostat housing.

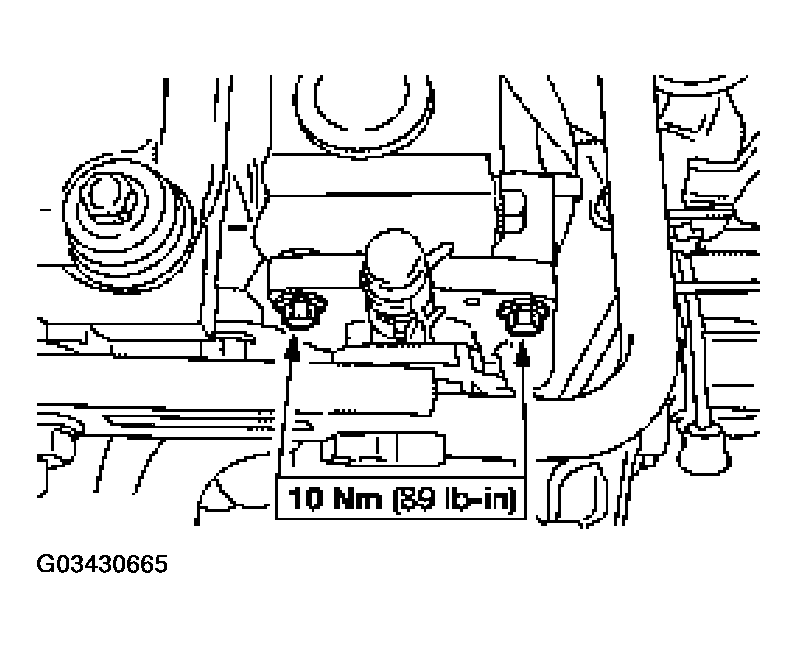

Fig 1: Removing Coolant Outlet Adapter From Thermostat Housing
Courtesy of FORD MOTOR CO.

NOTE: The thermostat is indexed and must be installed correctly.

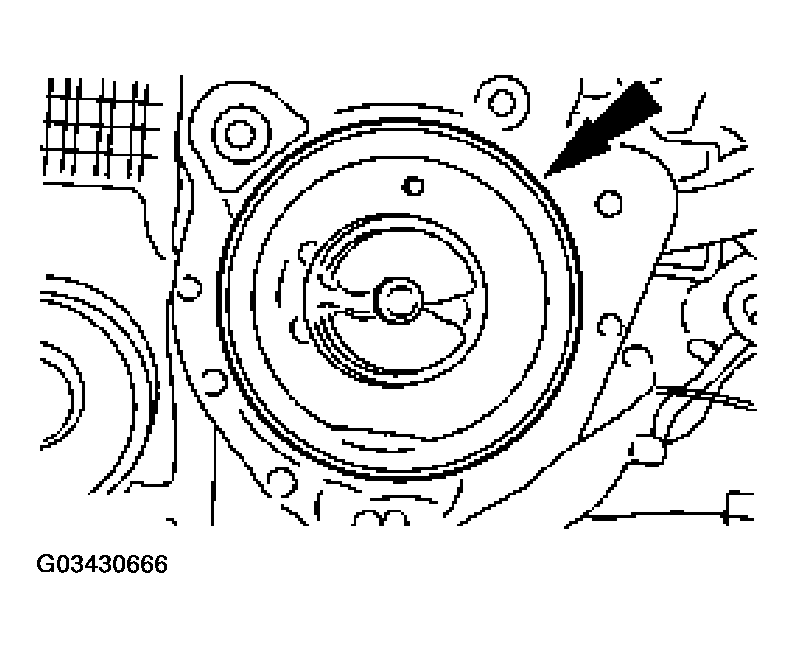

Fig 2: Removing Thermostat & O-Ring Seal

Courtesy of FORD MOTOR CO.

Remove the thermostat and the O-ring seal.

NOTE: Clean and inspect the sealing surfaces.

To install, reverse the removal procedure.
