Pinpoint Test C: The Engine Does Not Reach Normal Operating Temperature

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

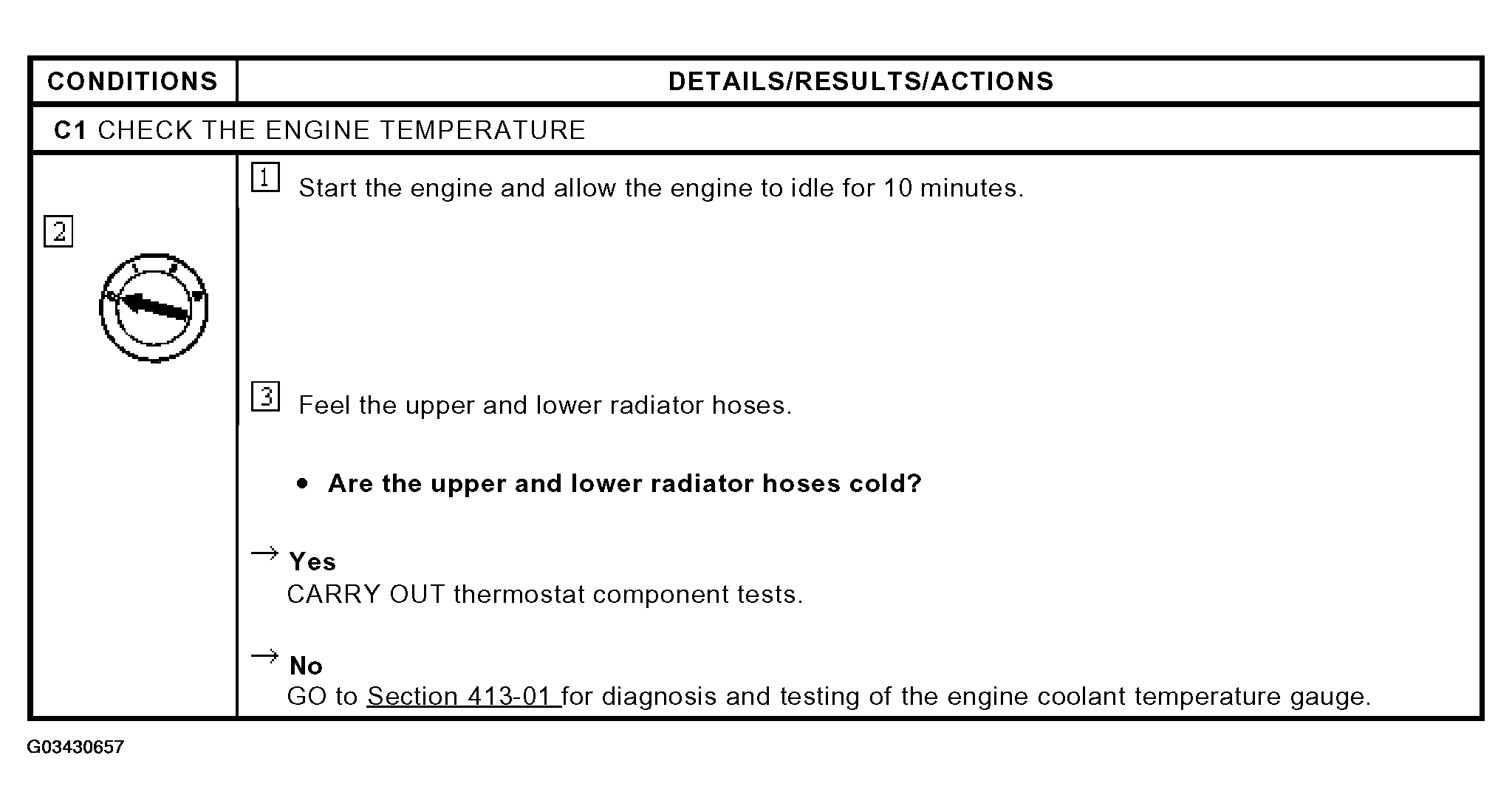

Fig 1: Pinpoint Test C: Engine Does Not Reach Normal Operating Temperature
G03430657Courtesy of FORD MOTOR CO.
