WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

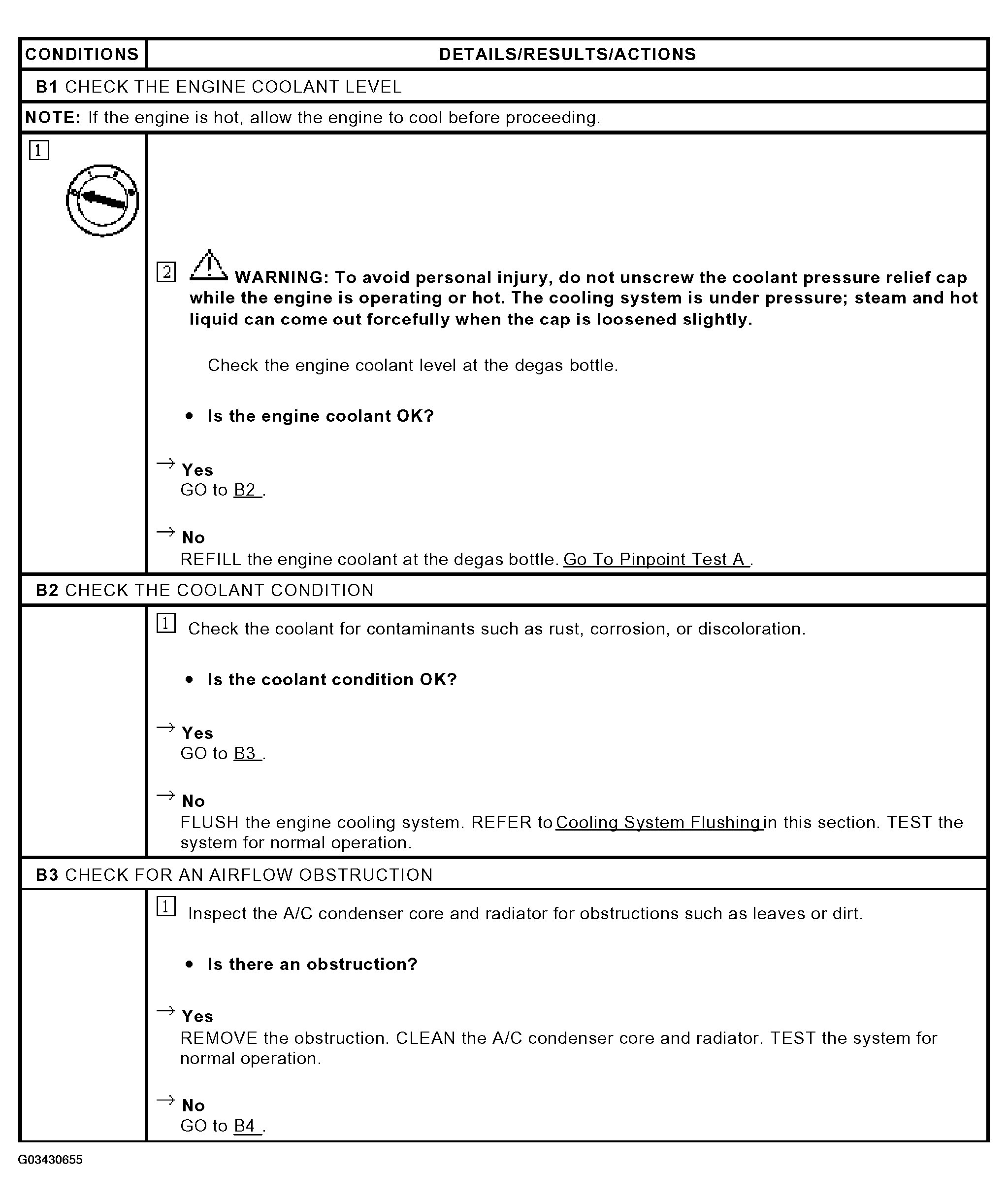

Fig 1: Pinpoint Test B: Engine Overheats Chart (Steps B1-B3)
Courtesy of FORD MOTOR CO.

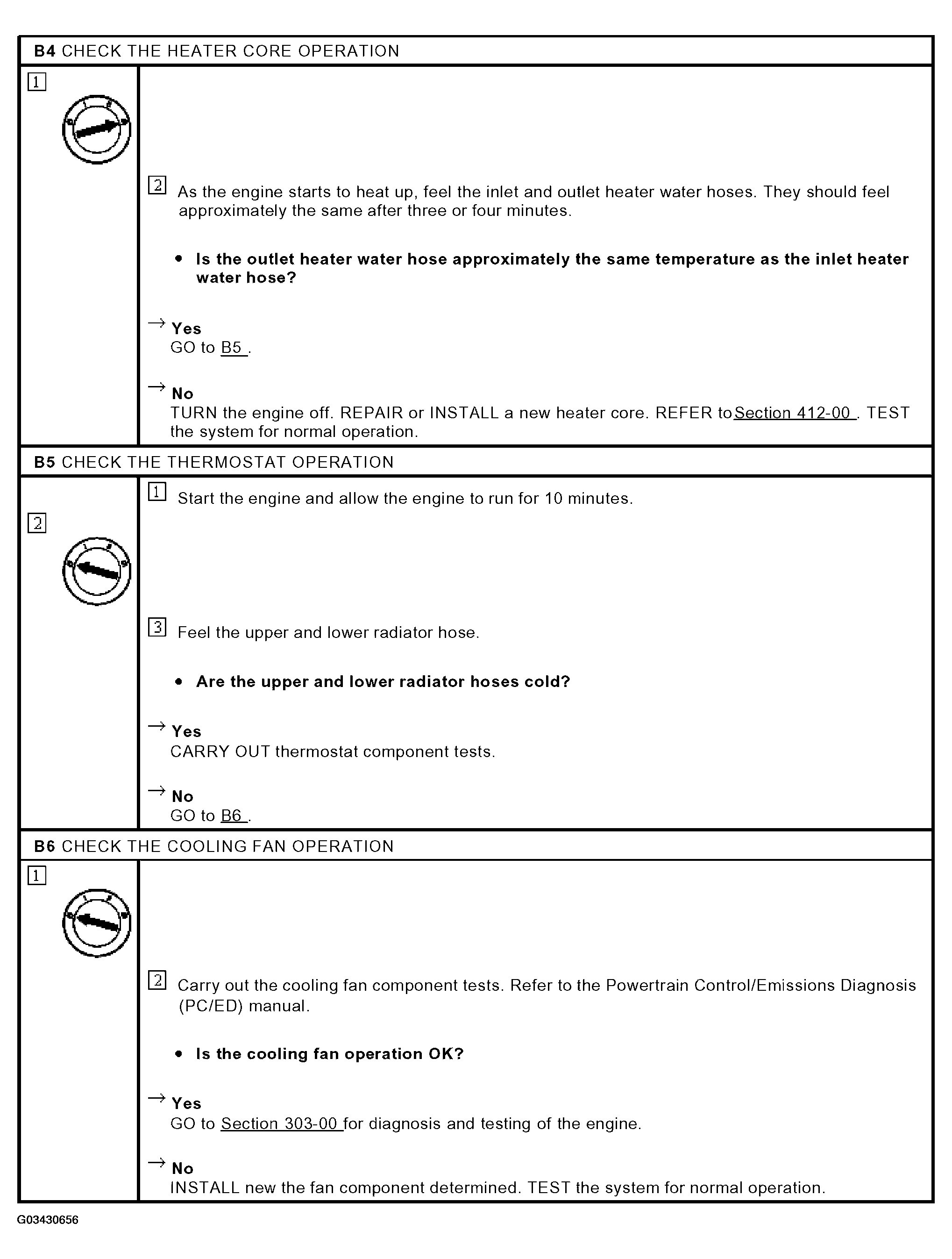

Fig 2: Pinpoint Test B: Engine Overheats Chart (Steps B4-B6)
