Valve - Valve Spring, Valve Spring Retainer and Valve Stem Seal: Installation
WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the air pressure from the spark plug adapter and inspect the valve for damage. Rotate the valve and check the valve for eccentric movement during rotation. For additional information refer to ENGINE SYSTEM-GENERAL INFORMATION .
- If the condition of the valve is satisfactory, apply Super Premium SAE 5W-20 Motor Oil or equivalent meeting Ford specification WSS-M2C153-H to the valve stem and hold the valve closed. Apply the air pressure within the cylinder.

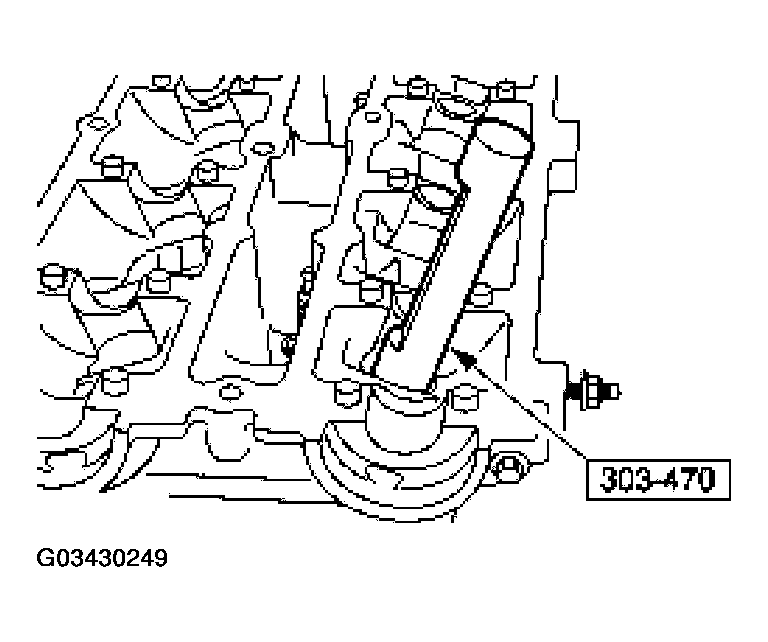

- Lubricate valve and guides with Super Premium SAE 5W-20 Motor Oil or equivalent meeting Ford specification WSSM2C153- H and using the special tool install the valve stem seals onto the cylinder head valve guides.
- Place the valve spring in position over the valve and install the valve spring retainer.

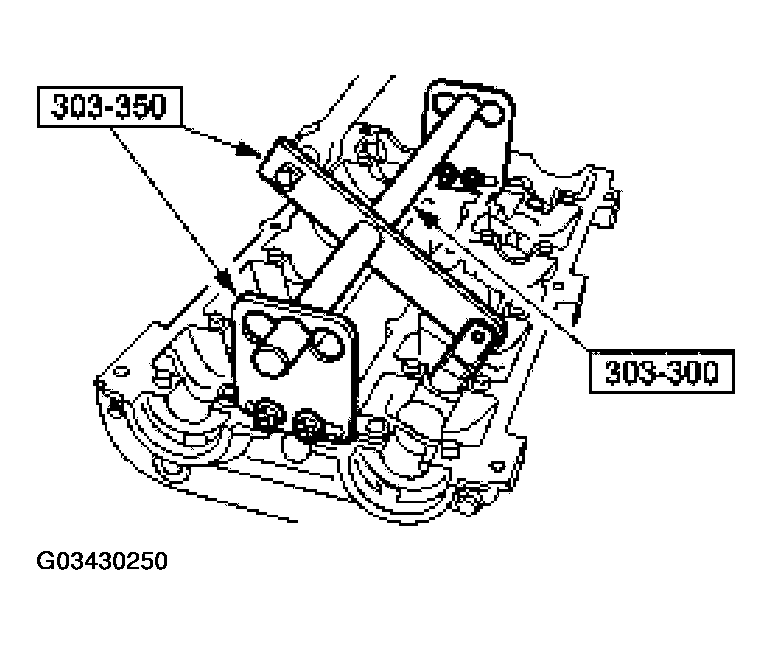

- Using the special tools compress the valve spring and install the valve spring retainer keys.
- Remove the special tools.
- Remove the air pressure.
- Remove the air line adapter.
- Install the valve tappets. For additional information, refer to VALVE TAPPETS .
- Install the spark plugs.
CAUTION:
If the valve has been damaged, removal will be necessary for repair.
