Timing Drive Components - Timing Sprockets: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing belt. For additional information, refer to TIMING BELT .
  2. Lower the vehicle.
    3. CAUTION: The camshaft alignment tool is not recommended to hold the camshafts in place when removing or tightening the bolts. Damage to camshaft may result.

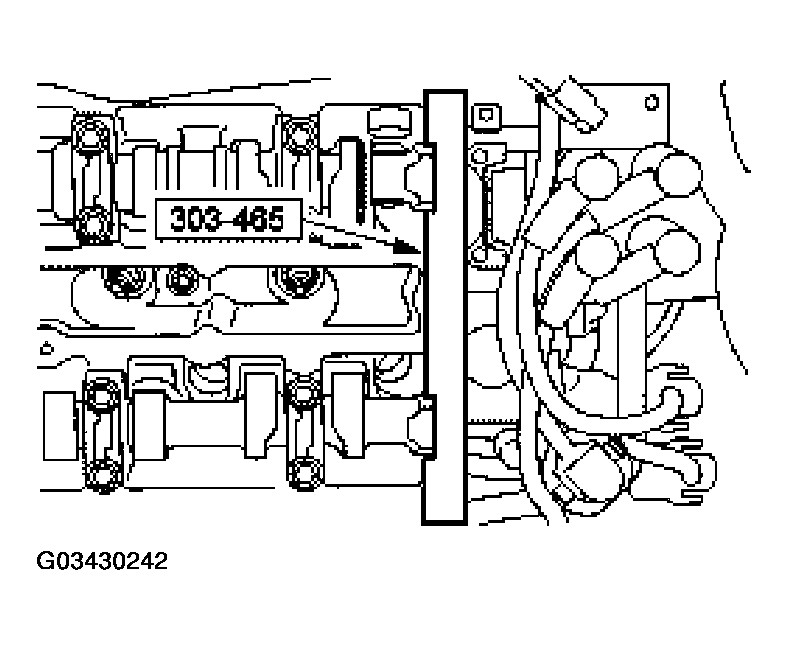

    Fig 1: Removing Special Tool
    G03430242Courtesy of FORD MOTOR CO.
  3. Remove the special tool.
    4. NOTE: Use an open-end wrench to keep each camshaft from rotating.

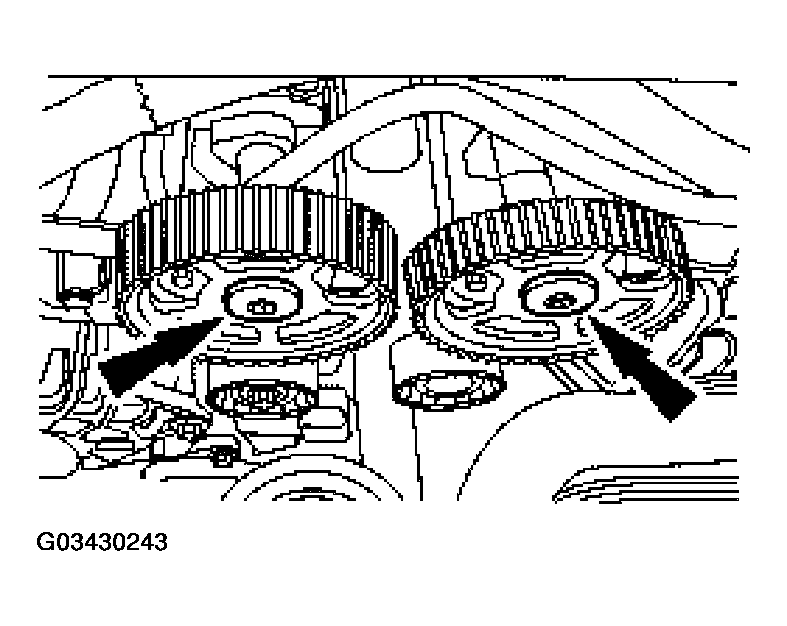

    Fig 2: Removing Bolts & Camshaft Timing Sprockets
    G03430243Courtesy of FORD MOTOR CO.
  4. Remove the bolts and the camshaft timing sprockets.
