Timing Drive Components - Timing Sprockets: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the camshaft sprockets onto the camshafts and loosely install the bolts.

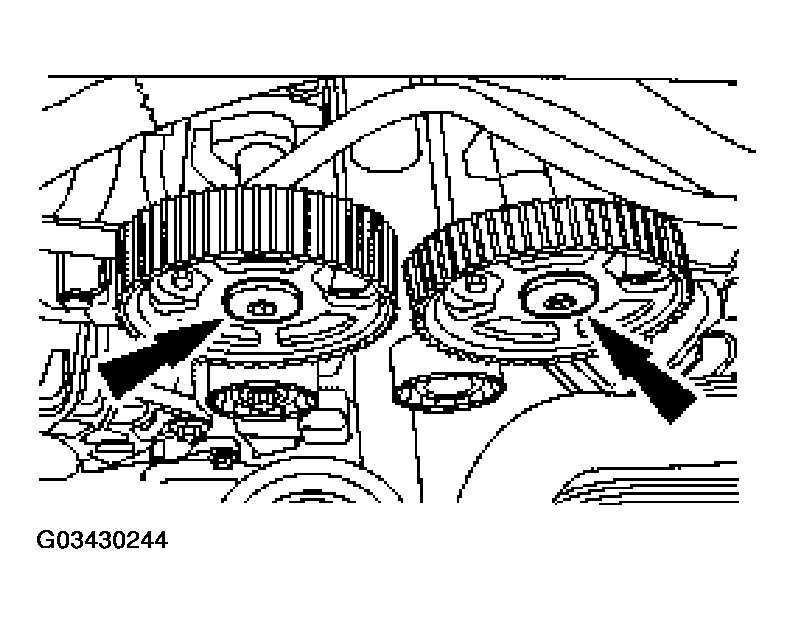

    Fig 1: Installing Camshaft Sprockets Onto Camshafts
    G03430244Courtesy of FORD MOTOR CO.
  2. Install the special tool.

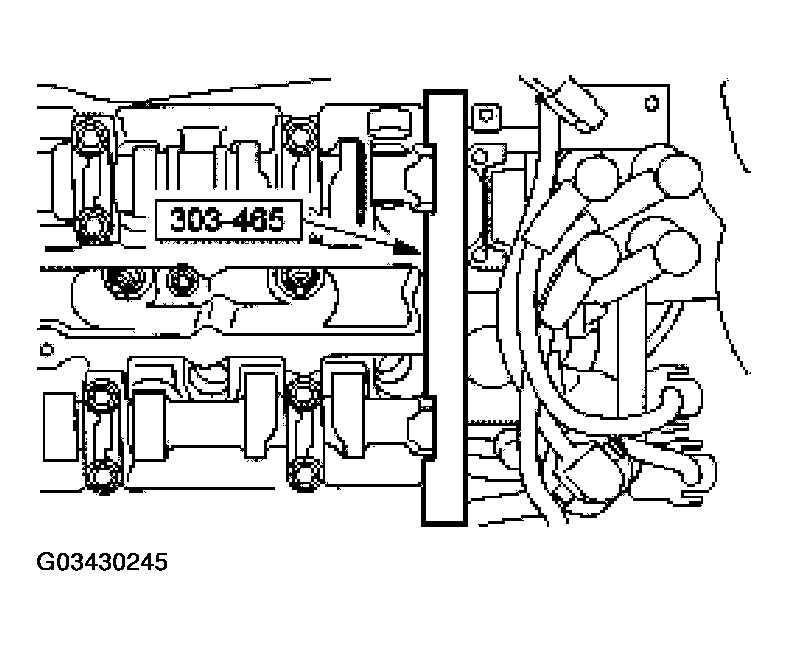

    Fig 2: Installing Special Tool
    G03430245Courtesy of FORD MOTOR CO.
  3. Raise the vehicle.
  4. Install the timing belt. For additional information, refer to TIMING BELT .
