Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
  3. Remove the bolts and the lower timing belt cover.

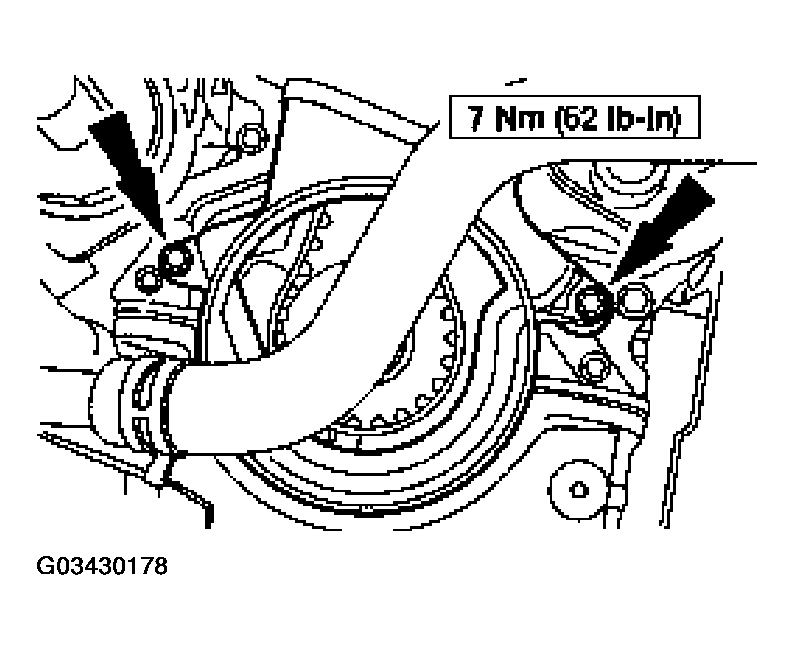

    Fig 1: Removing Bolts & Lower Timing Belt Cover
    G03430178Courtesy of FORD MOTOR CO.
  4. Lower the vehicle.
  5. Install the special tool.

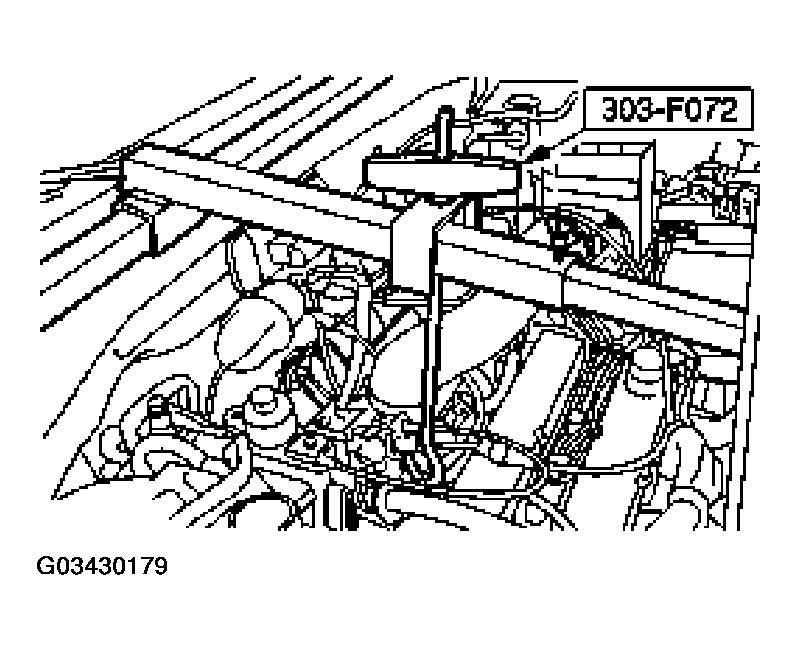

    Fig 2: Installing Engine Support
    G03430179Courtesy of FORD MOTOR CO.
  6. Remove the ground strap.

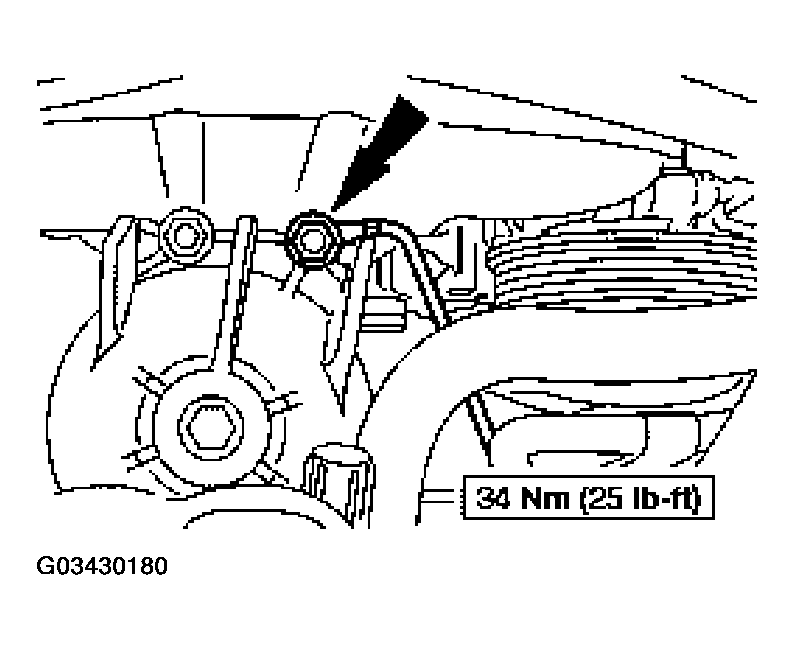

    Fig 3: Removing Ground Strap
    G03430180Courtesy of FORD MOTOR CO.
  7. Remove the engine mount upper bracket.

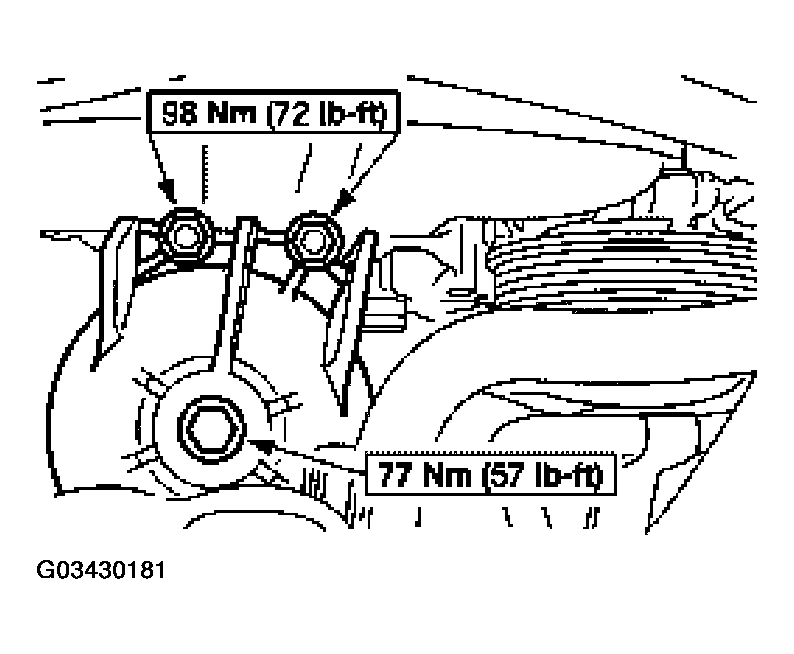

    Fig 4: Removing Engine Mount Upper Bracket
    G03430181Courtesy of FORD MOTOR CO.
  8. Remove the studs.

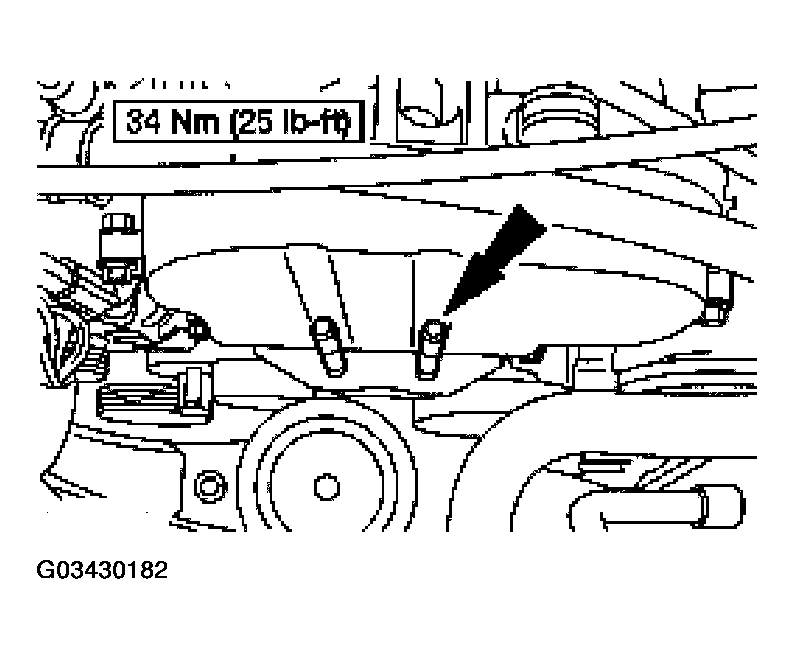

    Fig 5: Removing Studs
    G03430182Courtesy of FORD MOTOR CO.
  9. Remove the knock sensor connector.

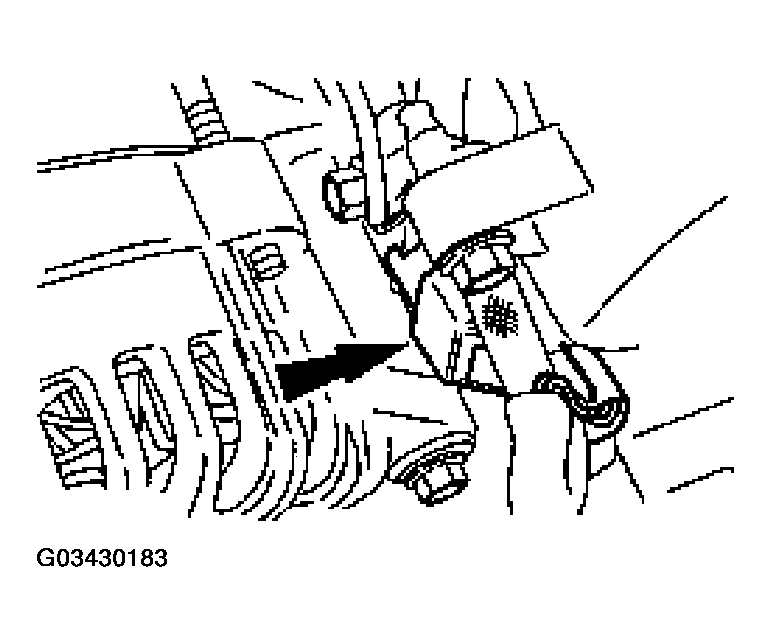

    Fig 6: Removing Knock Sensor Connector
    G03430183Courtesy of FORD MOTOR CO.
  10. Remove the bolts and the upper timing belt cover.

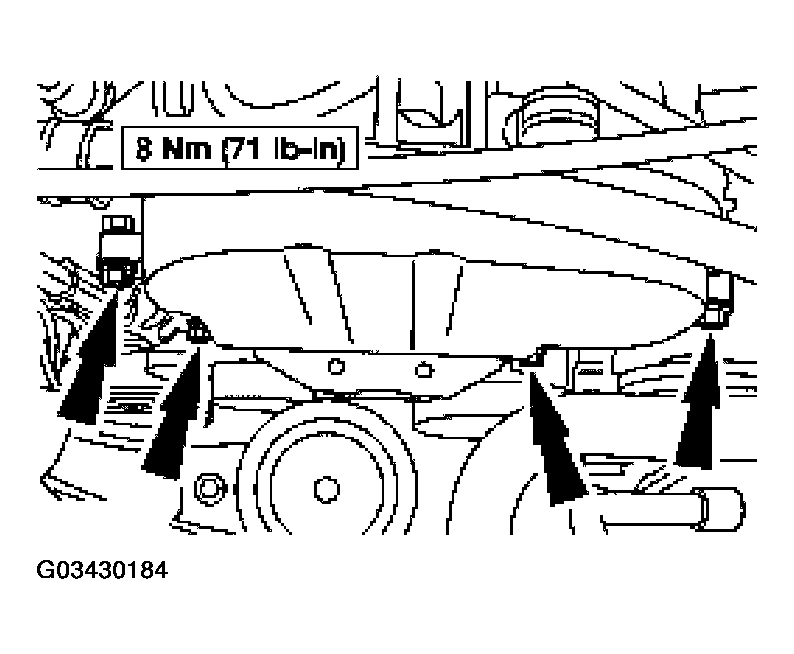

    Fig 7: Removing Bolts & Upper Timing Belt Cover
    G03430184Courtesy of FORD MOTOR CO.
  11. To install, reverse the removal procedure.
