Oil Pump: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Remove the timing belt. For additional information, refer to TIMING BELT .
Remove the oil pump screen and pickup tube. For additional information, refer to OIL PUMP SCREEN AND PICKUP TUBE .
Remove the crankshaft sprocket and the timing belt guide.

Fig 1: Removing Crankshaft Sprocket
Courtesy of FORD MOTOR CO.

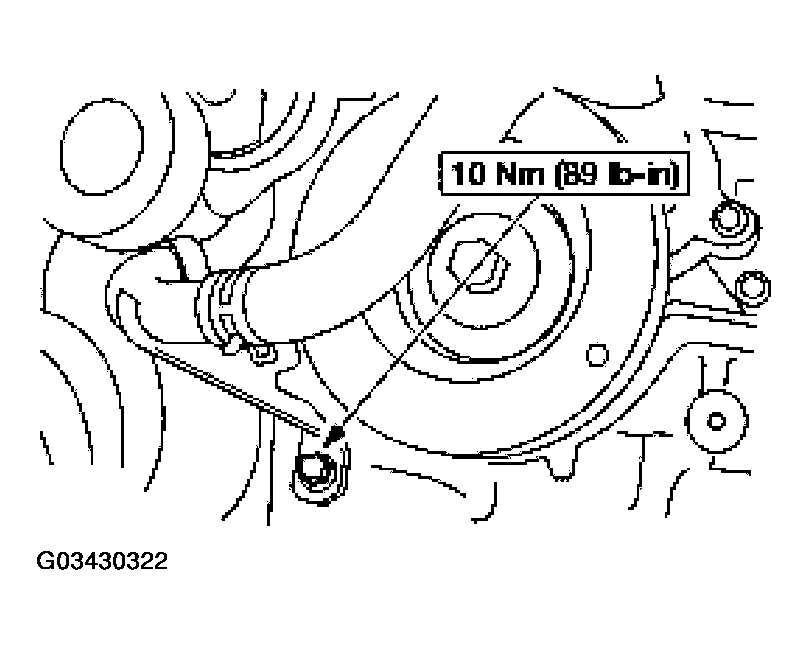

Remove the coolant tube bracket bolt.

Fig 2: Removing Coolant Line Bracket Bolt
Courtesy of FORD MOTOR CO.
Remove the bolts and position the A/C compressor aside.

Fig 3: Removing A/C compressor Bolts
Courtesy of FORD MOTOR CO.
Remove the lower A/C bracket bolts.

Fig 4: Removing Lower A/C Bracket Bolts
Courtesy of FORD MOTOR CO.

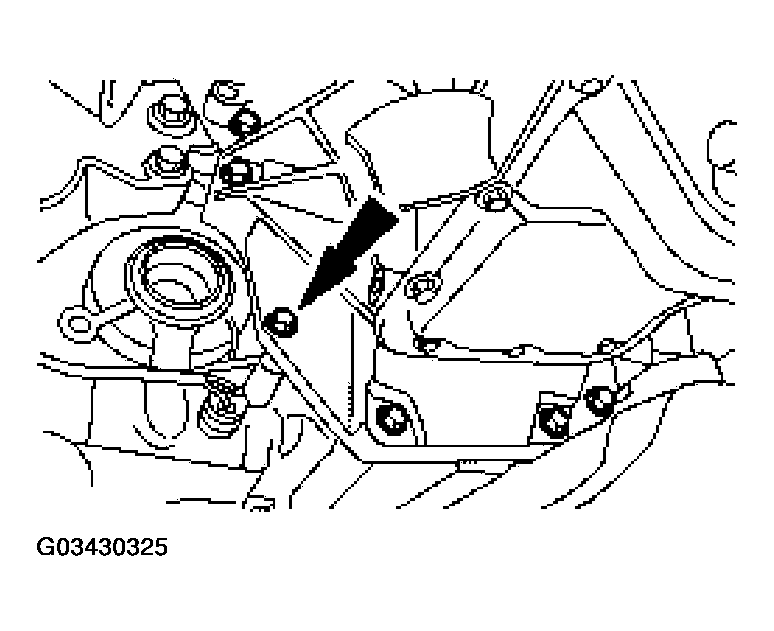

Remove the six lower crankcase-to-transmission bolts.

Fig 5: Removing Lower Crankcase-To-Transmission
Courtesy of FORD MOTOR CO.

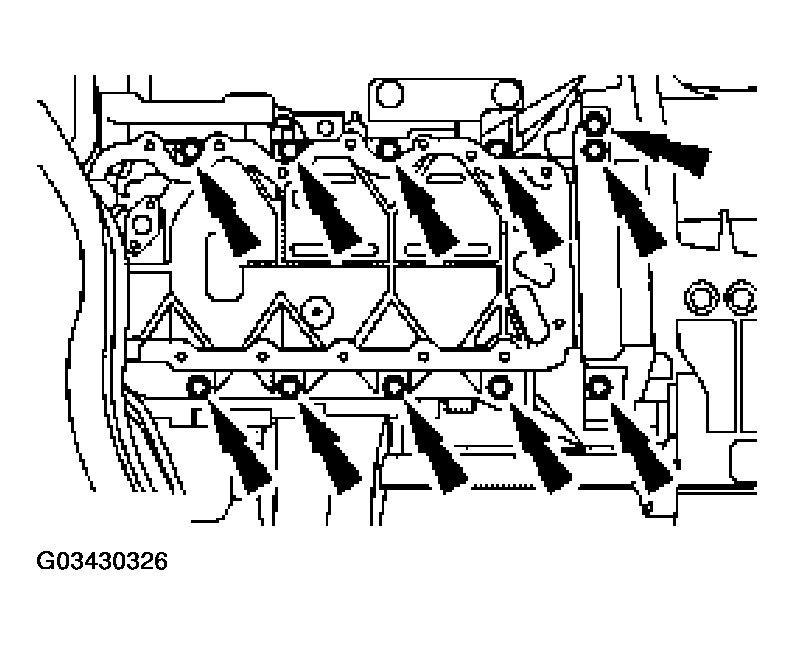

Remove the lower crankcase-to-upper crankcase bolts and the lower crankcase.

Fig 6: Removing Lower Crankcase-To-Upper Crankcase
Courtesy of FORD MOTOR CO.

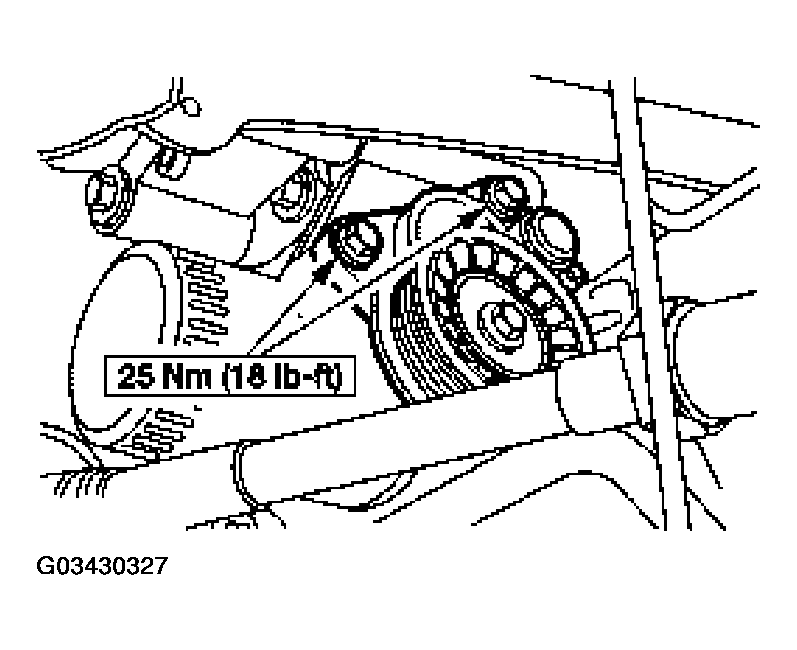

Remove the bolts and the accessory drive belt tensioner.

Fig 7: Removing Bolts & Accessory Drive Belt Tensioner
Courtesy of FORD MOTOR CO.
Remove the bolts and the oil pump.

Fig 8: Removing Oil Pump
Courtesy of FORD MOTOR CO.
