Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
    2. NOTE: The halfshaft is removed for clarity.

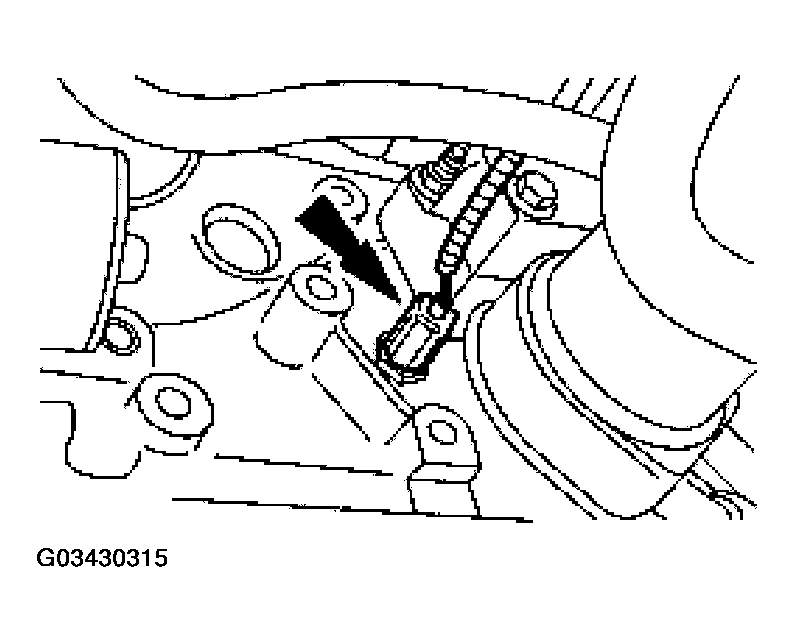

    Fig 1: Disconnecting Oil Pressure Sender Electrical Connector
    G03430315Courtesy of FORD MOTOR CO.
  2. Disconnect the oil pressure sender electrical connector.
  3. Remove the oil pressure sender.
    Fig 2: Removing Oil Pressure Sender
    G03430316Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
