Oil Pan: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the catalytic converter.
  2. Drain the engine oil.
    • Install the drain plug.

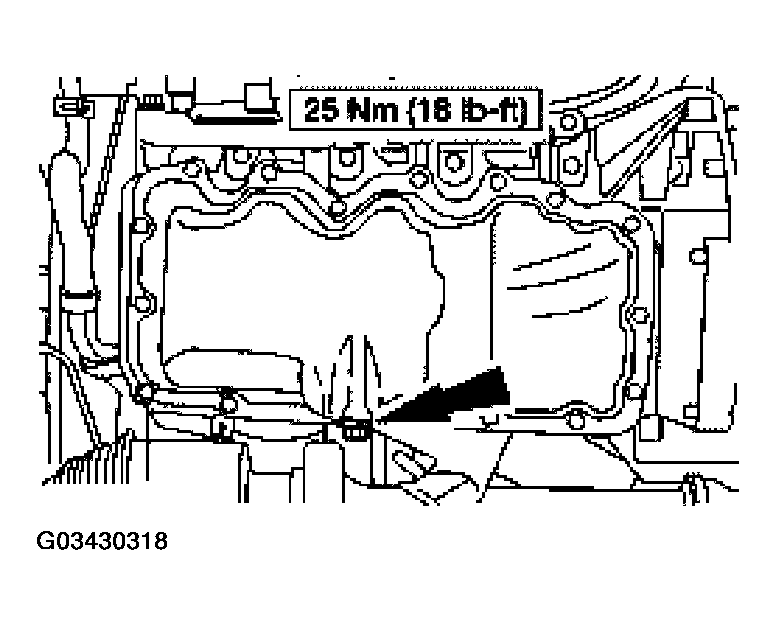

    Fig 1: Locating Drain Plug
    G03430318Courtesy of FORD MOTOR CO.
  3. Remove the 17 bolts and the oil pan.

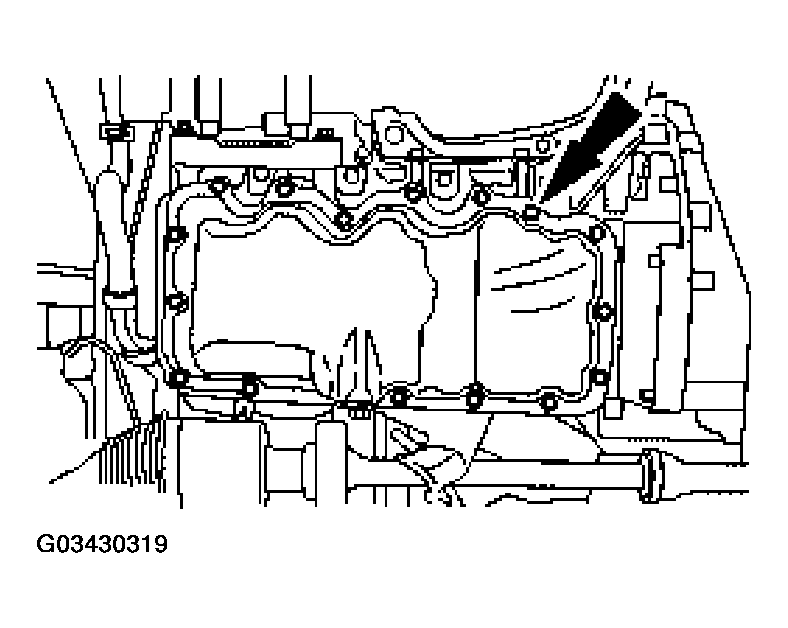

    Fig 2: Removing Oil Pan
    G03430319Courtesy of FORD MOTOR CO.
