In-Vehicle Repair: Flywheel: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clutch.
  2. Remove the bolts and the flywheel.

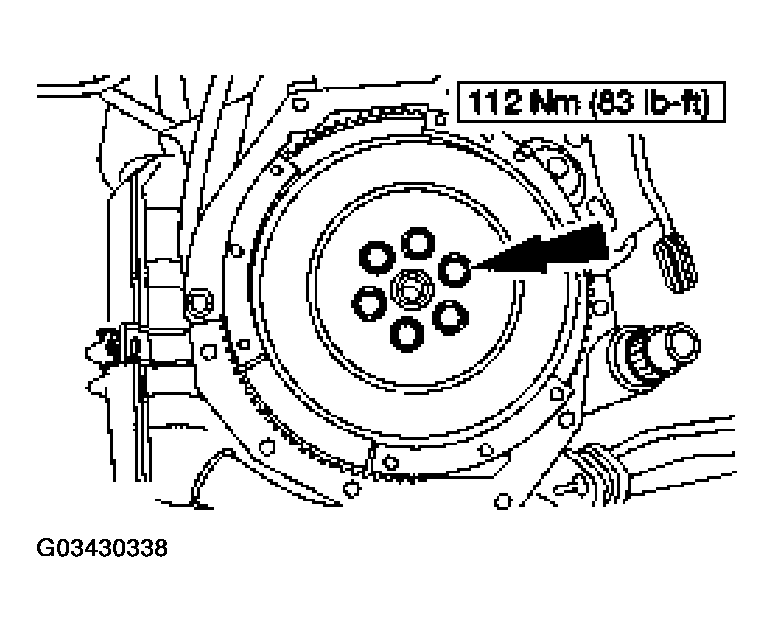

    Fig 1: Removing Flywheel
    G03430338Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
