Exhaust Manifold: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the catalytic converter.
  2. Lower the vehicle.
  3. Remove the oil level indicator and tube bracket bolt.

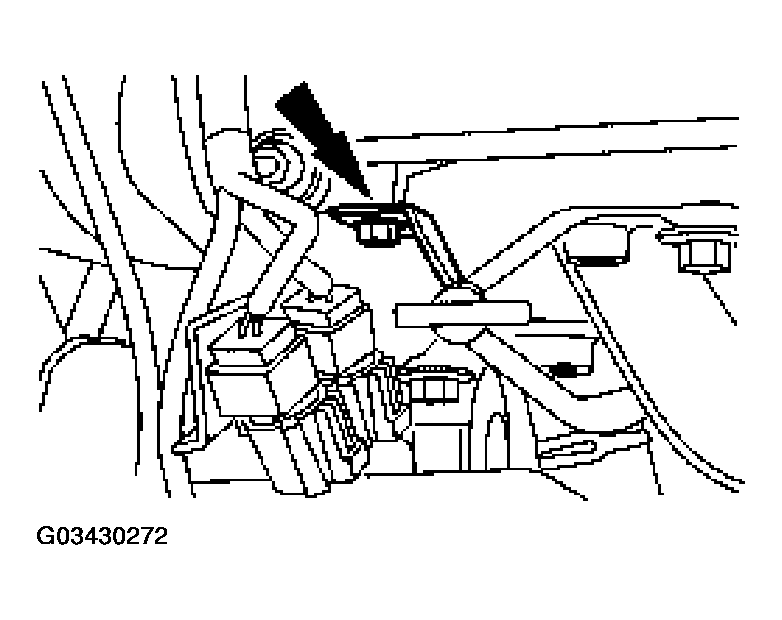

    Fig 1: Removing Oil Level Indicator
    G03430272Courtesy of FORD MOTOR CO.
    4. CAUTION: Do not work on the aluminum engine components until the engine is cold or damage may occur.

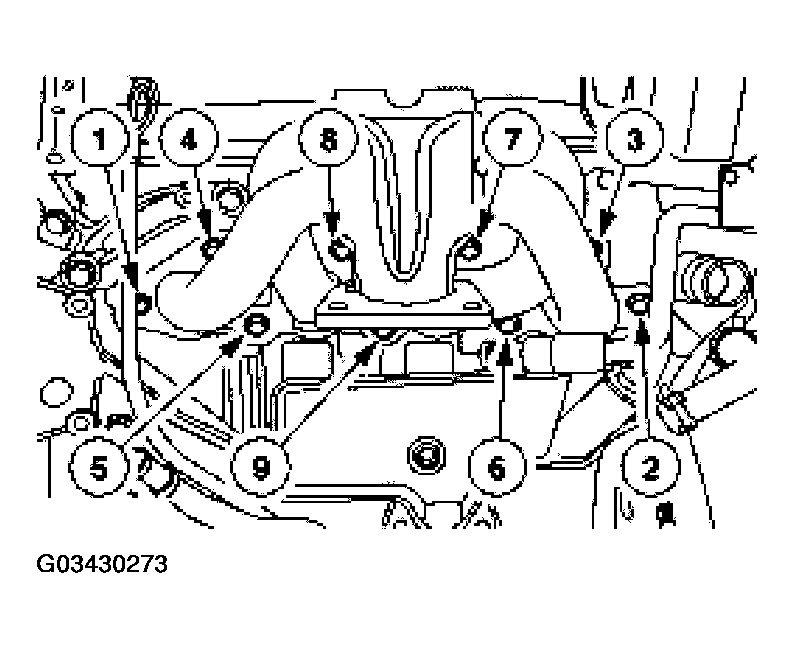

    Fig 2: Removing Exhaust Manifold Nuts & Bolts
    G03430273Courtesy of FORD MOTOR CO.
  4. Remove the six bolts and three nuts and remove the exhaust manifold.
    • Discard the gasket.
